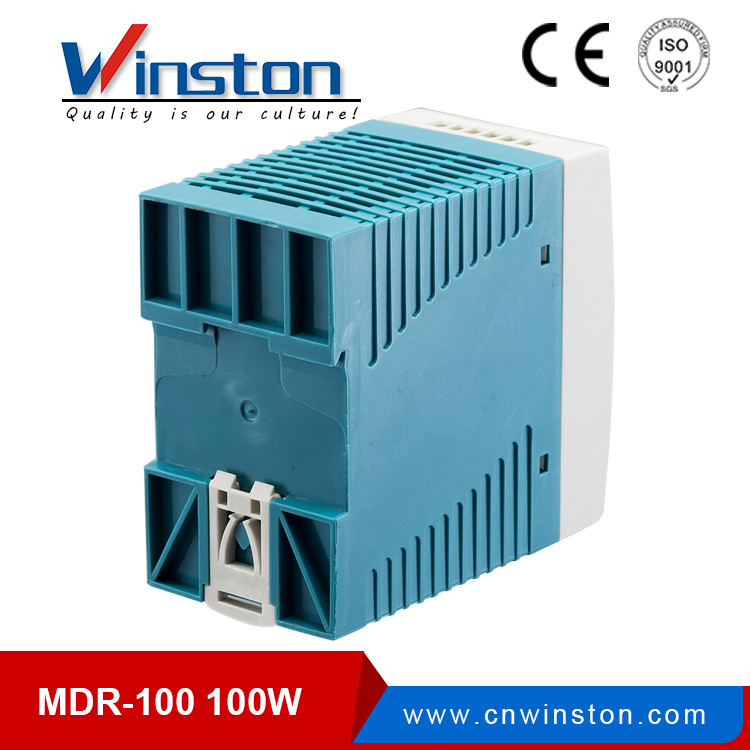

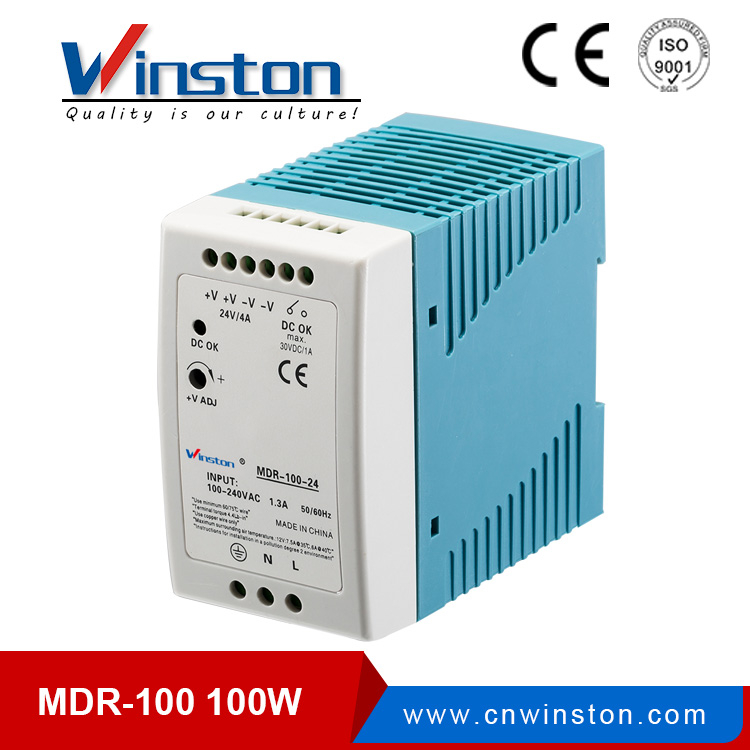

MDR-100-24
WINSTON
100% full load burn-in test
Small valume and easy to installtion
High efficiency, long life and high reliability
CE & Rohs certifications
2Years warranty
| Model | MDR-100-12 | MDR-100-24 | MDR-100-48 | |
| DC voltage | 12V | 24V | 48V | |
| output | Current range | 0~7.55A | 0~4A | 0~2A |
| Rated power | 90W | 96W | 96W | |
| Ripple&noise | 120mvp-p | 150mvp-p | 200mvp-p | |
| DCvoltage ADJ.range | ±10% | ±10% | ±10% | |
| Voltage range | 85~264VAC,120~370VDC 47-63Hz | |||
| Efficiency | 83% | 86% | 87% | |
| Inrush current | Cold start current 30A/115VAC, 60A/230VAC | |||
| Over load | 105%~150% cut off the output,automatic recovery | |||
| Over voltage | 120%-140% shut down O/P voltage, re-power on to recover | |||
| environment | Working temperature | -10°C~+50°C | ||
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | ||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||
| others | Dimension | 55*90*100mm (L*W*H) | ||
| Weight/packing | 0.42kg/00pcs/14kg/45.5*32.5*23cm | |||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | |||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
100% full load burn-in test
Small valume and easy to installtion
High efficiency, long life and high reliability
CE & Rohs certifications
2Years warranty
| Model | MDR-100-12 | MDR-100-24 | MDR-100-48 | |
| DC voltage | 12V | 24V | 48V | |
| output | Current range | 0~7.55A | 0~4A | 0~2A |
| Rated power | 90W | 96W | 96W | |
| Ripple&noise | 120mvp-p | 150mvp-p | 200mvp-p | |
| DCvoltage ADJ.range | ±10% | ±10% | ±10% | |
| Voltage range | 85~264VAC,120~370VDC 47-63Hz | |||
| Efficiency | 83% | 86% | 87% | |
| Inrush current | Cold start current 30A/115VAC, 60A/230VAC | |||
| Over load | 105%~150% cut off the output,automatic recovery | |||
| Over voltage | 120%-140% shut down O/P voltage, re-power on to recover | |||
| environment | Working temperature | -10°C~+50°C | ||
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | ||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||
| others | Dimension | 55*90*100mm (L*W*H) | ||
| Weight/packing | 0.42kg/00pcs/14kg/45.5*32.5*23cm | |||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | |||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
