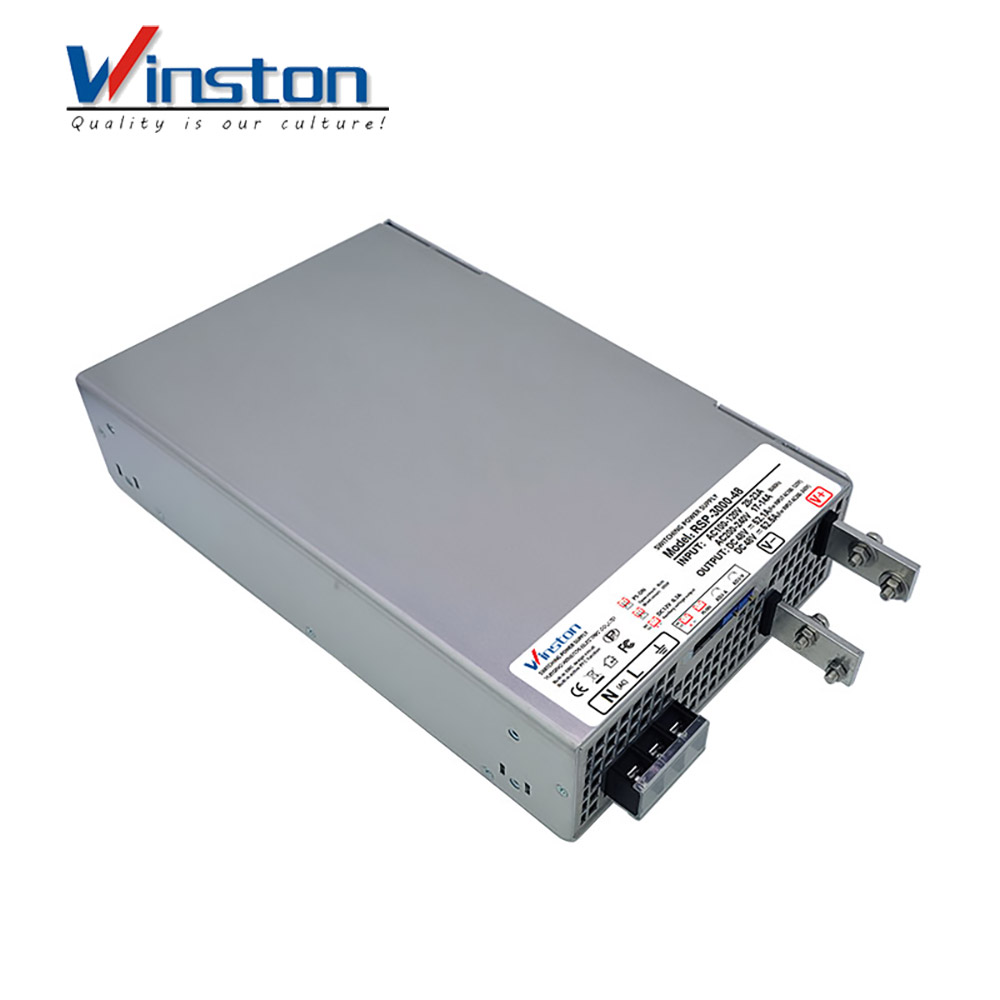

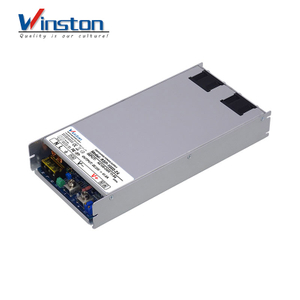

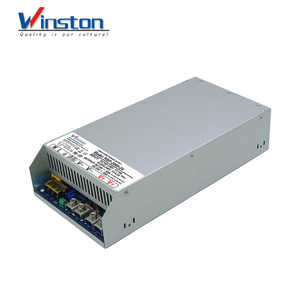

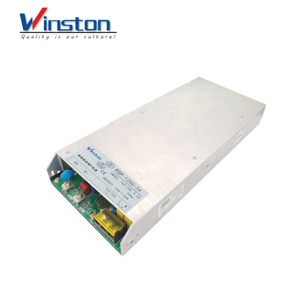

RSP-3000 24V High Quality Enclosed Type Flat Panel Industrial Switching Power Supply with PFC Function

Share to:

RSP-3000 24V High Quality Enclosed Type Flat Panel Industrial Switching Power Supply with PFC Function

Availability:

Quantity:



Inquire Add to Basket

Model:
RSP-3000
Brand:
Winston

RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70C. Moreover, RSP-30oo provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

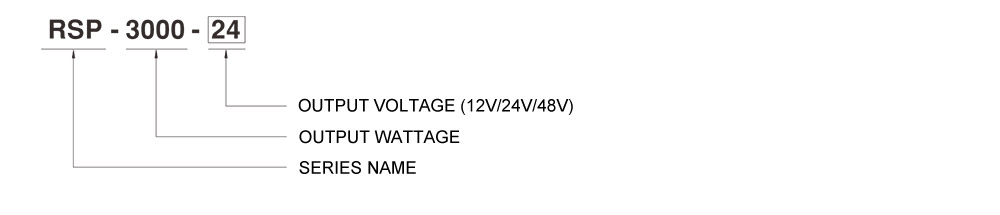

Model Explanation

Features

• AC input 180-264VAC

• Built-in active PFC function

• High efficiency up to 91.5%

• Forced air cooling by built-in DC fan

• Output voltage programmable

• Active current sharing up to 9000W (2+1)

• Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal

• Protections: Short circuit/Overload / Over voltage /Over temperature

• Optional conformal coating

Application

• Factory control or automation apparatus

• Test and measurement instrument

• Laser related machine

• Burn-in facility

• RF application

Model number	RSP-3000-24	RSP-3000-36	RSP-3000-48	RSP-3000-60	RSP-3000-72	RSP-3000-110
DC output voltage	24V	36V	48V	60V	72V	110V
AC220V Rated output current	125A	83.3A	62.5A	50A	41.6A	27A
AC220V Rated output power	3000W	3000W	3000W	3000W	3000W	3000W
AC110V Rated output current	104A	69.4A	52A	41.6A	34.7A	22.7A
AC110V Rated output power	2500W	2500W	2500W	2500W	2500W	2500W
Efficiency (at full load)	89%	91.2%	91.8%	92%	92%	93.4%
Ripple (maximum value)	160mv	200mv	220mv	260mv	280mv	330mv
	Equipped with active PFC power factor correction function
Input voltage	Communication: 110 - 240V (Wide voltage automatic adaptation, no need for switching)
Power factor (PF value)	PF value >=0.98/110VAC (at 100% full load)
	PF value >=0.97/220VAC (at 100% full load)
AC input current	3000W rated output. 16A when input is AC 220V 2500W rated output, 26A when input is AC 110V Explanation: When the input voltage is 110V, the power drops to 2500W.
Idle power consumption without load	10W
Output overload protection	The overload protection mode is a constant current limiting mode. The output current value is locked and does not increase. The output voltage decreases as the load increases.
Overheat protection	When the temperature of the PWM transistor heat sink reaches 85°C ± 5%, the output voltage is turned off. Once the temperature drops to 75°C ± 5%, it automatically resumes.
Output short-circuit protection	Self-recovery type, resumes output after short circuit is removed
Output overvoltage protection	The overvoltage point is 130% of the nominal voltage. Once overvoltage occurs, the protection mechanism will lock and will not automatically recover. It needs to be powered off and then powered on again.
Insulation characteristics	Input terminal and output terminal: 3000VAC Input terminal and casing terminal: 1500VAC
Environmental working temperature	-30℃ to +35℃. If the temperature exceeds this range, the load must be reduced for use.
Heat dissipation method	Temperature-controlled automatic speed-regulating fan (blows inward, with 2 fans)
Weight	3.3 kg (excluding accessories and packaging)

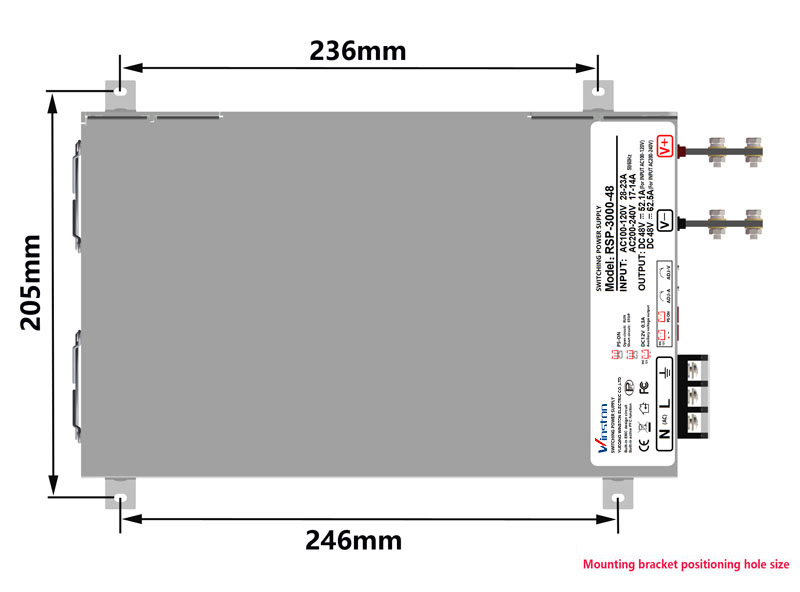

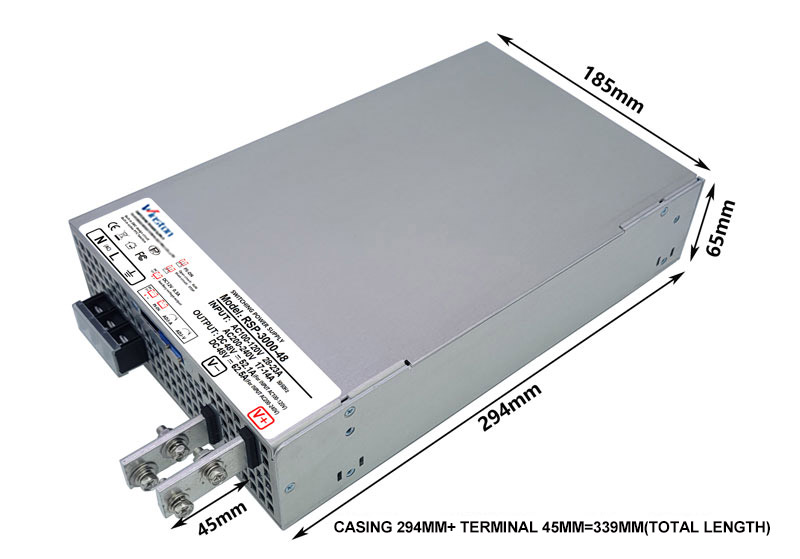

Case size	29418565mm The length of the copper terminals for the positive and negative poles is 45mm, and the total length of the entire machine is 339mm.
