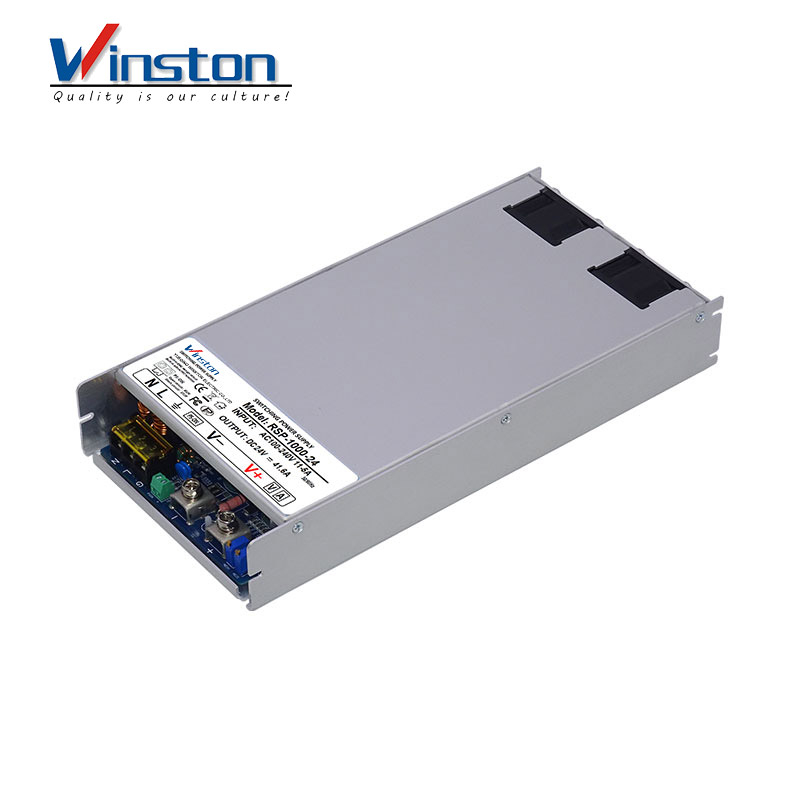

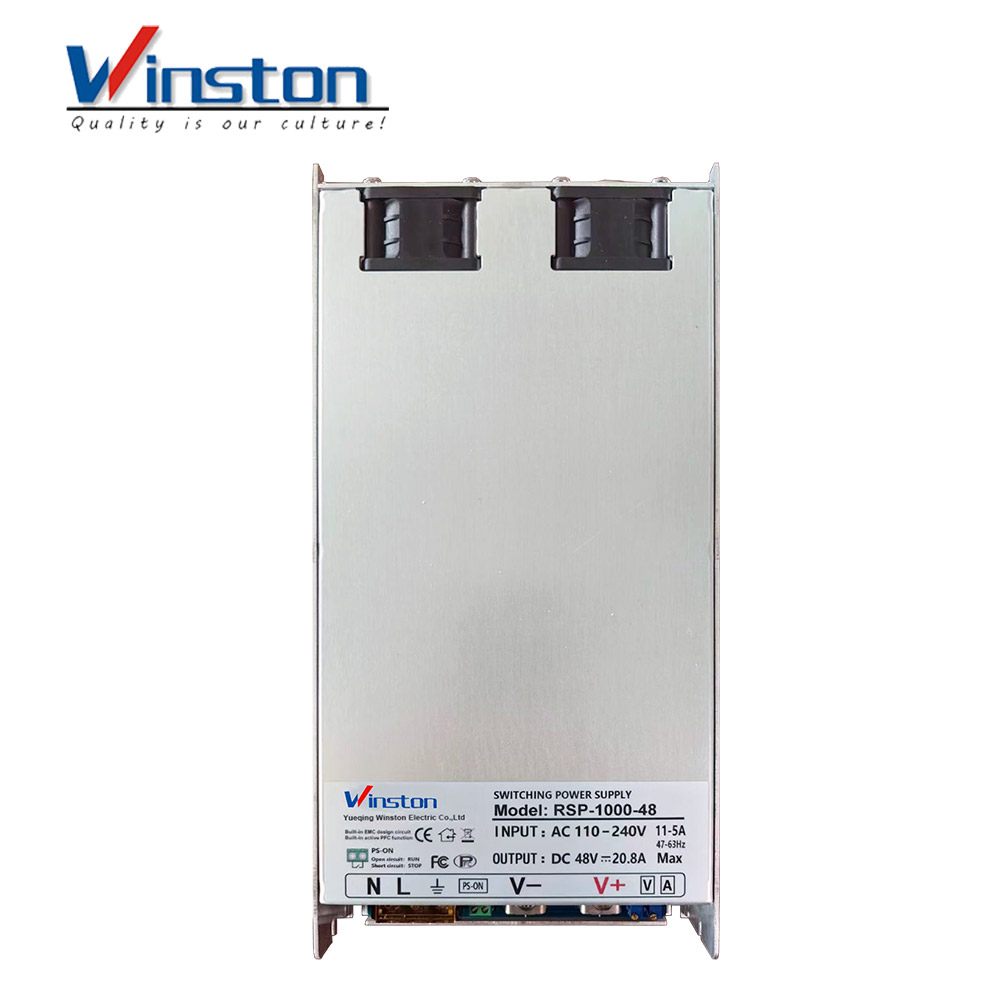

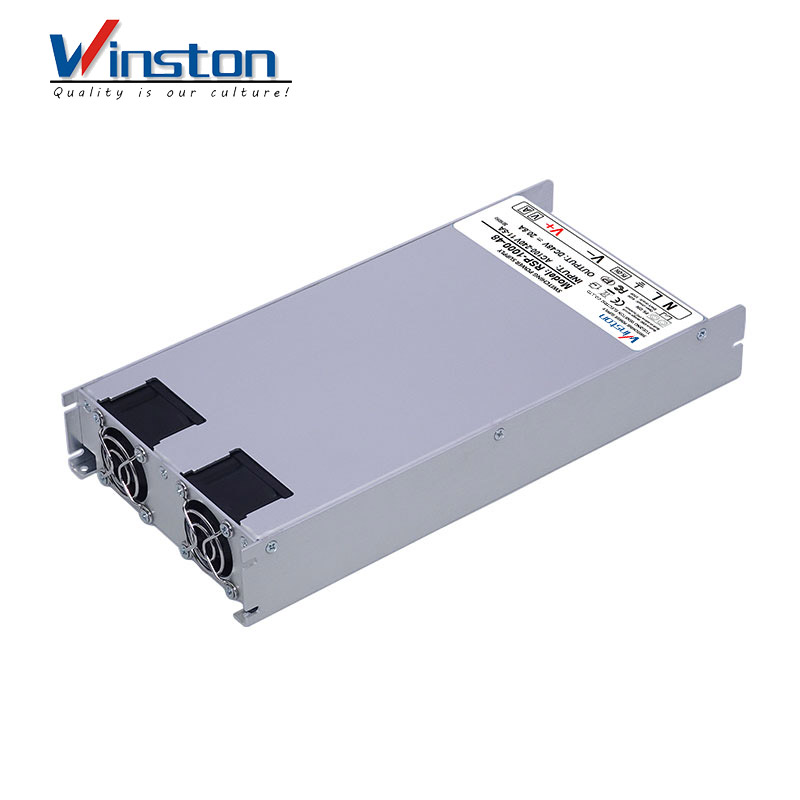

RSP-1000 24V 36V 48V 1000W DIN Rail Flat Panel Switching Power Supply

RSP-1000 is a 1KW single output enclosed type AC/DC power supply with 1U low profile. This series operates for 90-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 60C. Moreover, RSP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Model Explanation

Features

• Universal AC input /Full range

• Built-in active PFC function

• High efficiency up to 90%

• Forced air cooling by built-in DC fan

• Output voltage programmable

• Active current sharing up to 4000W (3+1)

• Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal

• Protections: Short circuit/Overload / Over voltage /Over temperature

• Optional conformal coating

Application

• Factory control or automation apparatus

• Test and measurement instrument

• Laser related machine

• Burn-in facility

• RF application

Model number	RSP-1000-24	RSP-1000-36	RSP-1000-48	RSP-1000-60	RSP-1000-72	RSP-1000-110	RSP-1000-150
DC output voltage	24V	36V	48V	60V	72V	110V	150V
Rated output current	41.7A	27.8A	20.8A	16.7A	14A	9.1A	6.7A
Rated output power	1000W	1000W	1000W	1002W	1008W	1001W	1005W
Efficiency (at full load)	88.3%	88.7%	89.5%	89.7%	90%	90%	91%
Voltage regulation range	17-25V	25-36V	33-48V	41-60V	50-74V	74-110V	102-150V
	Equipped with active PFC power factor correction function
Input voltage	Communication: 110 - 240V (Wide voltage automatic adaptation, no need for switching)
Power factor (PF value)	PF value: 20.997/110VAC (at 100% full load)
	PF value: 20.993/220VAC (at 100% full load)
Fan shutdown protection	Either of the two cooling fans is not rotating or the fan is not detected. The power supply has no output voltage and the machine does not start.
Output overload protection	The overload protection mode is a constant current limiting mode. The output current value is locked and does not increase.
Overheat protection	When the internal temperature of the power supply is too high, the overheating protection is activated, the output voltage is shut off, and the temperature drops.
Output short-circuit protection	Short-term instantaneous short circuit: Power off, and it will automatically recover after 3 seconds.
	Long-term continuous short circuit: Power off. Every 3 seconds, it will automatically restart once (burp mode)
Output overvoltage protection	The overvoltage point is 130% of the nominal voltage. After overvoltage, the protection lock is activated and will not automatically recover. It needs to be powered off and then powered on again to restore.
Input under-voltage protection	If the AC input voltage is lower than 96V, the power supply cannot be used.
Heat dissipation method	Temperature-controlled automatic speed-regulating fan (blows inward, with 2 fans)
Weight	1.4 kg (excluding accessories and packaging)
Case size	26513141mm

RSP-1000尺寸

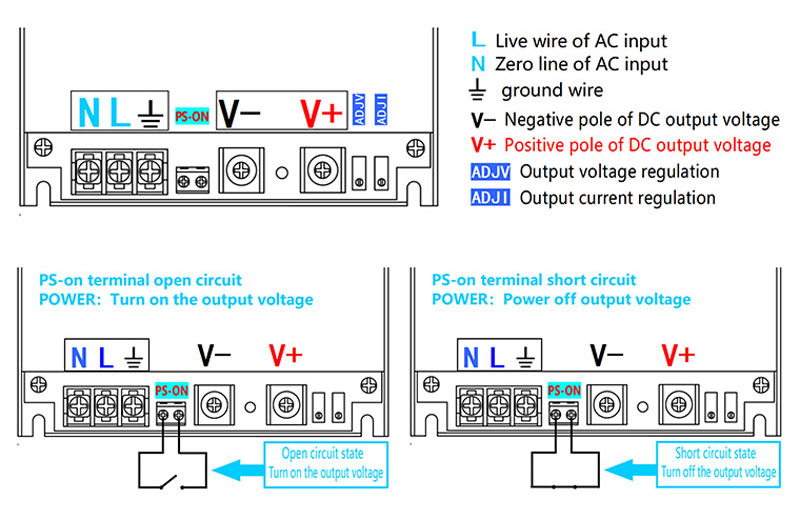

RSP-1000接线图
