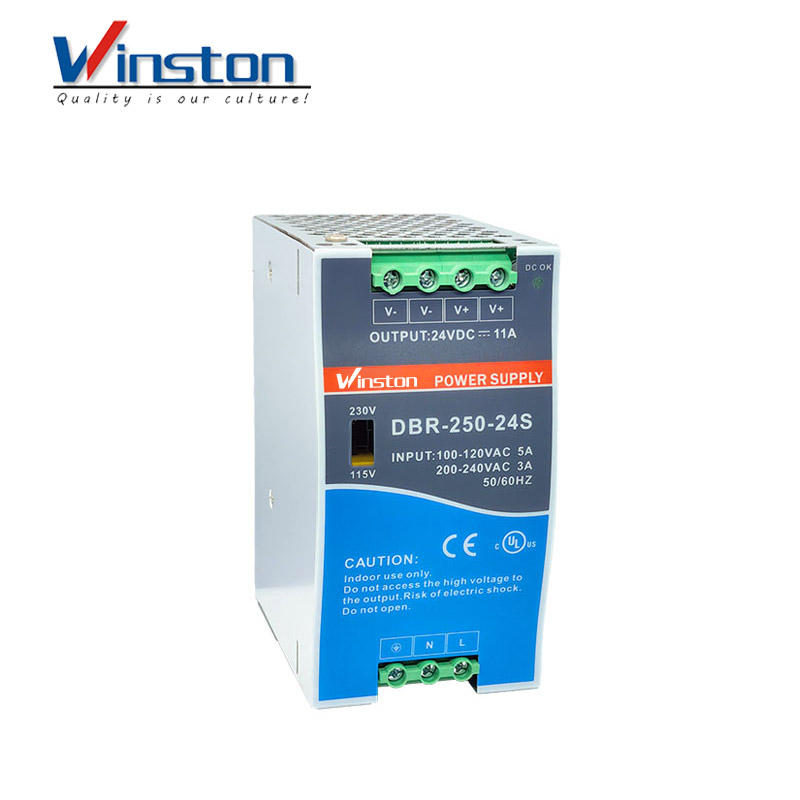

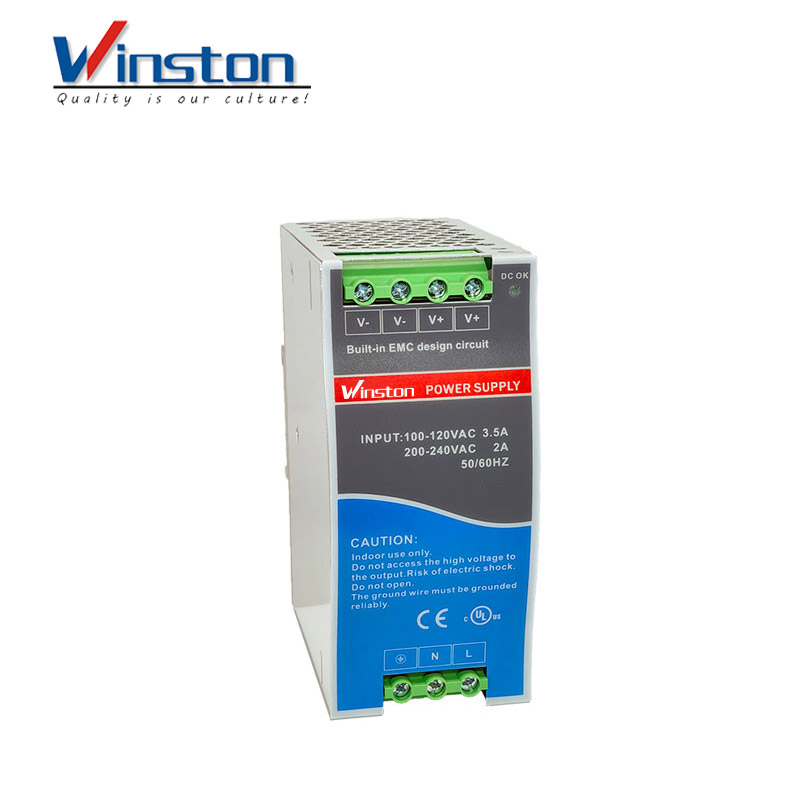

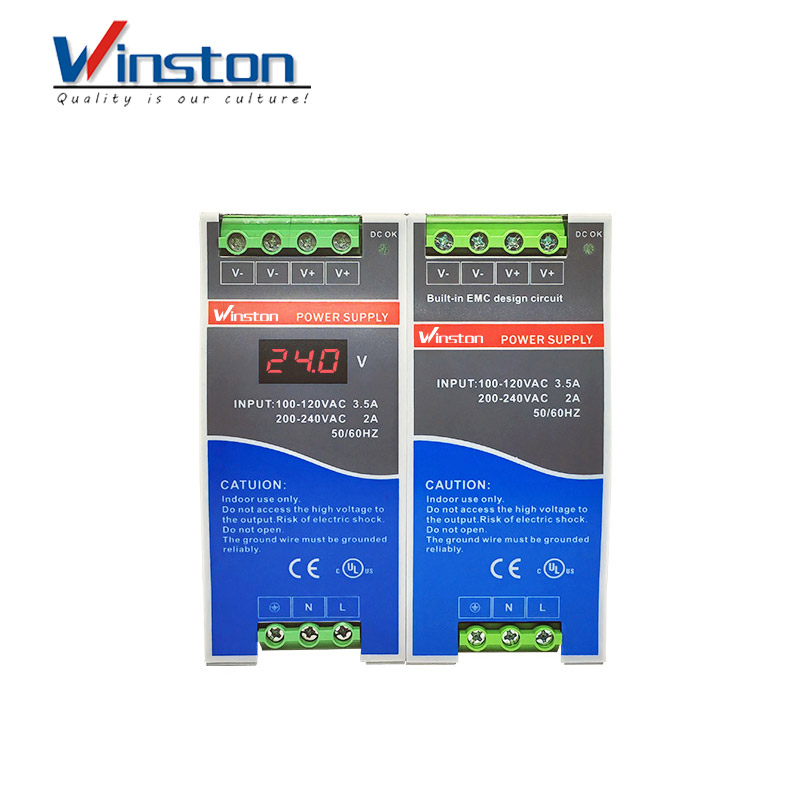

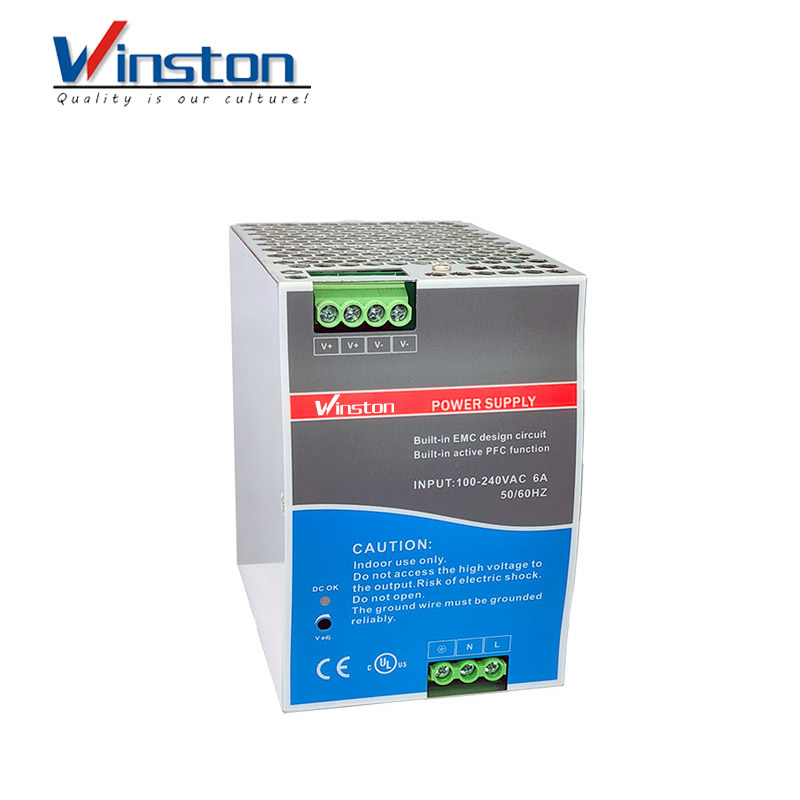

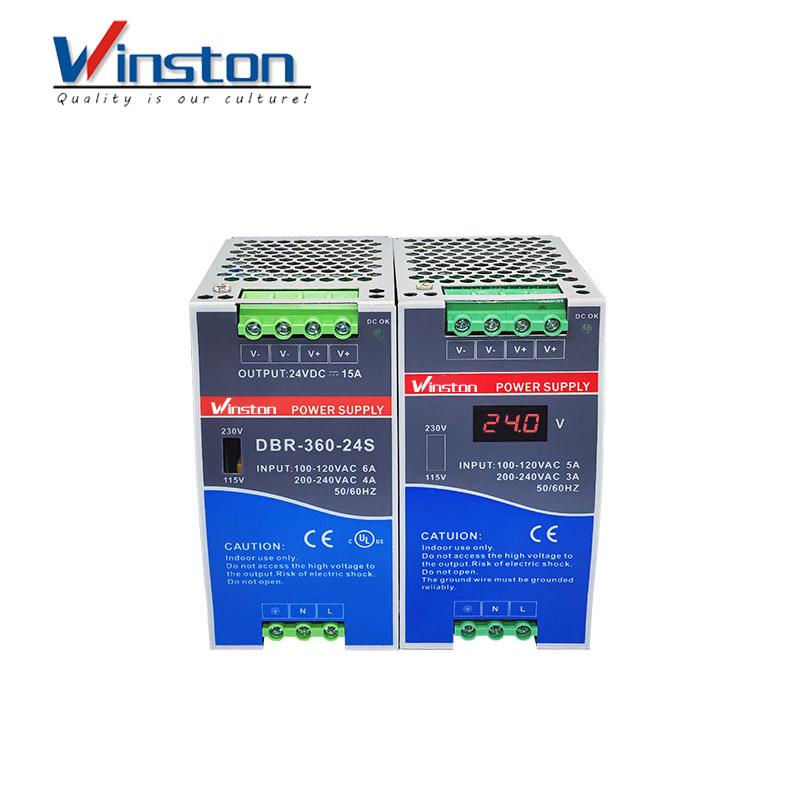

DBR Series
Winston
Power | 75W | 100W | 120W | 160W | 200W | 250W | 360W | 500W |
Shell material | Aluminum+iron | |||||||
AC input | 100-240VAC 50/60HZ | 115/230VAC± 15% selectable by switch 50/60HZ | 100-240VAC 50/60HZ | |||||
Electric shock | Cold start,<30A at 220VAC | |||||||
Input leakage current | <0.5mA | |||||||
Output voltage | See each model for details (Rated output voltage ± 10% adjustable) | |||||||
Voltage regulation | <±1% | |||||||
Load Regulation | <± 1% | |||||||
Monitor parameters | Non-Standard, Output voltage | |||||||
Overload protection | 115%~150%, Automatic recovery | |||||||
Overvoltage protection | 115%~140%, Automatic recovery | |||||||
Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down | |||||||
Cooling method | Free air cooling | Auto fan | Free air cooling | |||||
Withstand pressure | I/P-O/P:3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA, 1min | |||||||
Working environment | -10- +50С (100%load) ; Humidity 10% -90%, No condensation. | |||||||
Storage environment | -10- +80℃; Humidity 5%~95%, No condensation. | |||||||
Safety standard EMC | CE-EN60950,UL508,UL60950,TUV-60950 | |||||||
EMC standard | EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 | |||||||
Design life | Room temperature 25 hours at 100,000 hours | |||||||

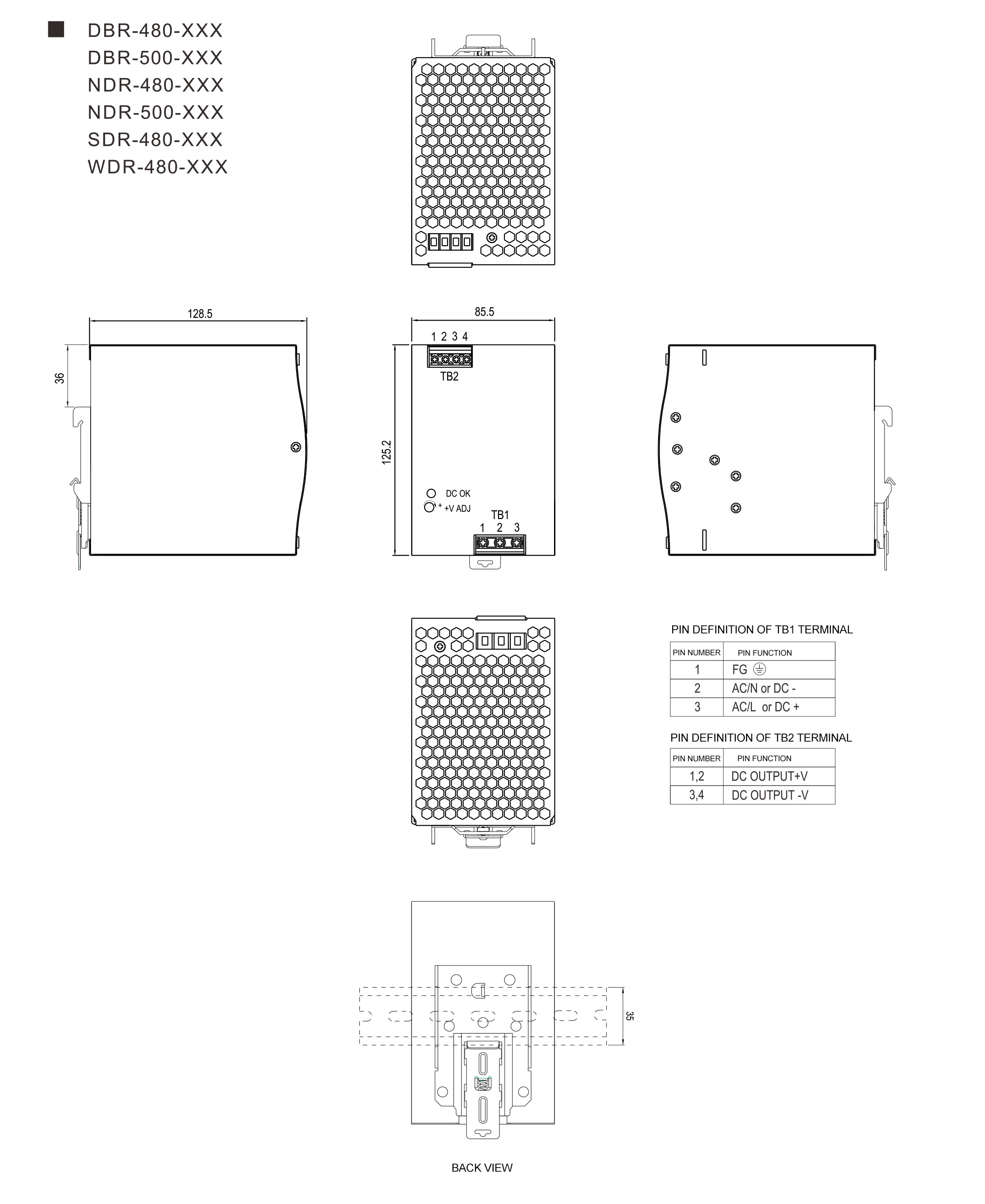

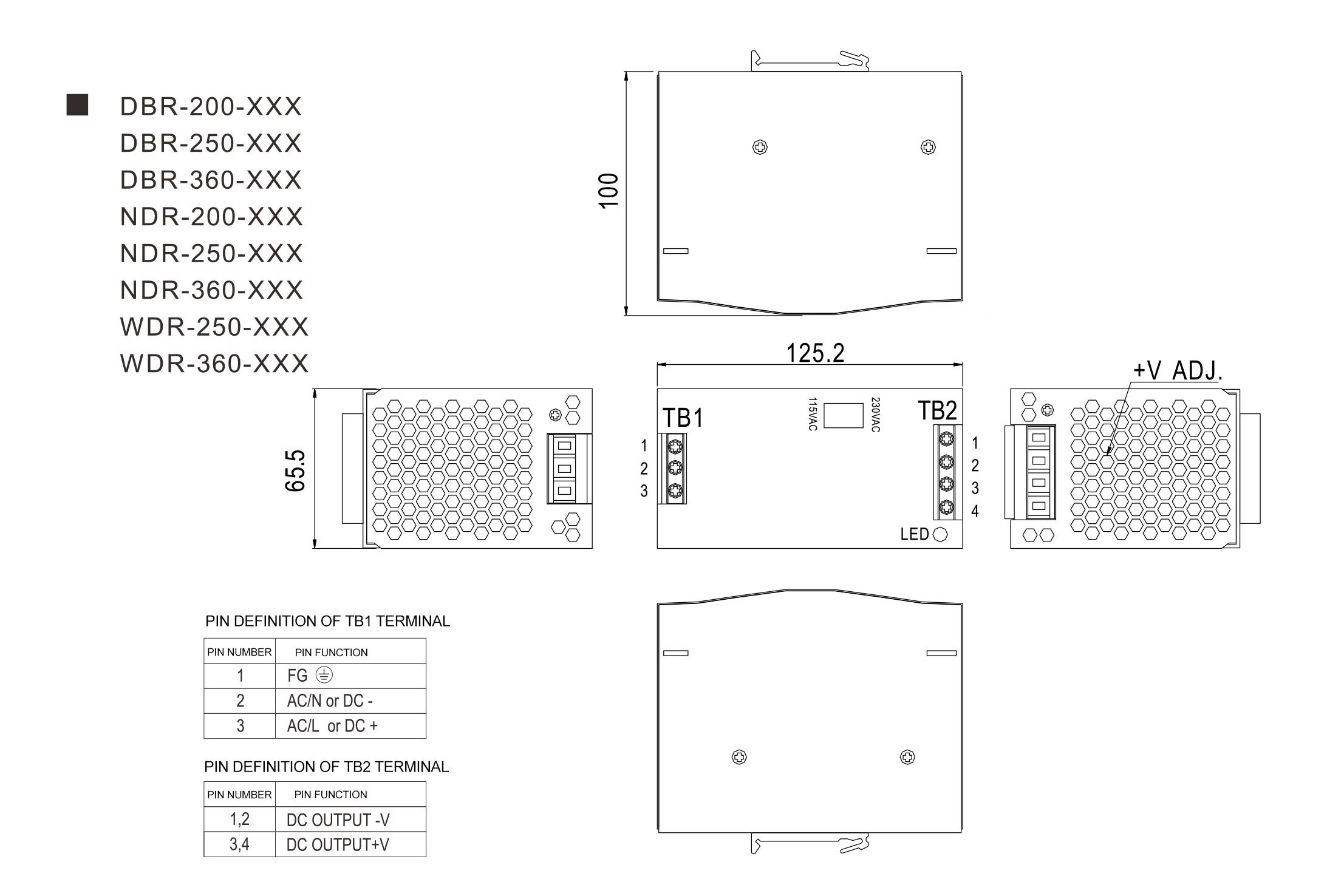

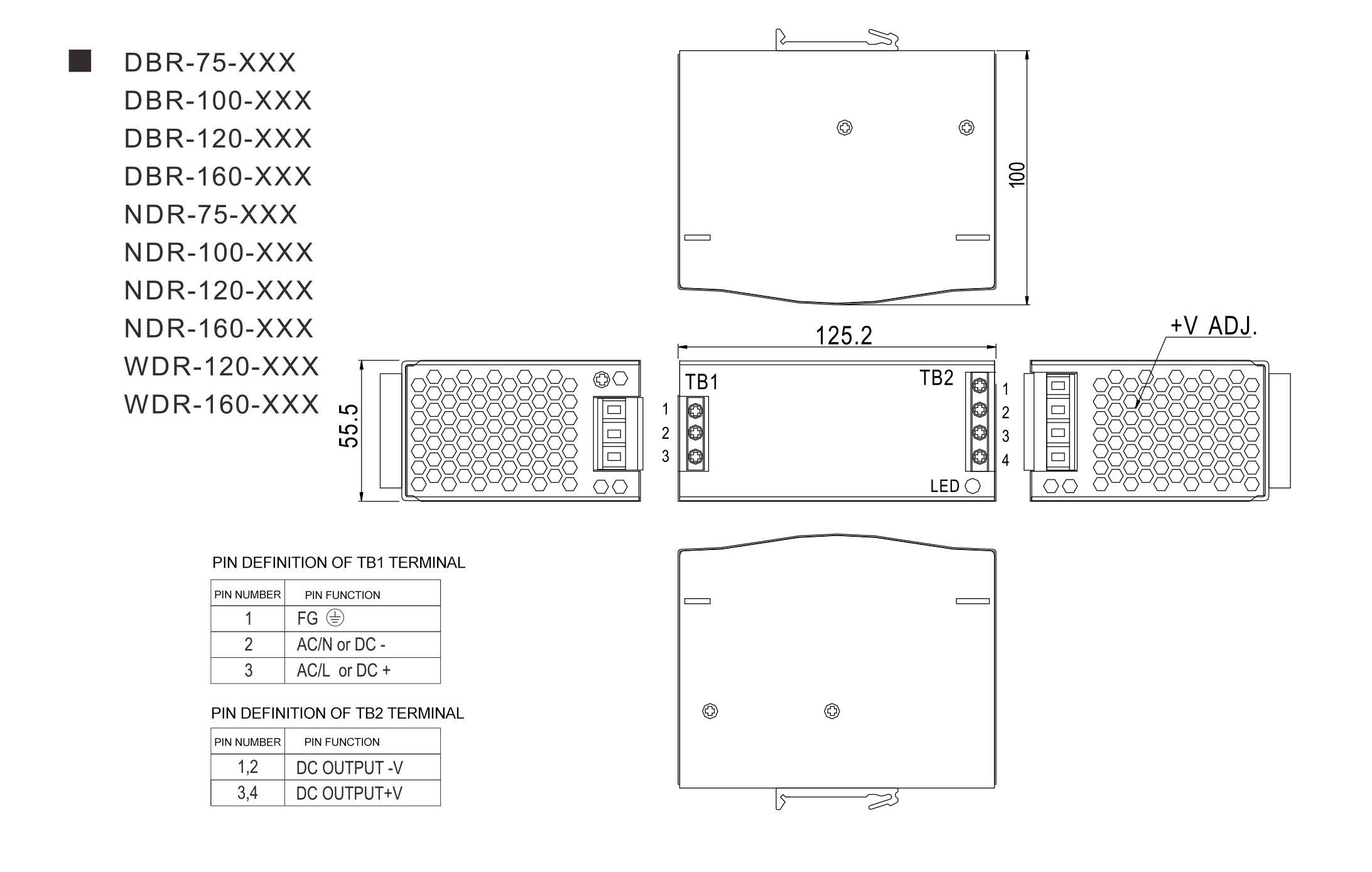

Dimensions | 56 × 125 × 100mm | 65 × 125 × 100mm | 86*125*129mm |
Power | 75W | 100W | 120W | 160W | 200W | 250W | 360W | 500W |
Shell material | Aluminum+iron | |||||||
AC input | 100-240VAC 50/60HZ | 115/230VAC± 15% selectable by switch 50/60HZ | 100-240VAC 50/60HZ | |||||
Electric shock | Cold start,<30A at 220VAC | |||||||
Input leakage current | <0.5mA | |||||||
Output voltage | See each model for details (Rated output voltage ± 10% adjustable) | |||||||
Voltage regulation | <±1% | |||||||
Load Regulation | <± 1% | |||||||
Monitor parameters | Non-Standard, Output voltage | |||||||
Overload protection | 115%~150%, Automatic recovery | |||||||
Overvoltage protection | 115%~140%, Automatic recovery | |||||||
Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down | |||||||
Cooling method | Free air cooling | Auto fan | Free air cooling | |||||
Withstand pressure | I/P-O/P:3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA, 1min | |||||||
Working environment | -10- +50С (100%load) ; Humidity 10% -90%, No condensation. | |||||||
Storage environment | -10- +80℃; Humidity 5%~95%, No condensation. | |||||||
Safety standard EMC | CE-EN60950,UL508,UL60950,TUV-60950 | |||||||
EMC standard | EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 | |||||||
Design life | Room temperature 25 hours at 100,000 hours | |||||||
Dimensions | 56 × 125 × 100mm | 65 × 125 × 100mm | 86*125*129mm |
