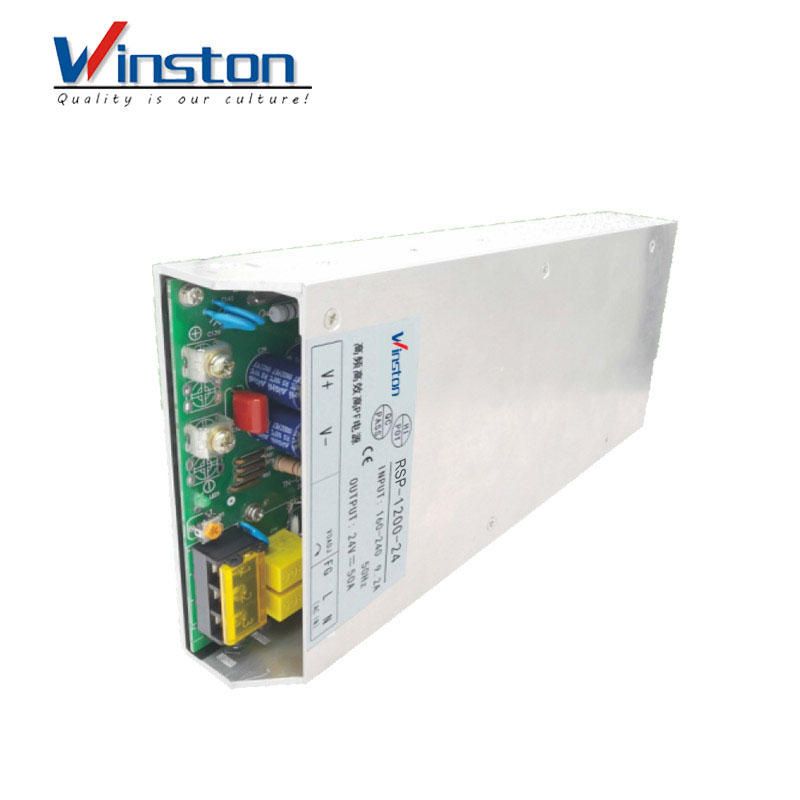

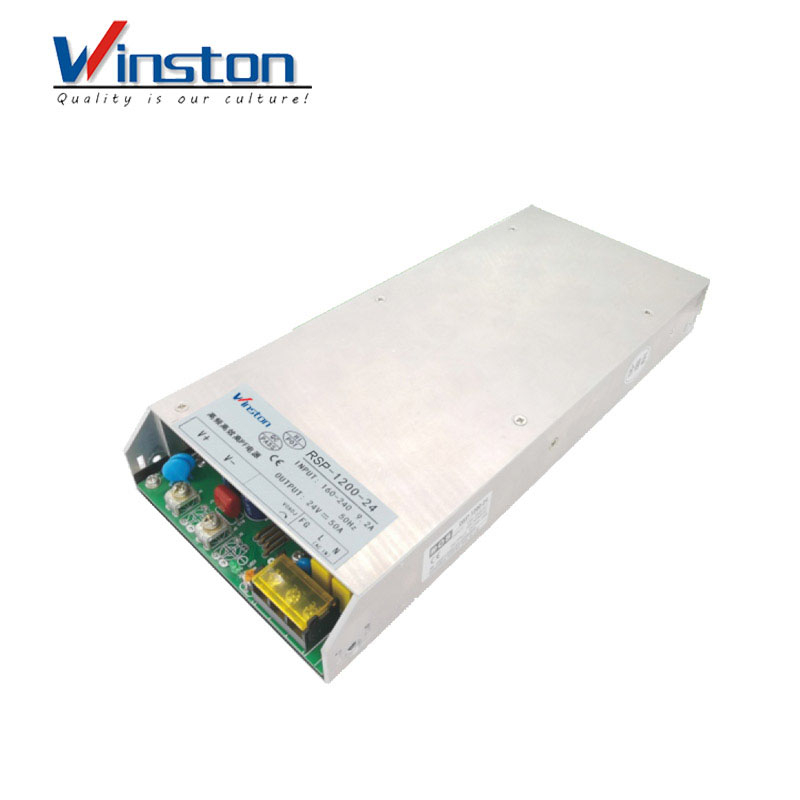

RSP Series Ultra-thin Switching Power Supply

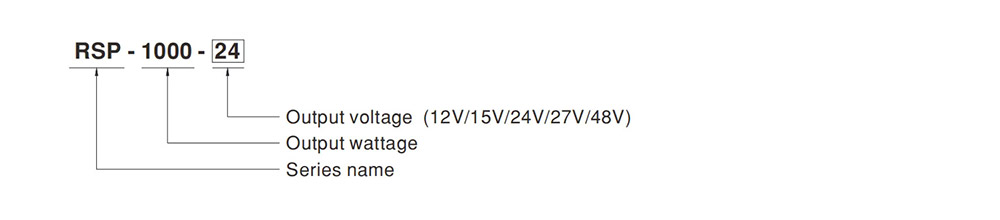

Model Explanation

Features

• Power: 750W-2000W, full power.

• Universal AC input 85-264VAC.

• 1U low profile (41mm height only), high efficiency.

• Built-in active PFC function.

• Built-in EMI filter circuit, ripple and noise smaller.

• DIN rail 35mm mounting, upper and lower terminal wiring.
• Short circuit, overload, overheating, overvoltage protection.

• With suppression of grid surges, anti-lightning function.

• Operating altitude up to 5000 meters.

• Terminals have protective covers for greater safety.

• Withstand 5G vibration test.

• Forced air cooling by built-in DC fan.

• Good price, warranty period of three years.

Power	750W	1000W	1600W	2000W
Shell material	Aluminum+iron
AC input	100 - 240VAC 50/60HZ
Electric shock	Cold start, 40A at 230VAC		Cold start, 50A at 230VAC
Input leakage current	<0.5mA
Output voltage	See each model for details ( Rated output voltage ± 10% adjustable )
Voltage regulation	<±1%
Load Regulation	<±1%
Monitor parameters	Non-Standard, Output voltage
Overload protection	115% -150%, Automatic recovery
Overvoltage protection	115% ~140%, Automatic recovery
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Cooling method	Forced air cooling
Withstand pressure	I/P-O/P:3KVA, I/P-FG: 2KVA, O/P-FG: 1.25KVA, 1min
Working environment	-30- +60℃ (100%load) ; Humidity 10% -90%, No condensation.
Storage environment	-10~ +80℃; Humidity 5% ~95%, No condensation.
Safety standard EMC	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1,
EMC standard	EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2
Design life	Room temperature 25 hours at 1000,000 hours

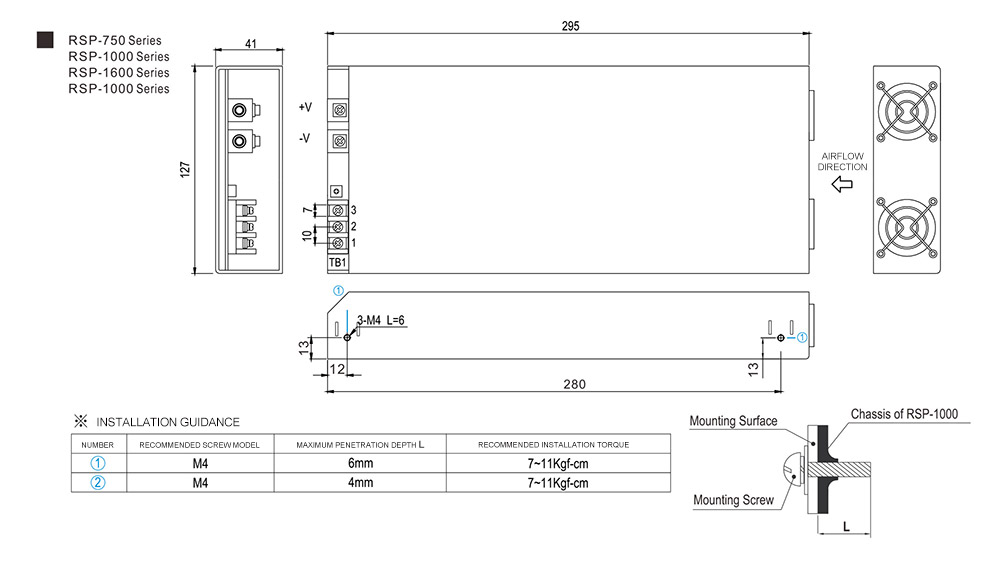

Dimensions	127× 295 × 41mm

Power	750W	1000W	1600W	2000W
Shell material	Aluminum+iron
AC input	100 - 240VAC 50/60HZ
Electric shock	Cold start, 40A at 230VAC		Cold start, 50A at 230VAC
Input leakage current	<0.5mA
Output voltage	See each model for details ( Rated output voltage ± 10% adjustable )
Voltage regulation	<±1%
Load Regulation	<±1%
Monitor parameters	Non-Standard, Output voltage
Overload protection	115% -150%, Automatic recovery
Overvoltage protection	115% ~140%, Automatic recovery
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Cooling method	Forced air cooling
Withstand pressure	I/P-O/P:3KVA, I/P-FG: 2KVA, O/P-FG: 1.25KVA, 1min
Working environment	-30- +60℃ (100%load) ; Humidity 10% -90%, No condensation.
Storage environment	-10~ +80℃; Humidity 5% ~95%, No condensation.
Safety standard EMC	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1,
EMC standard	EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2
Design life	Room temperature 25 hours at 1000,000 hours
Dimensions	127× 295 × 41mm
