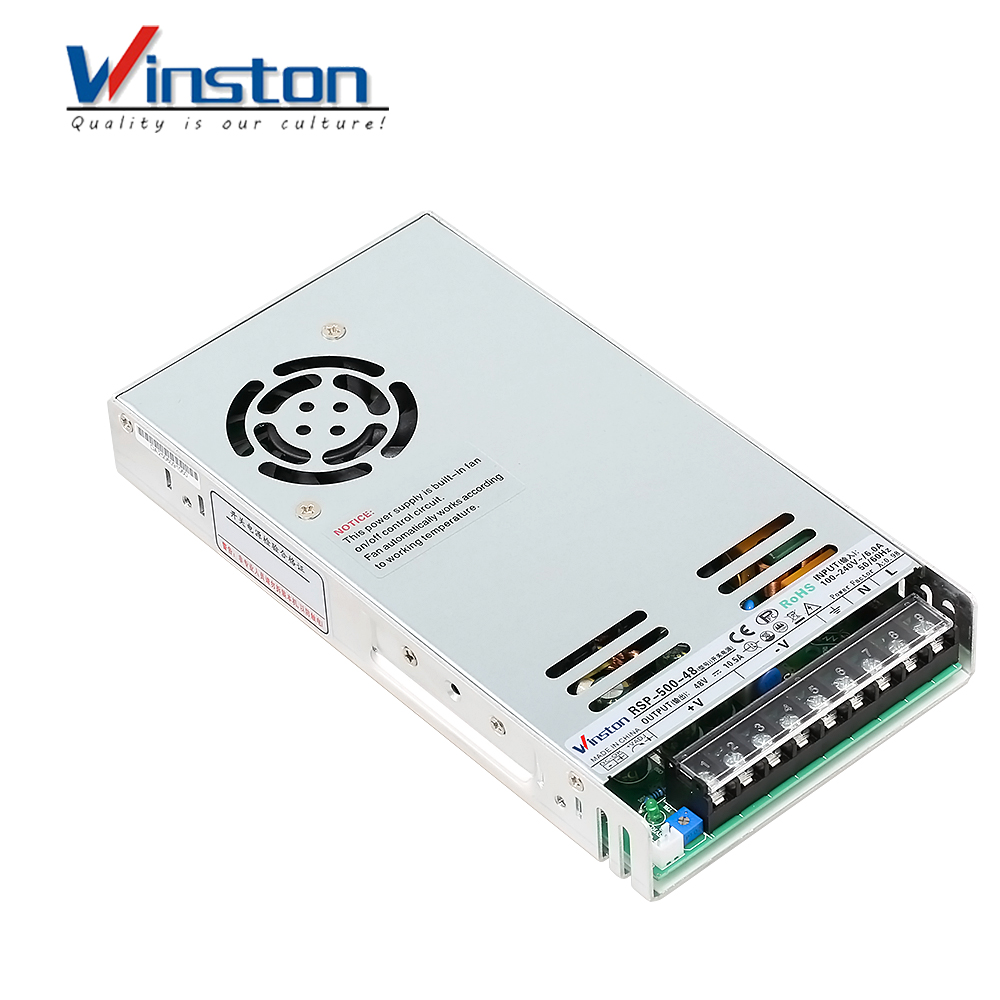

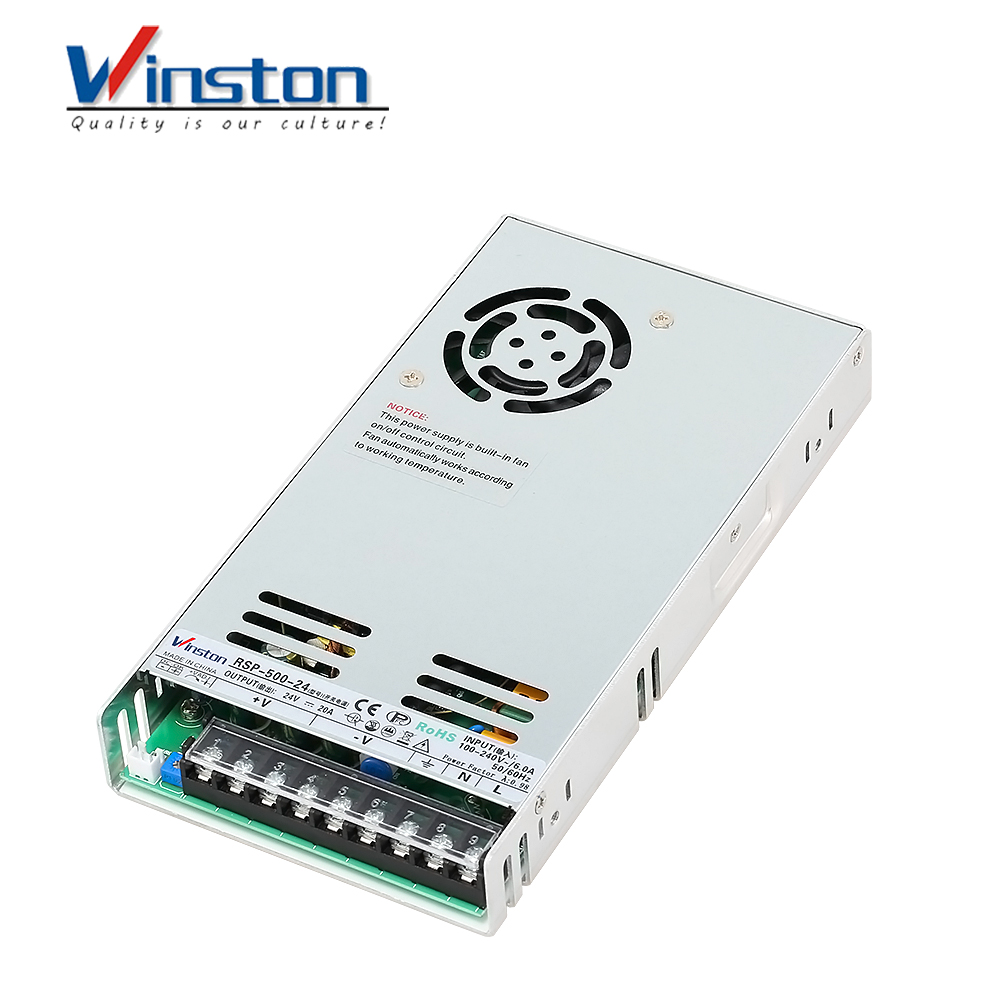

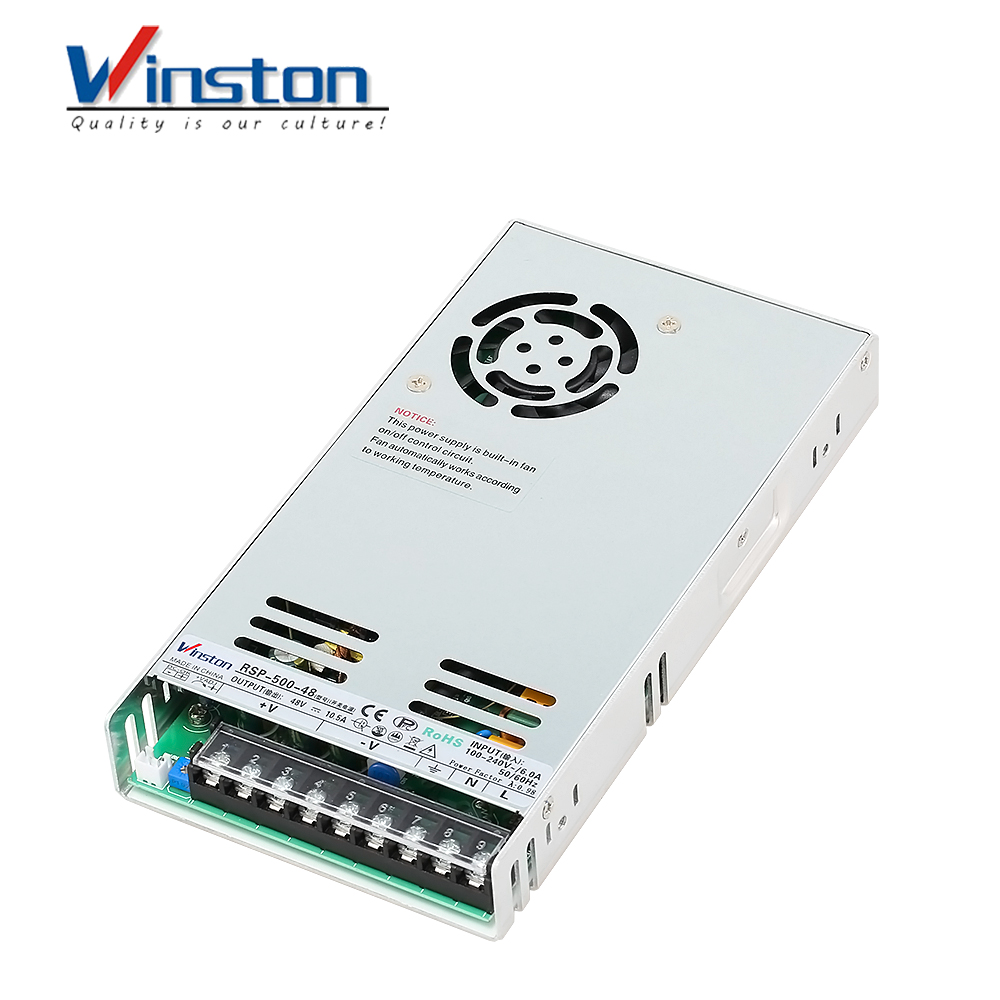

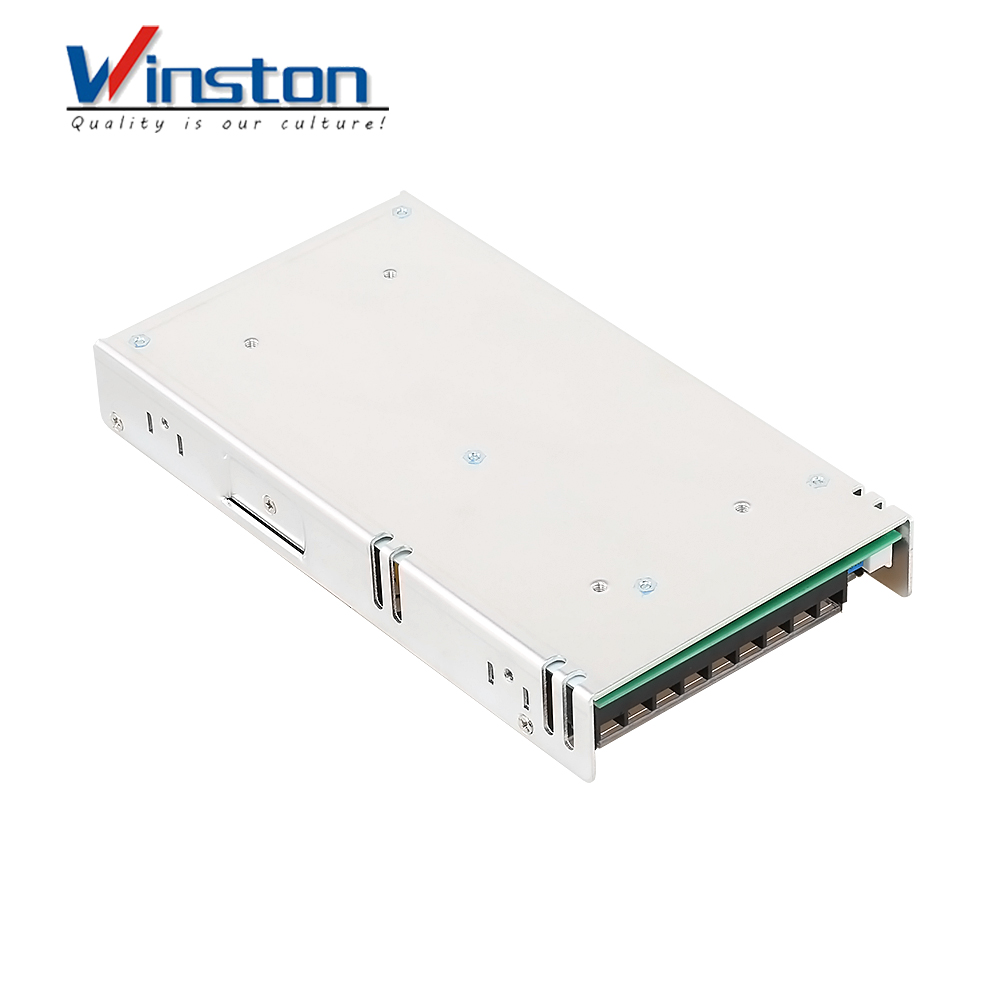

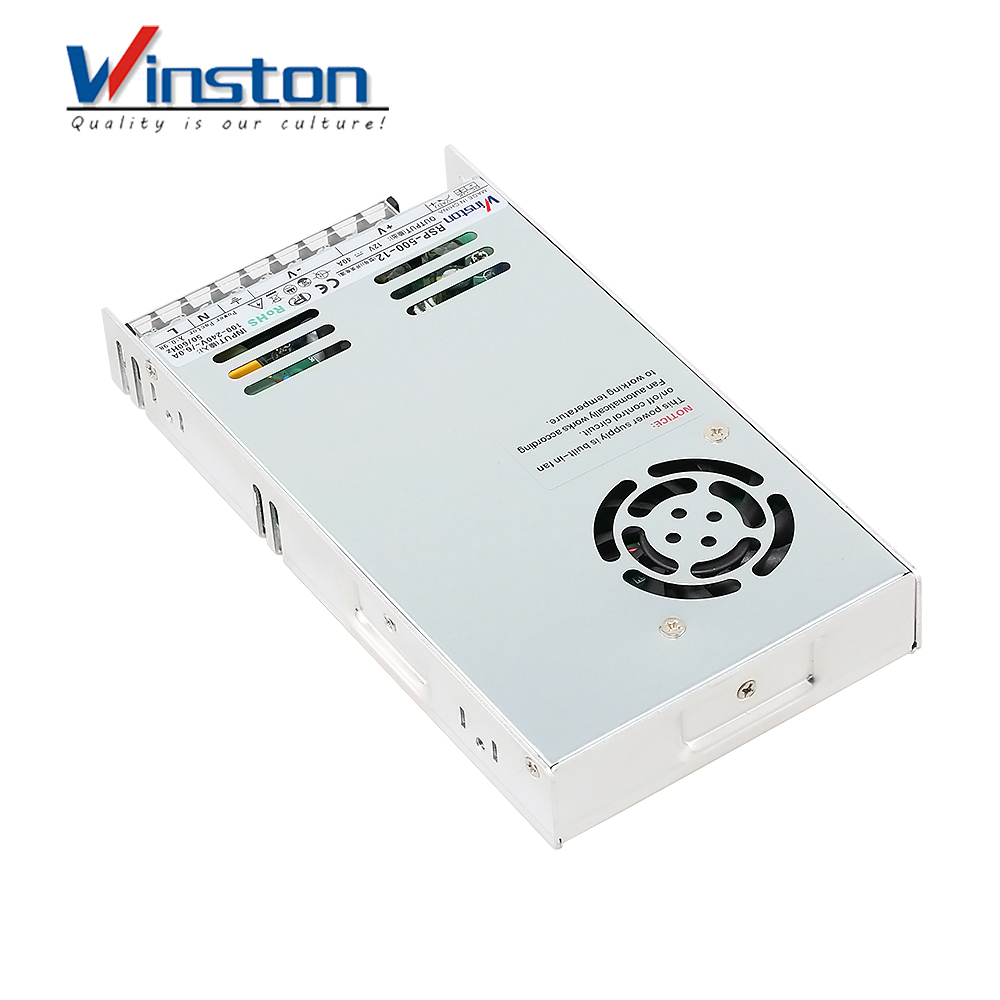

RSP-500 12V 24V 36V 48V 500w Switching Power Supply

Share to:

RSP-500 12V 24V 36V 48V 500w Switching Power Supply

Availability:

Quantity:



Inquire Add to Basket

Model:
RSP-500
Brand:
Winston

RSP-500 is a 500W single output enclosed type AC/DC power supply with 1U low profile. This series operates for 90-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 60C. Moreover, RSP-500 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Model Explanation

Features

• Universal AC input /Full range

• Built-in active PFC function

• High efficiency up to 90%

• Forced air cooling by built-in DC fan

• Output voltage programmable

• Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal

• Protections: Short circuit/Overload / Over voltage /Over temperature

• Optional conformal coating

Application

• Factory control or automation apparatus

• Test and measurement instrument

• Laser related machine

• Burn-in facility

• RF application

RSP-320 12V 24V 36V 48V 500w Switching Power Supply

RSP-320 12V 24V 36V 48V 320w Switching Power Supply

WDP-150 150W 12V 15V 24V 36V 48V Ultra-thin Rail Type Switching Power Supply

WDP-100 100W 12V 15V 24V 36V 48V Ultra-thin Rail Type Switching Power Supply

WDP-60 60W 5V 12V 15V 24V 48V Ultra-thin Rail Type Switching Power Supply

DR-DN20-24 DIN Rail Industrial Power Supply

DBR Series Rail Mounted Switching Power Supply

CDR Series PLC Professional Type DIN Rail Industrial Power Supply

RSP Series Ultra-thin Switching Power Supply

RSP-3000 24V High Quality Enclosed Type Flat Panel Industrial Switching Power Supply with PFC Function

RSP-2000 24V Flat Panel Industrial Switching Power Supply with Single Output

RSP-1000 24V 36V 48V 1000W DIN Rail Flat Panel Switching Power Supply

HDR-60 Ultra Slim Step Shape DIN Rail Power supply

HDR-15 Ultra Slim Step Shape DIN Rail Power supply

14V HDR 30W Ultra Slim Step Shape DIN Rail Power supply

Yueqing SMPS DR-15 Din Rail 12V 24V 15W Power Supply

Winston DR-100 Din Rail 100W Switching Power Supply

DRT-480 48V 480W din rail led driver power supply

DRT-240-24 24V single output din rail switch model power supply

WINSTON Single output din rail dc led driver DRP-480-48 480W 48V

PFC function din rial power supply unit 240W 24V DRP-240-24

Specification	RSP-500-12	RSP-500-24	RSP-500-36	RSP-500-48
DC output voltage, current	12V 0~35A	24V 0~21A	36V 0~14A	48V 0~10.5A
Wave and noise	200mVp-p	200mVp-p	280mVp-p	300mVp-p
Line regulation rate	±0.5%	±0.5%	±0.5%	±0.5%
Load regulation rate	±1%	±0.5%	±0.5%	±0.5%
Efficiency	91%	92.5%	93%	94%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
Input voltage range	90~264VAC, 135~370VDC (Can withstand 300VAC surge input for 5 seconds without damage)47-63Hz
AC input current	5.0A/115V 3.0A/230VAC
Power factor	PF≥0.99/115VAC,PF≥0.95/230VAC(When fully loaded)
Impact current	Cold start current 40A/230VAC
Overload protection	Overload protection is activated at 100%-125% of the rated output power. Protection' method: Current limiting mode, automatically restores normal output after abnormal conditions are removed
Overvoltage protection	Starting overvoltage protection at 115%-135% of rated output voltage Protection method: Voltage limiting mode, which can automatically restore normal output after removing abnormal conditions
Over temperature protection	85℃ ± 10℃ Protection method: Hiccup mode, can automatically recover after the temperature returns to normal
Setup, rise, hold up time	800ms,50ms,16ms/230VAC(When fully loaded)
Withstand voltage	Inputloutput space (!/P~0/P): 1.5KVAC input to ground (!/P~FG): 1.5KVAC output to ground (O/P~FG): 0.5KVAC
Insulation resistance	Input/output (!/P~0/P), input to ground (l/P~FG), output to ground (0/P~FG): 100M Ohms/500VDC/25℃/70% RH
Working temperature/humidity	-20℃~+60℃ 20%~90% RH , Nocondensation

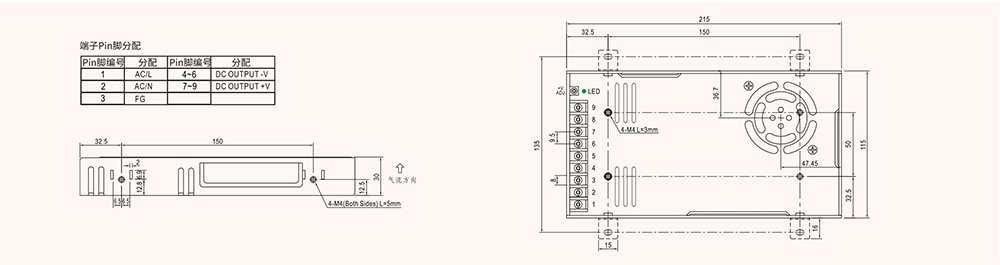

Dimension	215x115x30mm(LWH )
Packing	0.85kg/20pcs/18.5kg/0.003m^3

Specification	RSP-500-12	RSP-500-24	RSP-500-36	RSP-500-48
DC output voltage, current	12V 0~35A	24V 0~21A	36V 0~14A	48V 0~10.5A
Wave and noise	200mVp-p	200mVp-p	280mVp-p	300mVp-p
Line regulation rate	±0.5%	±0.5%	±0.5%	±0.5%
Load regulation rate	±1%	±0.5%	±0.5%	±0.5%
Efficiency	91%	92.5%	93%	94%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
Input voltage range	90~264VAC, 135~370VDC (Can withstand 300VAC surge input for 5 seconds without damage)47-63Hz
AC input current	5.0A/115V 3.0A/230VAC
Power factor	PF≥0.99/115VAC,PF≥0.95/230VAC(When fully loaded)
Impact current	Cold start current 40A/230VAC
Overload protection	Overload protection is activated at 100%-125% of the rated output power. Protection' method: Current limiting mode, automatically restores normal output after abnormal conditions are removed
Overvoltage protection	Starting overvoltage protection at 115%-135% of rated output voltage Protection method: Voltage limiting mode, which can automatically restore normal output after removing abnormal conditions
Over temperature protection	85℃ ± 10℃ Protection method: Hiccup mode, can automatically recover after the temperature returns to normal
Setup, rise, hold up time	800ms,50ms,16ms/230VAC(When fully loaded)
Withstand voltage	Inputloutput space (!/P~0/P): 1.5KVAC input to ground (!/P~FG): 1.5KVAC output to ground (O/P~FG): 0.5KVAC
Insulation resistance	Input/output (!/P~0/P), input to ground (l/P~FG), output to ground (0/P~FG): 100M Ohms/500VDC/25℃/70% RH
Working temperature/humidity	-20℃~+60℃ 20%~90% RH , Nocondensation
Dimension	215x115x30mm(LWH )
Packing	0.85kg/20pcs/18.5kg/0.003m^3
