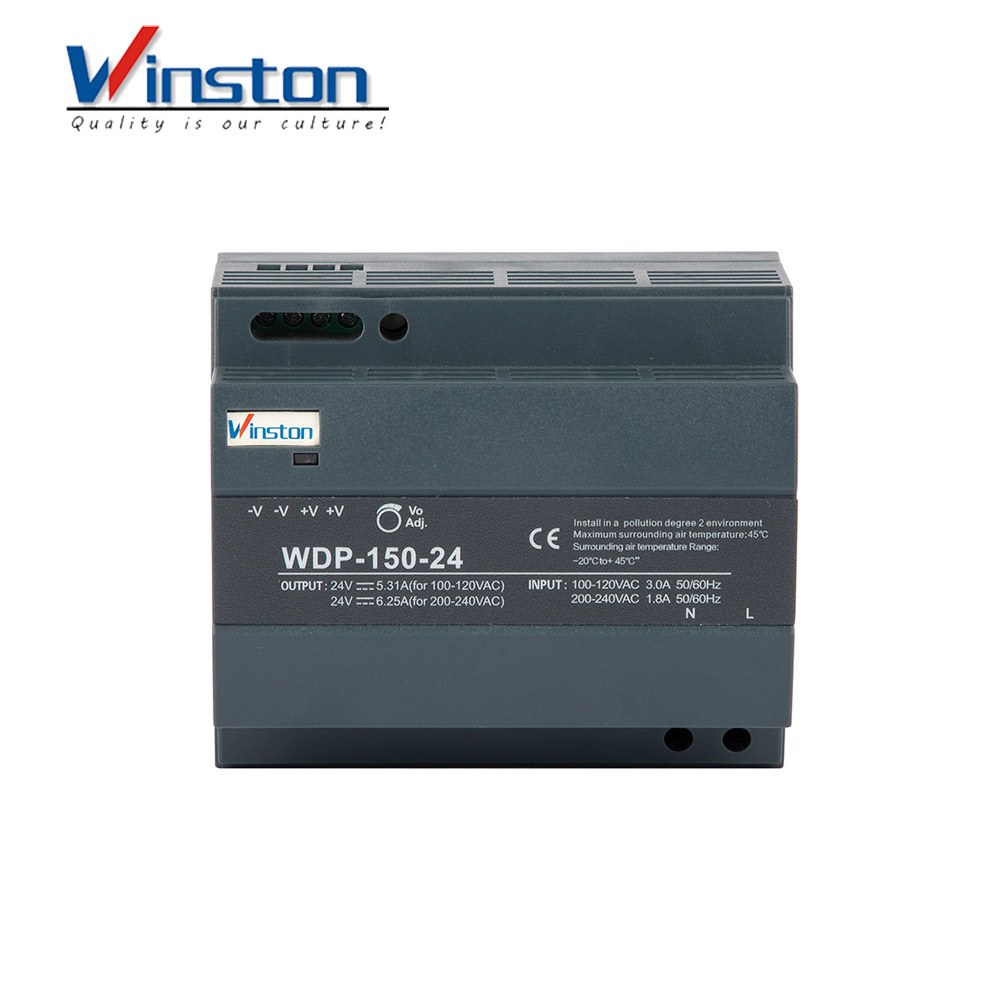

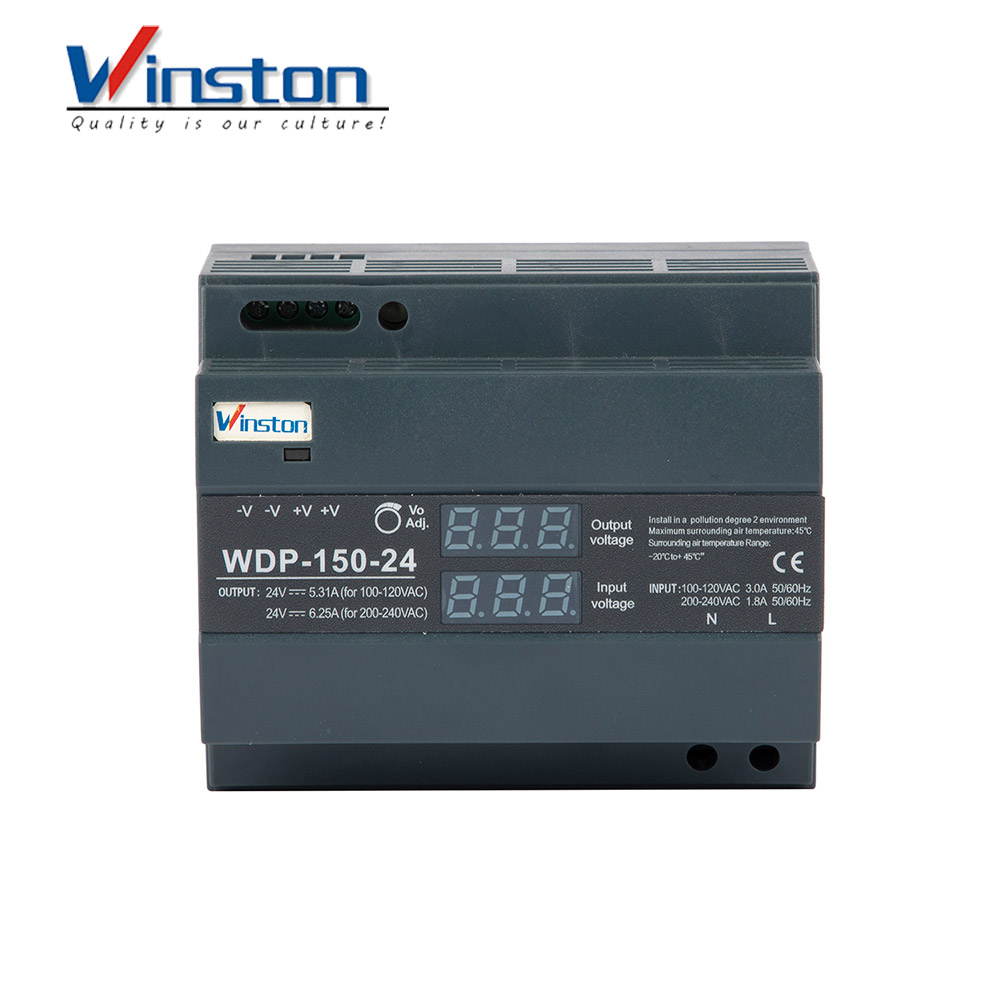

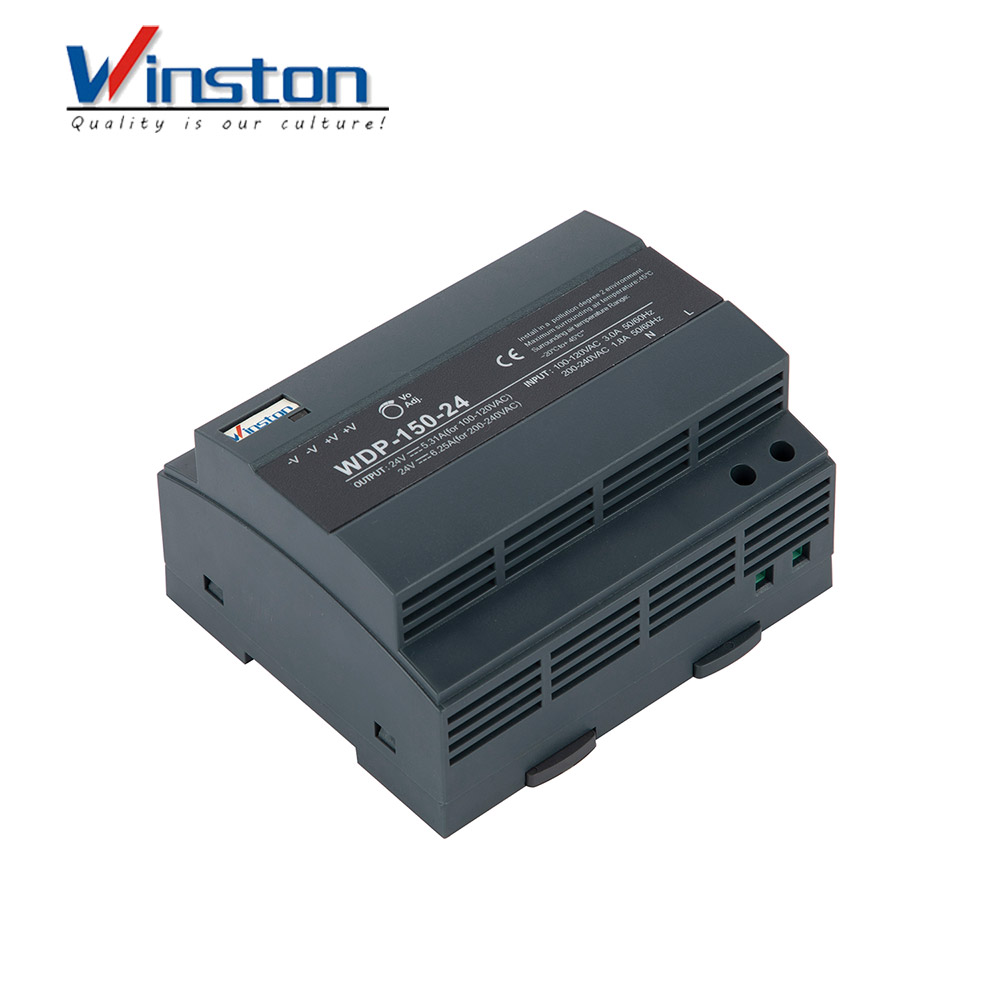

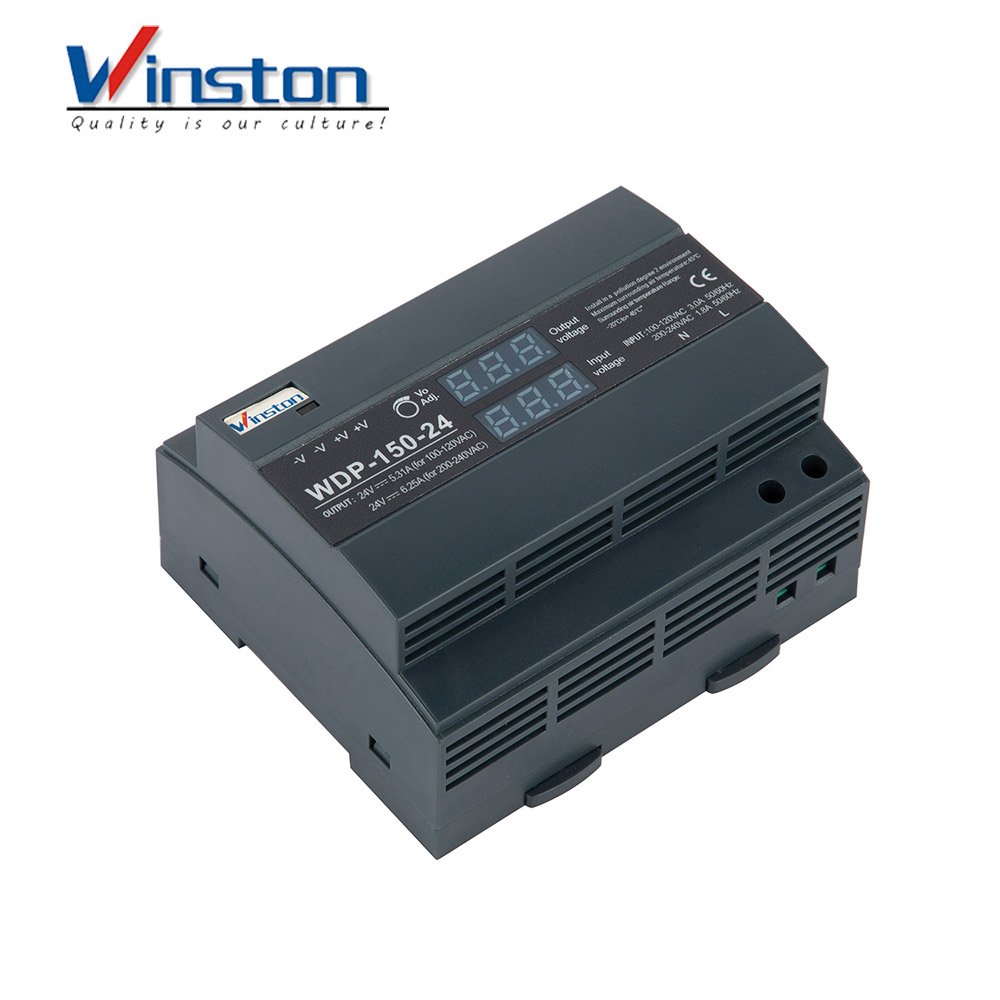

WDP-150 150W 12V 15V 24V 36V 48V Ultra-thin Rail Type Switching Power Supply

Share to:

WDP-150 150W 12V 15V 24V 36V 48V Ultra-thin Rail Type Switching Power Supply

Availability:

Quantity:



Inquire Add to Basket

Model:
WDP-150
Brand:
Winston

· Ultra-thin design, saving installation space

· Protection type: short circuit/overcurrent

· Working efficiency up to 88%

· 100% full load aging test

Technical parameter

Model		WDP-150-12	WDP-150-15	WDP-150-24	WDP-150-36	WDP-150-48
Output characteristic	Dc output voltage	12V	15V	24V	36V	48V
	Rated current 115VAC	10.2A	8.5A	5.3A	3.6A	2.7A
	Rated current 230VAC	11.3A	9.5A	6.2A	4.2A	3.2A
	Current range	0-11.3A	0-9.5A	0-6.2A	0-4.2A	0-3.2A
	Rated power 115VAC	120W	125W	125W	125W	130W
	Rated power 230VAC	135W	142W	150W	150W	150W
	Ripple & Noise(Max)	150mVp-p	150mVp-p	200mVp-p	220mVp-p	240mVp-p
	Voltage regulationr ange	10.9-13.2V	13.6-16.5V	21.8-26.4V	32.7-39.6V	43.6-52.8V
	Voltage accuracy	±1%	±1%	±1%	±1%	±1%
	Linear adjustmentr ate	±1%	±1%	±1%	±1%	±1%
	Load adjustment rate	±1%	±1%	±1%	±1%	±1%
	Start & rise time	2000mS，30mS1115VAC(Full load):1000mS，30mS/230VAC
	Holding time	30mS/230VAC(Full oad) 10mS/115VAC(Full load)
Input characteristic	Input voltage	85-264VAC 120-370VDC
	Input frequency	47-63Hz
	efficiency	87%	87%	88%	88%	88%
	Input current	3A/115VAC 1.6A1230VAC
	Power factor	0.65/230VAC(Full load)
	Inrush current	70A/230VAC(Cold start)
Protective characteristic	Overload protection	110%-150% of rated power
	Overload protection	Protection mode:hiccup protection, automatically recovered after abnormal condition sare removed
	Overcurrent protection	110%-150% of the rated current
	Overcurrent protection	Protection mode:hiccup protection, automatically recovered after abnormal condition sare removed
	Short circuitprotection	Output positive negative short circuit
	Short circuitprotection	Protection mode: hiccup protection, automatically recovered afterabnormal conditions are removed

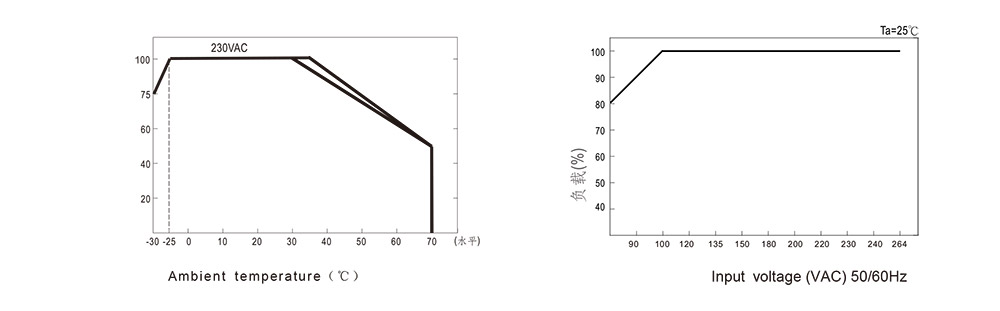

Environmenta characteristic5	Operating temperature	-30℃-70℃(Refer to the derating curve)
	Working humidity	20~90%RH No condensation
	Store temperature /humidity	-40℃~85℃10~95%RH,No condensation
	Vibration resistance	10~500HZ,5G 10 minutes/cycle,X, Y,z 60 minutes each
Safety and electromagnetic compatibility	Withstand voltage	Input to output :800VAC
Safety and electromagnetic compatibility	Insulation impedance	Input to output:100M 0hms/500VDC/25℃/70%RH

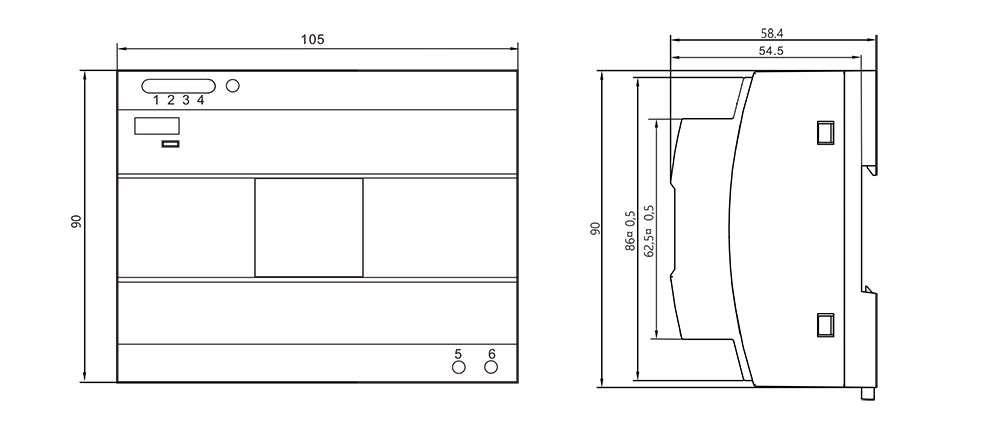

	Product size	1059054.5mm(WHD)
	Package	0.327kg/pcs
Remark	1. All parameters are measured at 230VAC voltage input, rated load and 25'℃ when not specified. 2. Ripple and noise voltage is measured at 20MHz bandwidth oscilloscope with 12-inch twisted pair end with 0.1 u and 47 u capacitange, and.measured at 20MHZ bandwidth 3. Accuracy: including setting error, linear adjustment rate and load adjustment rate. 4, lf the input voltage is low, the output needs to be derated. For detalils, see the static characteristic diagram 5. The starting time is measured when the cold machine is started, and frequent switching of the machinemay increase the starting time.
