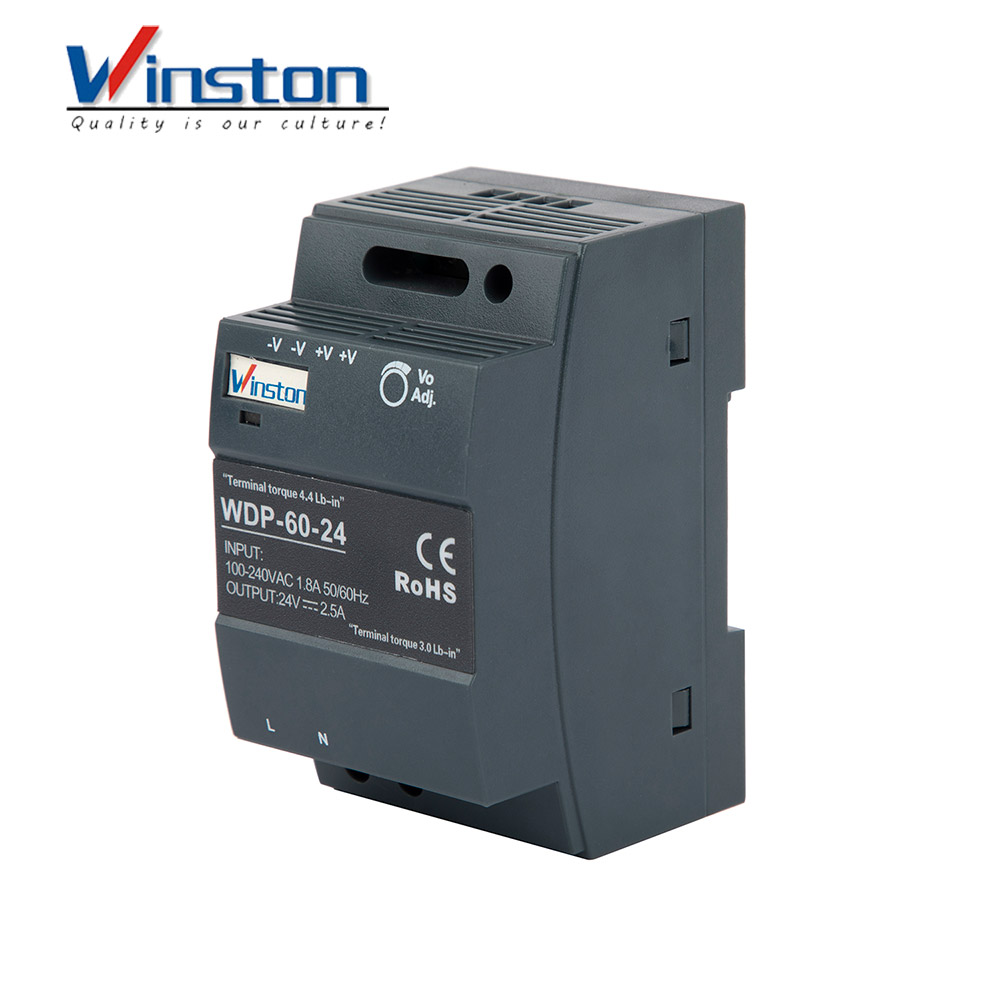

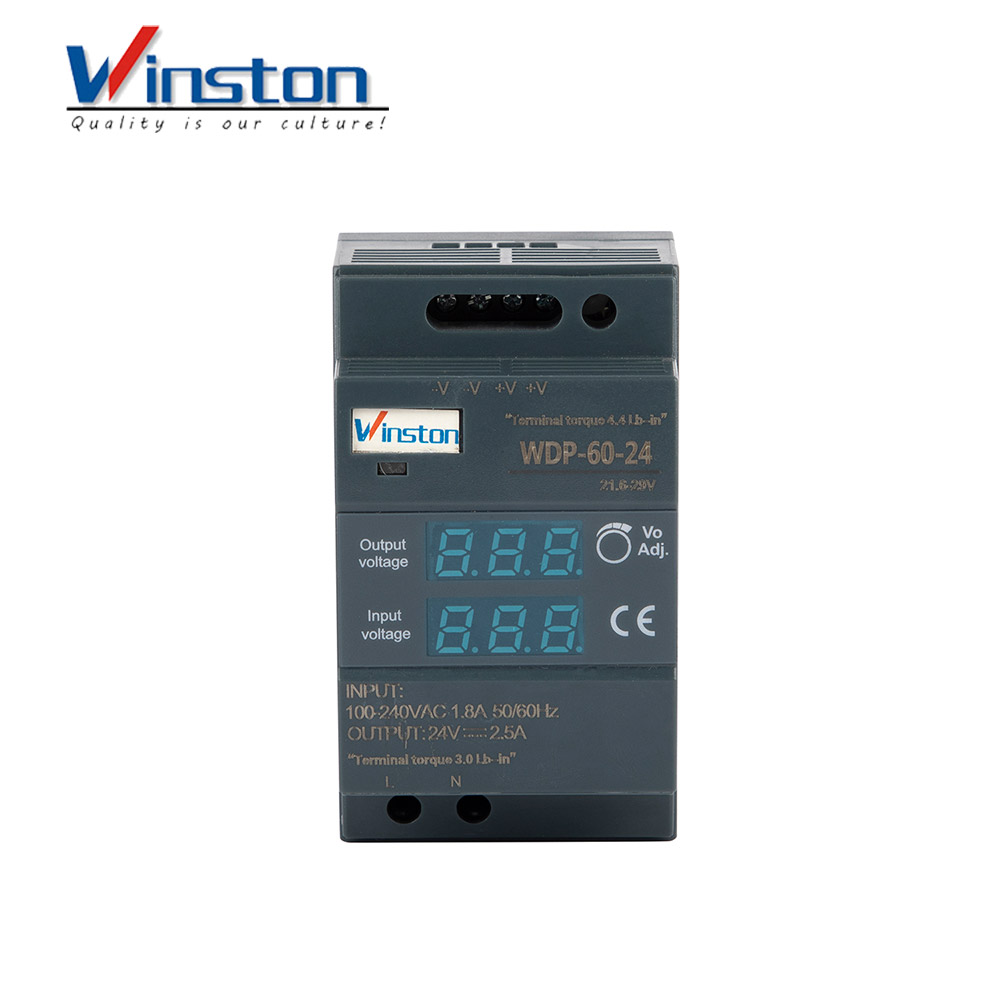

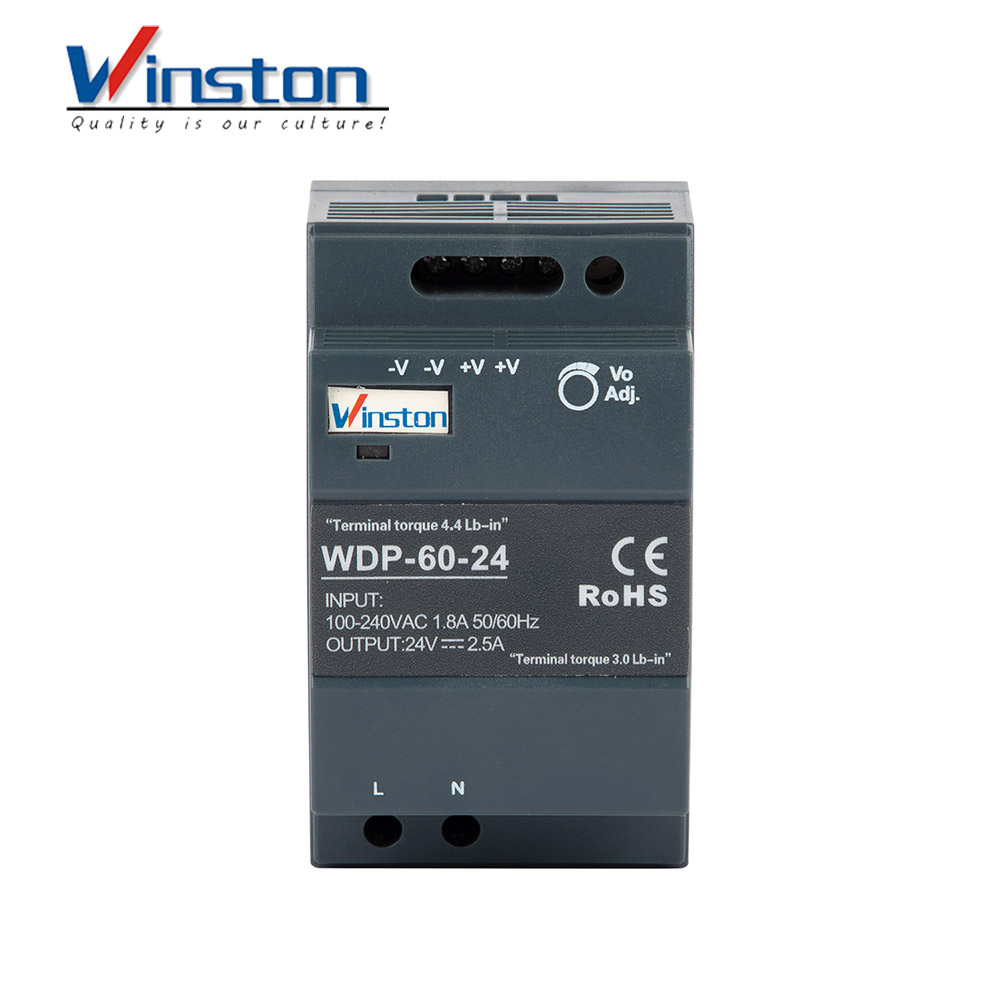

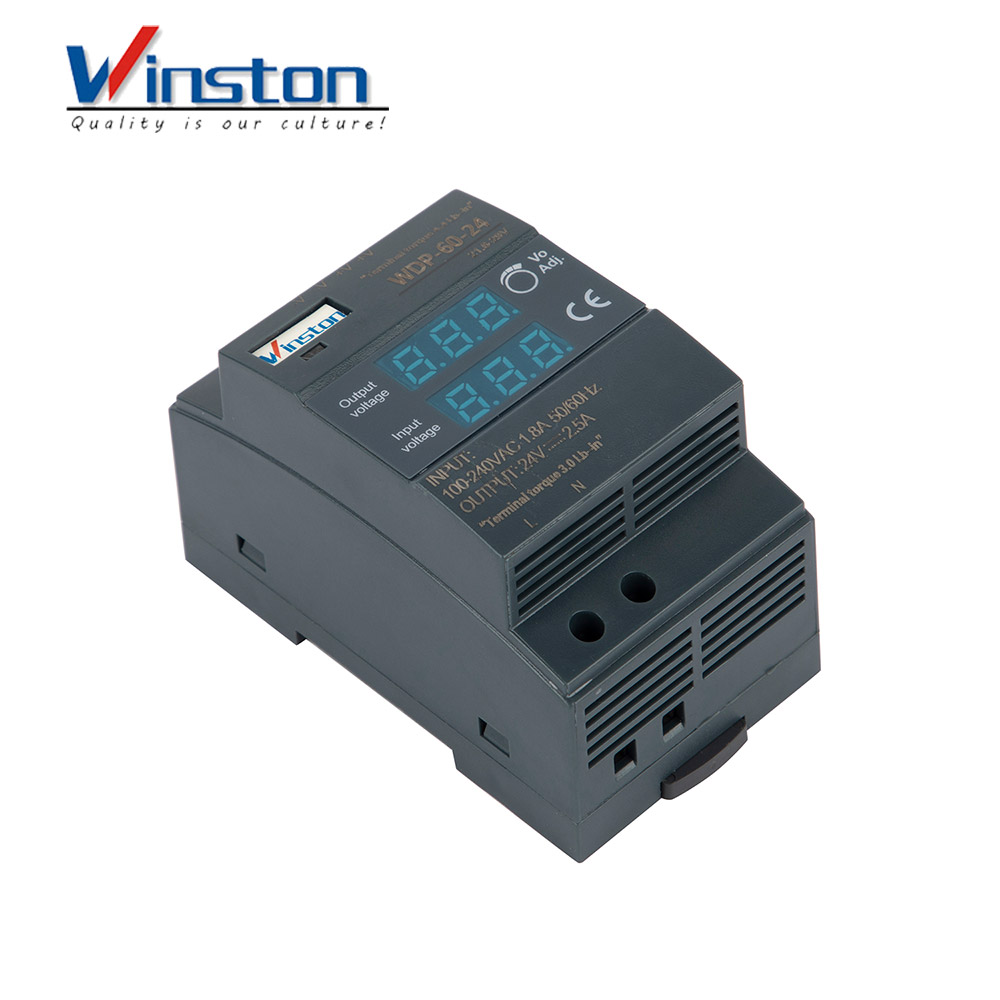

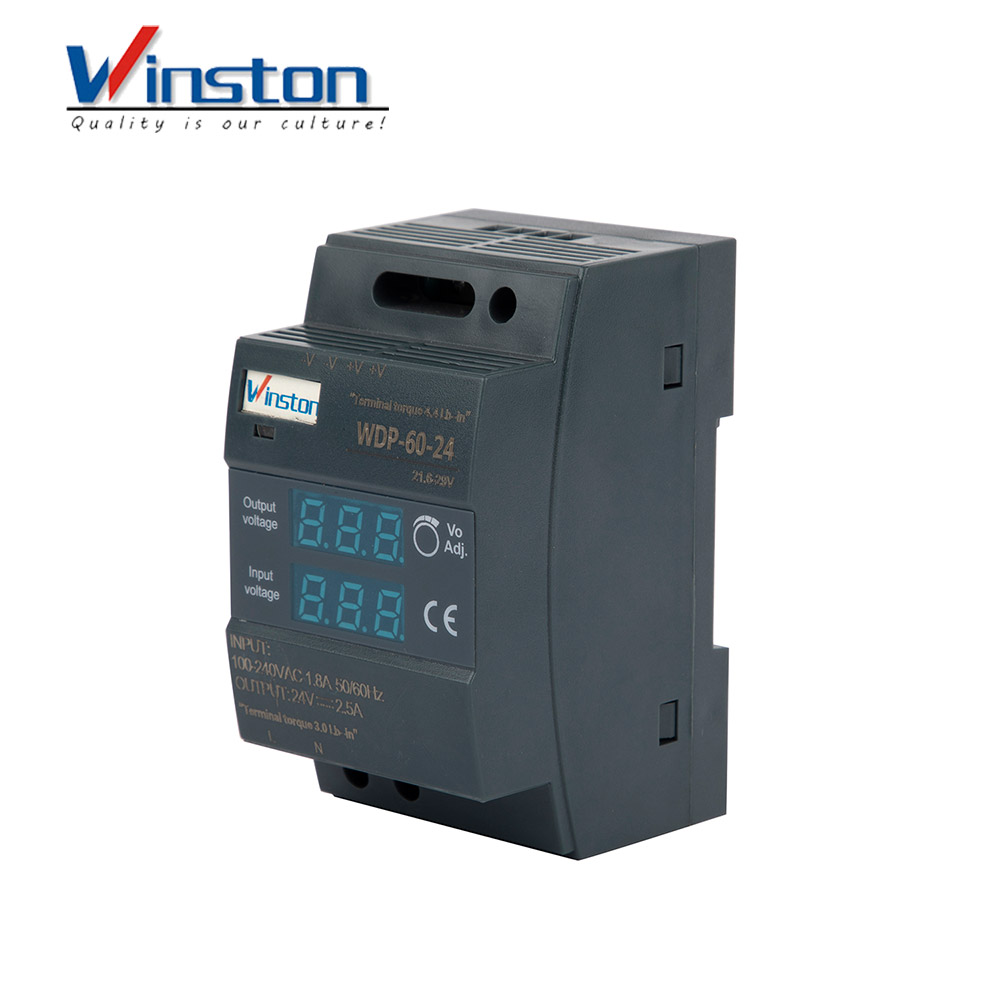

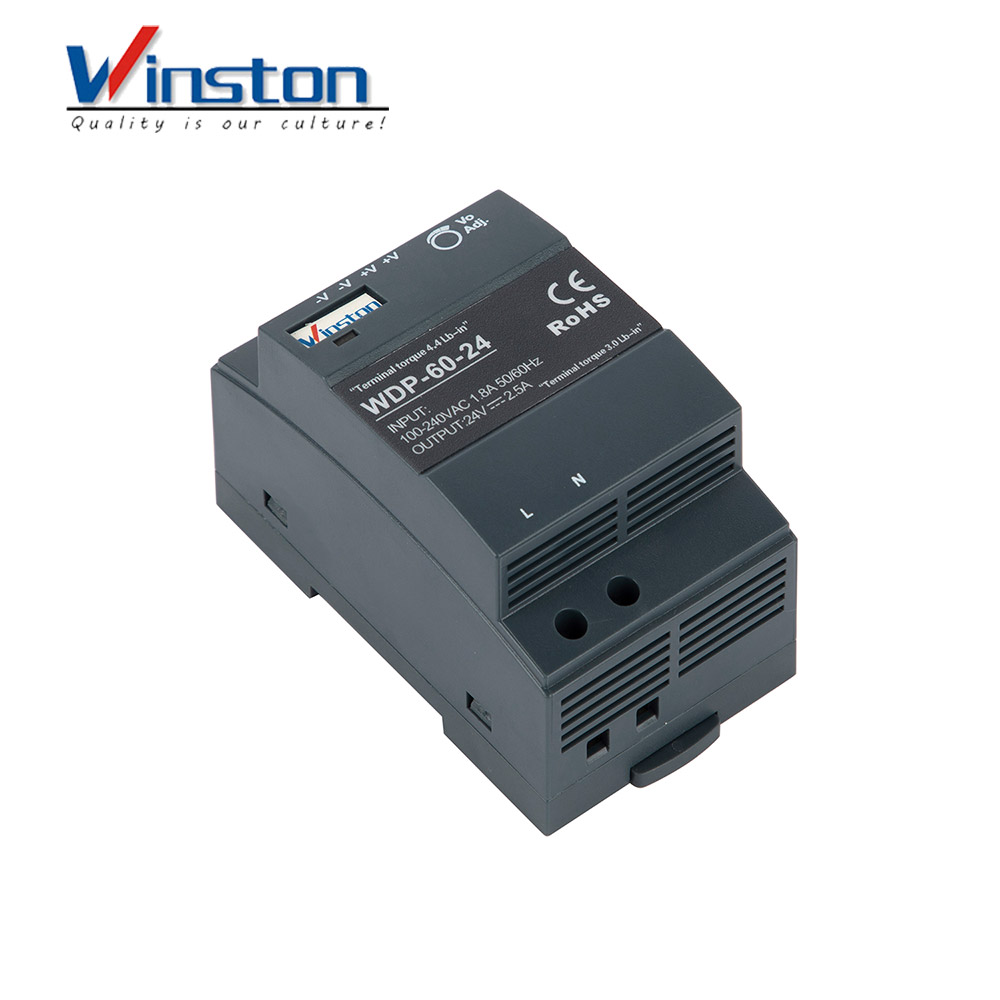

WDP-60
Winston
· Ultra-thin design, saving installation space
· Protection type: short circuit/overcurrent
· Working efficiency up to 88%
· 100% full load aging test
Model | WDP-60-5 | WDP-60-12 | WDP-60-15 | WDP-60-24 | WDP-60-48 | |
Output characteristic | Dc output voltage | 5V | 12V | 15V | 24V | 48V |
Rated current | 6.5A | 4.5A | 4A | 2.5A | 1.25A | |
Current range | 0-6.5A | 0-4.5A | 0-4A | 0-2.5A | 0-1.25A | |
Rated power | 32.5W | 54W | 60W | 60W | 60W | |
Ripple & Noise(Max) | 80mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-P | |
Voltage regulationr ange | 4.5-5.5V | 10.8-13.8V | 13.5-18V | 21.6-26.4V | 43.2-55.2V | |
Voltage accuracy | ±2% | ±1% | ±1% | ±1% | ±1% | |
Linear adjustmentr ate | ±1% | ±1% | ±1% | ±1% | ±1% | |
Load adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | |
Start & rise time | 2000mS,30mS/115VAC(Full load):1000ms，30mS/230VAC | |||||
Holding time | 30mS/230VAC(Full load)10mS1115VAC(Full load) | |||||
Input characteristic | Input voltage | 85-264VAC 120-370VDC | ||||
Input frequency | 47-63Hz | |||||
efficiency | 82% | 85% | 86% | 88% | 88% | |
Input current | 1.2A1115VAC 0.81230VAC | |||||
Power factor | 0.651230VAC(Full load) | |||||
Inrush current | 50A/230VAC(Cold start) | |||||
Protective characteristic | Overload protection | 110%-150% of rated power | ||||
Protection mode:hiccup protection, automatically recovered after abnormal condition sare removed | ||||||
Overcurrent protection | 110%-150% of the rated current | |||||
Protection mode:hiccup protection, automatically recovered after abnormal condition sare removed | ||||||
Short circuitprotection | Output positive negative short circuit | |||||
Protection mode: hiccup protection, automatically recovered afterabnormal conditions are removed | ||||||

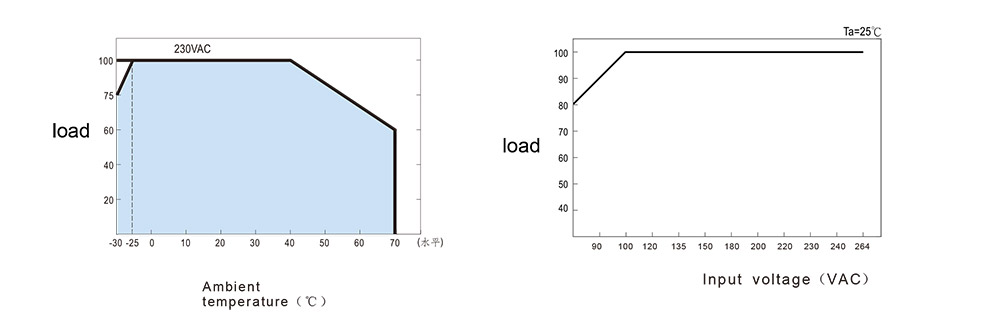

Environmenta characteristic5 | Operating temperature | -10℃~0℃(Refer to the derating curve) | ||||
Working humidity | 20~90%RH No condensation | |||||
Store temperature /humidity | -40℃~85℃10~95%RH,No condensation | |||||
Vibration resistance | 10~500HZ,5G 10 minutes/cycle,X, Y,z 60 minutes each | |||||
Safety and electromagnetic compatibility | Withstand voltage | Input to output :800VAC | ||||
Insulation impedance | Input to output:100M 0hms/500VDC/25℃/70%RH | |||||
Product size | 52.5*90*54.5mm(L*W*H) | |||||
Package | 0.19kg/pcs | |||||
Remark | 1. All parameters are measured at 230VAC voltage input, rated load and 25'℃ when not specified. 2. Ripple and noise voltage is measured at 20MHz bandwidth oscilloscope with 12-inch twisted pair end with 0.1 u and 47 u capacitange, and.measured at 20MHZ bandwidth 3. Accuracy: including setting error, linear adjustment rate and load adjustment rate. 4, lf the input voltage is low, the output needs to be derated. For detalils, see the static characteristic diagram 5. The starting time is measured when the cold machine is started, and frequent switching of the machinemay increase the starting time. | |||||
