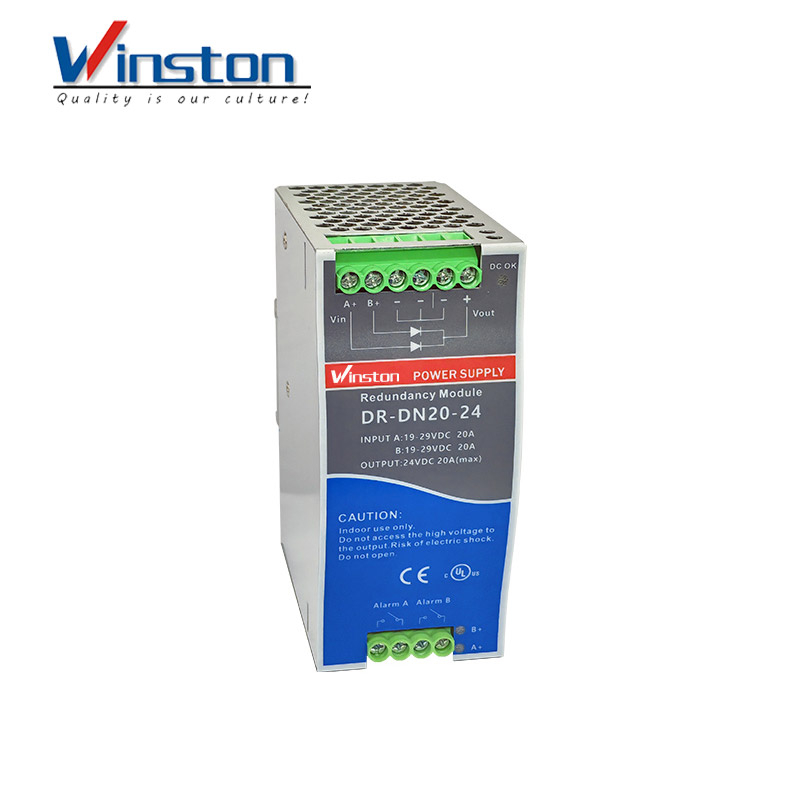

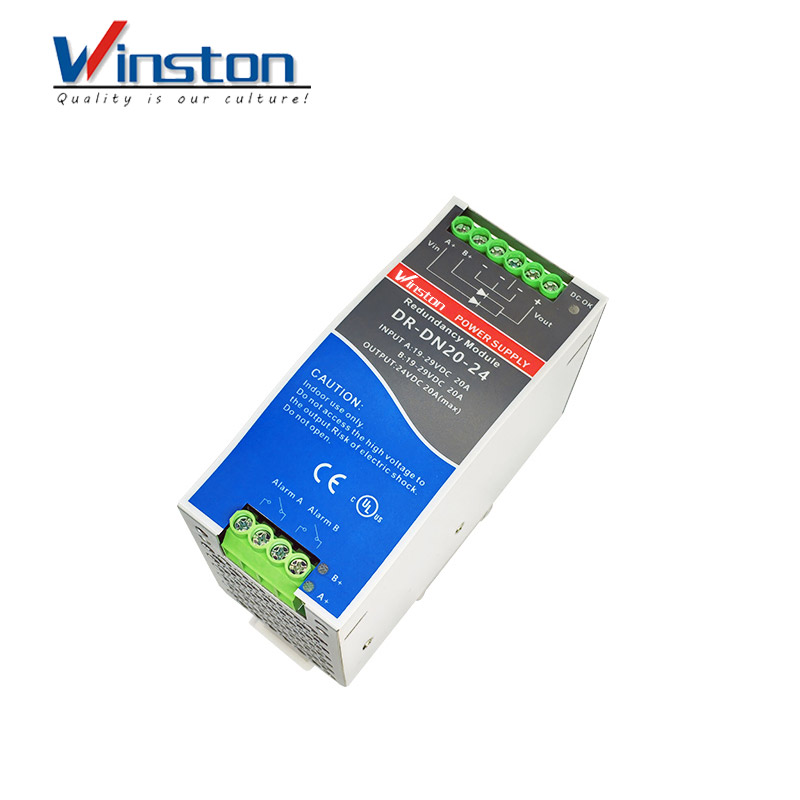

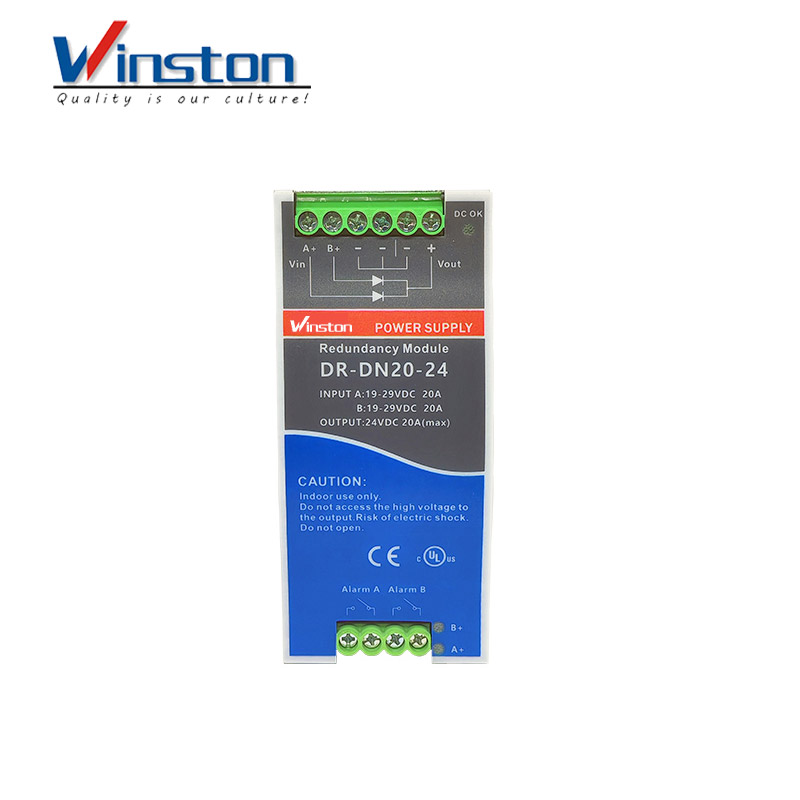

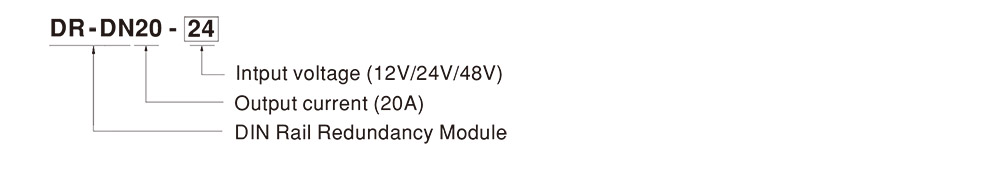

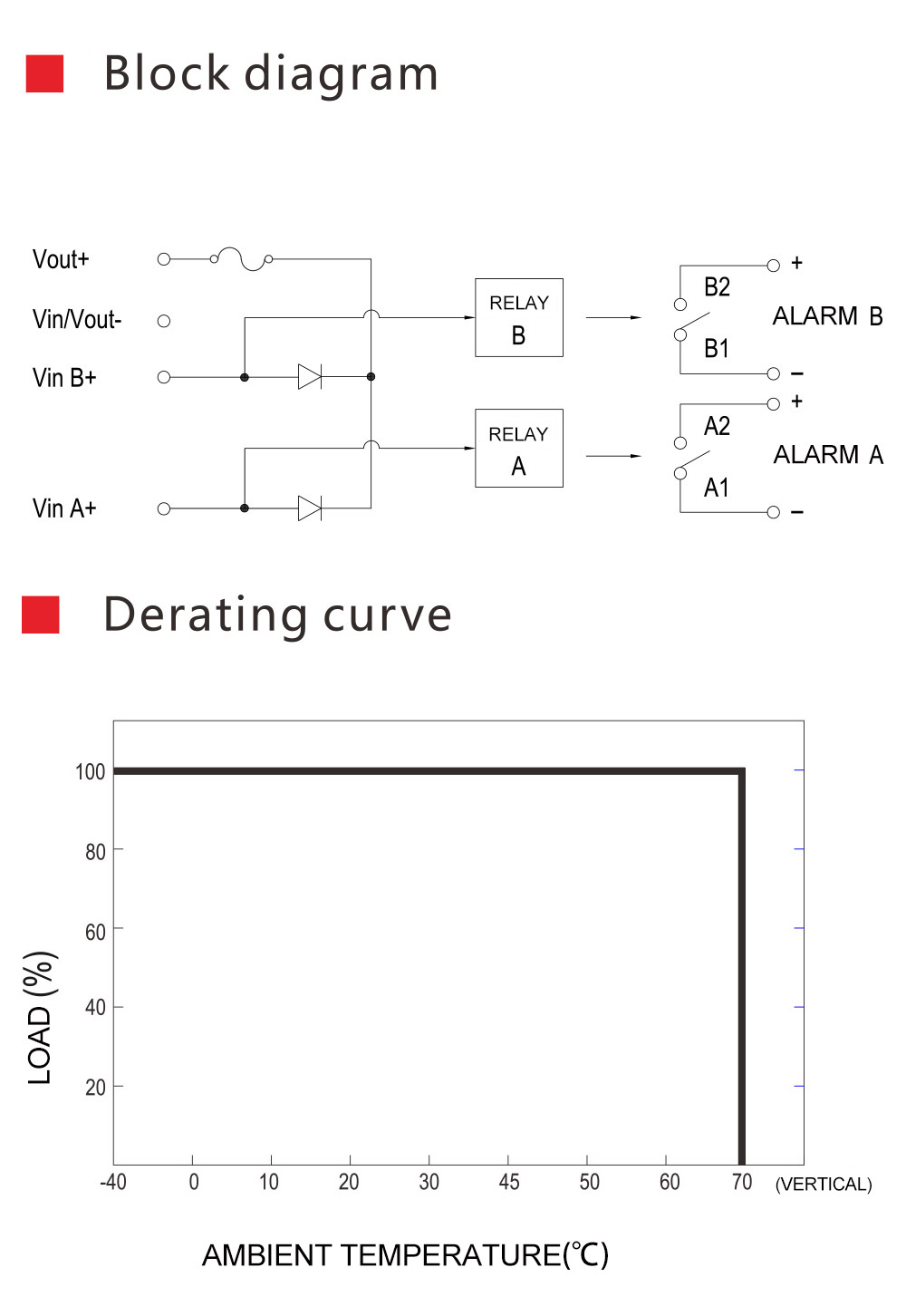

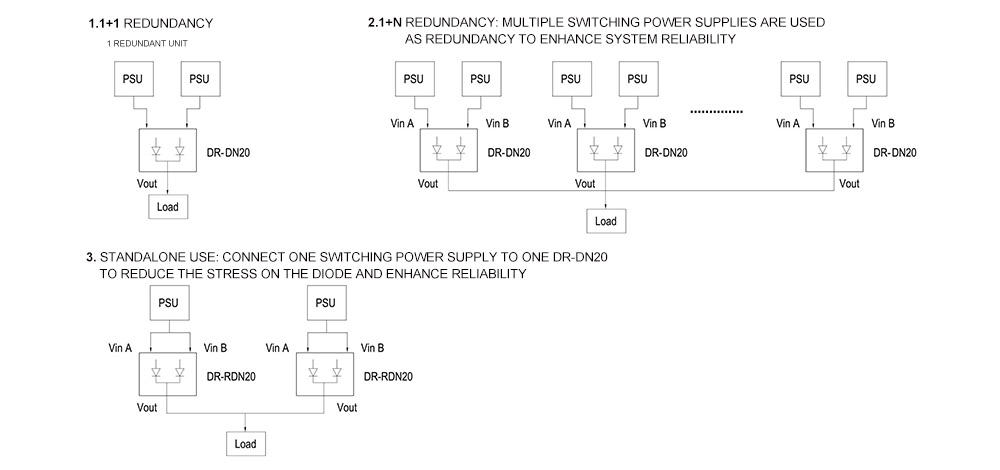

Model | DR-DN20-24 |
Output | Reverse voltage (maximum) | 30V |
Output current (maximum) | 20A |
Voltage sag | 0.6V |
LED indication | Two green LEDs indicate whether each group of inputs is "normal or faulty" |
Input | Input voltage range | 21~28V |
Input quantity | 2 |
Input current (maximum) | 20A per group input |
Function | Input voltage alarm | When the input voltage is greater than 20V (±5%) or less than 30V (±5%), the relay is triggered. |
Relay contact current (maximum) | 30VDC, 1A |
Environment | Working temperature | -40~+70℃ |
Work humidity | 20~90%RH, no condensation |
Storage temperature and humidity | -40~+85℃, 10~95% RH |
Resistant to vibration | 10 - 500 Hz, 2G, 10 minutes per cycle, X, Y, Z axes each for 60 minutes; Installation: in accordance with IEC 60068-2-6 |
Safety regulations and electromagnetic compatibility | Safety standard certification | UL508, AS/NZS 62368.1, EAC TP TC 004 |
Pressure resistance | Terminal panel - bottom cover: 0.5KVAC, Relay contacts - terminal panel: 0.5KVAC |
Insulation impedance | Terminal block - Bottom cover: > 100M Ohms / 500VDC / 25℃ / 70% RH |
Electromagnetic compatibility emission | Compliant with EN55032 (CISPR32), EN61000-3-2, -3, and EAC TP TC 020 |
Electromagnetic compatibility immunity | Compliant with EN61000-4-2, 3, 4, 5, 6, 8, 11, heavy industry standards, EAC TP TC 020 |
Others | MTBF | 2315.6K hrs min.Telcordia SR-332 (Bellcore); 996.9K hrs min. MIL-HDBK-217F (25℃) |

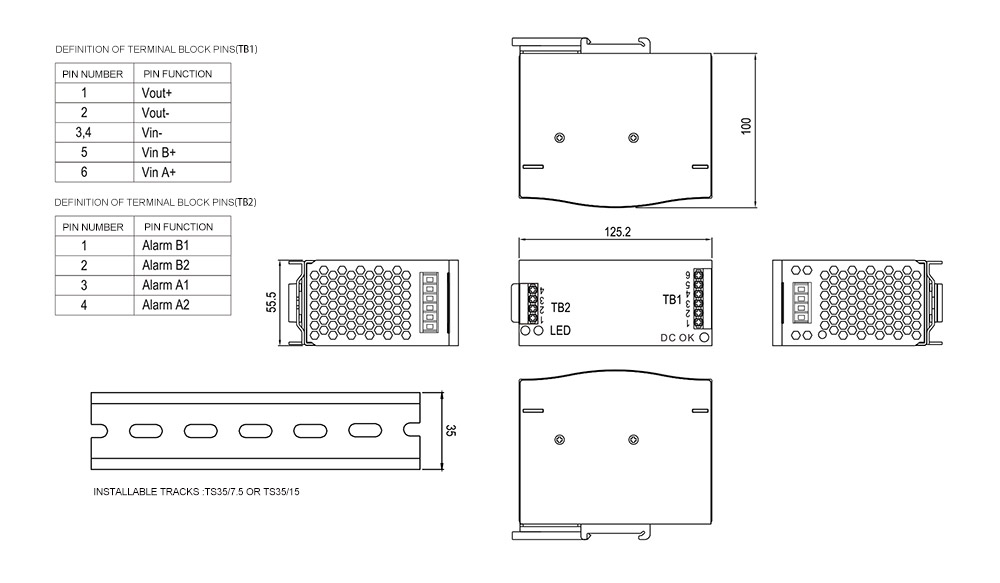

Size | 55.5*125.2*100mm (W*H*D) |
Packaging | 0.5Kg; 26pcs/14Kg |
Note | 1. Unless otherwise specified, all specification parameters are measured under the input of 24VDC, rated load, and an ambient temperature of 25℃. 2. The power supply should be regarded as a part of the system components. All EMC tests will be conducted by installing the sample on a 1mm thick, 360mm long * 360mm wide metal iron plate. The power supply needs to be combined with the terminal equipment for relevant electromagnetic compatibility confirmation. 3. When the altitude exceeds 2000 meters (6500 feet), the ambient temperature of the fanless model decreases at a rate of 3.5℃ per 1000 meters, while the ambient temperature of the fan-equipped model decreases at a rate of 5℃ per 1000 meters. |
