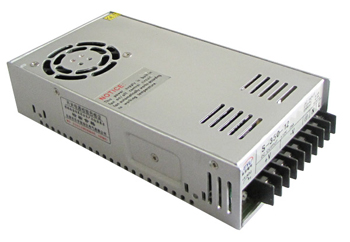

S-350
Winston
Made in China
Export standard carton box
PCS
10
3-7days
1
T/T
Model | S-350-5 | S-350-7.5 | S-350-12 | S-350-13.5 | S-350-15 | S-350-24 | S-350-27 | S-350-48 |
---|---|---|---|---|---|---|---|---|
Specification | ||||||||
DC output voltage | 3V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
Output voltage error(Note:2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 50A | 40A | 29A | 25.8A | 23.2A | 14.6A | 13A | 7.3A |
Output current rage | 0-50A | 0-40A | 0-29A | 0-25.8A | 0-23.2A | 0-14.6A | 0-13A | 0-7.3A |
Wave and noise(Note :3) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p |
Inlet stability(Note :4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stablity (Note :5) | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 250W | 300W | 348W | 348.3W | 348W | 350.4W | 351W | 350.4W |
Efficiency | 73% | 76% | 74% | 79% | 78% | 81% | 82% | 83% |
Adjustable range for DC voltage | 4.5-5.6V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V |
AC input voltage range | 90~132VAC/180-264VAC 47-63Hz;254-370VDC | |||||||
Input current | 6.5A/115V 4A/230V | |||||||
AC INnrush current | 25A/115V 50A/230V | |||||||
Leakage current | <3.5mA/240VAC | |||||||
Overload proctection | 105%~150% Tpye:pulsing hiccp shutdown Reset:auto recovery | |||||||
Over-voltage protection | 5.75~6.75V | 9.4~10.9V | 13.8~16.2V | 15.5~18.2V | 18~21V | 27.6~32.4V | 33.7~39.2V | 57.6~67.2V |
High-temperature protection | ERH3>=65℃~70℃ Fan on,<=55℃~60℃Fan off,>=80℃~85℃,Cut orr output(5~15V)Cut off ortput(5~15)~(24~48V) | |||||||
Temperature coefficient | ±0.03%/℃(0~50%) | |||||||
Setup rise hold up time | 200ms,100ms,20ms | |||||||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | |||||||
Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||||
Working temperature and humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | |||||||
Store temperature and humidity | -20℃~+85℃,10%~95%RH | |||||||
Overall dimension | 215×115×50mm | |||||||
Weight | 1.15Kgs | |||||||
Safety standards | Design refer to UL1950 | |||||||
EMC standards | Design refer FCC PART15 J Conduction class A | |||||||
Note: 1.The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. 6.C2、3、6 must be knocked down. |
Model | S-350-5 | S-350-7.5 | S-350-12 | S-350-13.5 | S-350-15 | S-350-24 | S-350-27 | S-350-48 |
---|---|---|---|---|---|---|---|---|
Specification | ||||||||
DC output voltage | 3V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
Output voltage error(Note:2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 50A | 40A | 29A | 25.8A | 23.2A | 14.6A | 13A | 7.3A |
Output current rage | 0-50A | 0-40A | 0-29A | 0-25.8A | 0-23.2A | 0-14.6A | 0-13A | 0-7.3A |
Wave and noise(Note :3) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p |
Inlet stability(Note :4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stablity (Note :5) | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 250W | 300W | 348W | 348.3W | 348W | 350.4W | 351W | 350.4W |
Efficiency | 73% | 76% | 74% | 79% | 78% | 81% | 82% | 83% |
Adjustable range for DC voltage | 4.5-5.6V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V |
AC input voltage range | 90~132VAC/180-264VAC 47-63Hz;254-370VDC | |||||||
Input current | 6.5A/115V 4A/230V | |||||||
AC INnrush current | 25A/115V 50A/230V | |||||||
Leakage current | <3.5mA/240VAC | |||||||
Overload proctection | 105%~150% Tpye:pulsing hiccp shutdown Reset:auto recovery | |||||||
Over-voltage protection | 5.75~6.75V | 9.4~10.9V | 13.8~16.2V | 15.5~18.2V | 18~21V | 27.6~32.4V | 33.7~39.2V | 57.6~67.2V |
High-temperature protection | ERH3>=65℃~70℃ Fan on,<=55℃~60℃Fan off,>=80℃~85℃,Cut orr output(5~15V)Cut off ortput(5~15)~(24~48V) | |||||||
Temperature coefficient | ±0.03%/℃(0~50%) | |||||||
Setup rise hold up time | 200ms,100ms,20ms | |||||||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | |||||||
Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||||
Working temperature and humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | |||||||
Store temperature and humidity | -20℃~+85℃,10%~95%RH | |||||||
Overall dimension | 215×115×50mm | |||||||
Weight | 1.15Kgs | |||||||
Safety standards | Design refer to UL1950 | |||||||
EMC standards | Design refer FCC PART15 J Conduction class A | |||||||
Note: 1.The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. 6.C2、3、6 must be knocked down. |
