Industrial 145W S-145 SMPS Switching Power Supply for LED Light

Quantity:
  • S-145 Series
  • Winston

Industrial 145W S-145 SMPS Switching Power Supply for LED Light


Technical Parameters




MODEL
S-145-5

S-145-12

S-145-18

S-145-24

S-145-36

S-145-48

DC VOLTAGE

5V

12V

18V

24V

36V

48V

CURRENT RANGE

0 ~ 25A

0 ~ 12A

0 ~ 8A

0 ~ 6A

0~4A

0~3A

EFFICIENCY

70%

80.5%

80.5%

83.5%

83.5%

83.5%

WAVE & NOISE

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p
ADJUSTABLE RANGE FOR DC VOLTAGE
±10%

±10%

±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

LOAD REGULATION

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

SETUP, RISE HOLD UP TIME

100ms, 50ms,20ms/230VAC at full load

VOLTAGE RANGE

90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 35A/115VAC 60A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-150% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

105%-150% shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

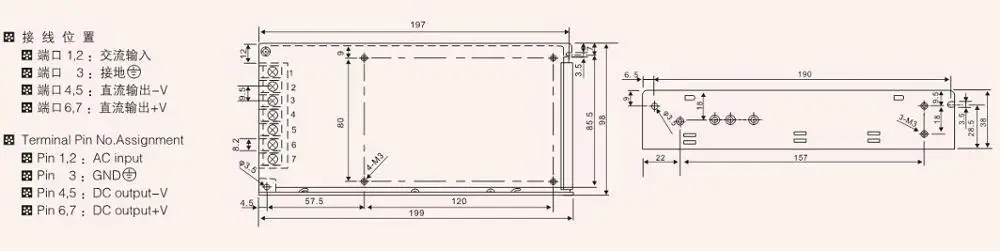

DIMENSION

199*98*38mm (L*W*H)

WERIGHT

0.7kg

PACKING

43*32.5*24cm/30pcs/21Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
