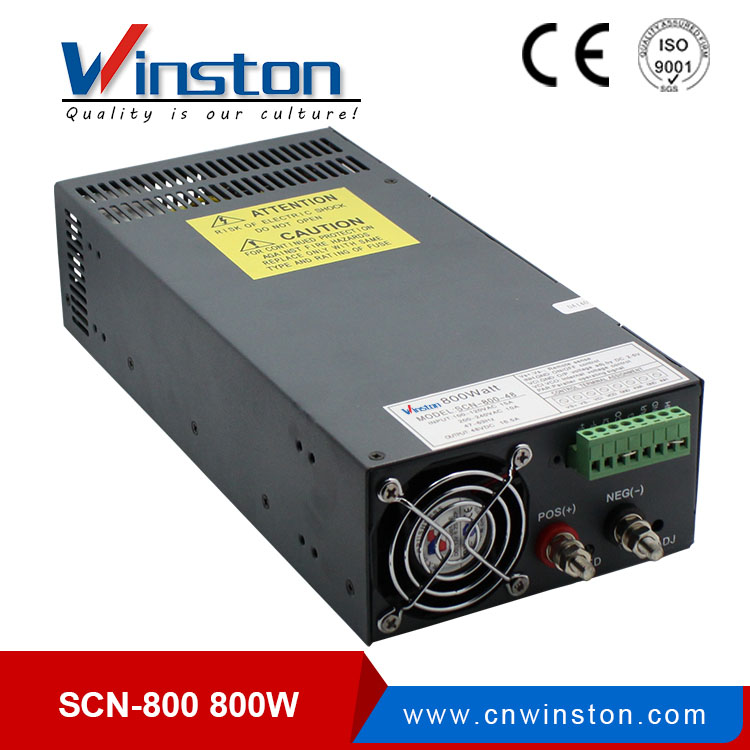

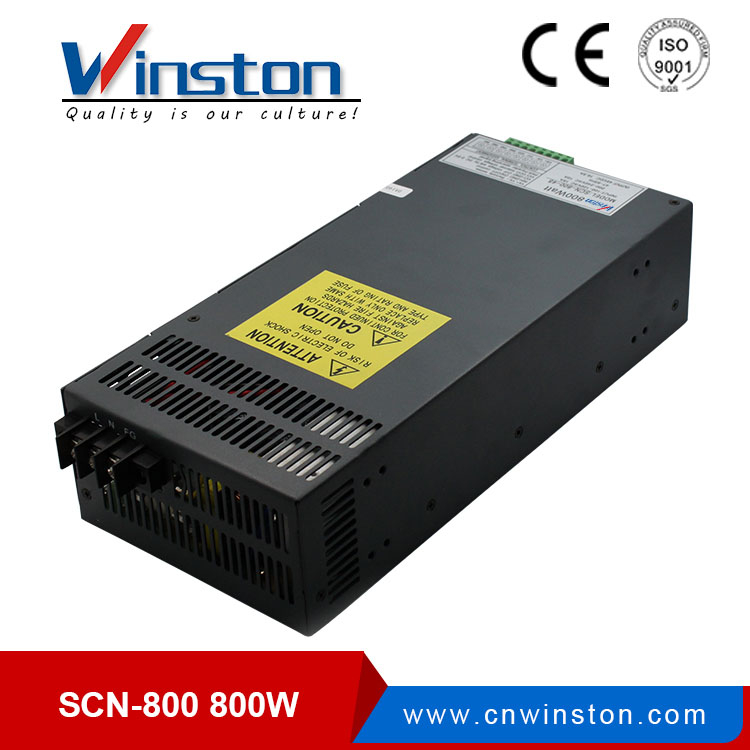

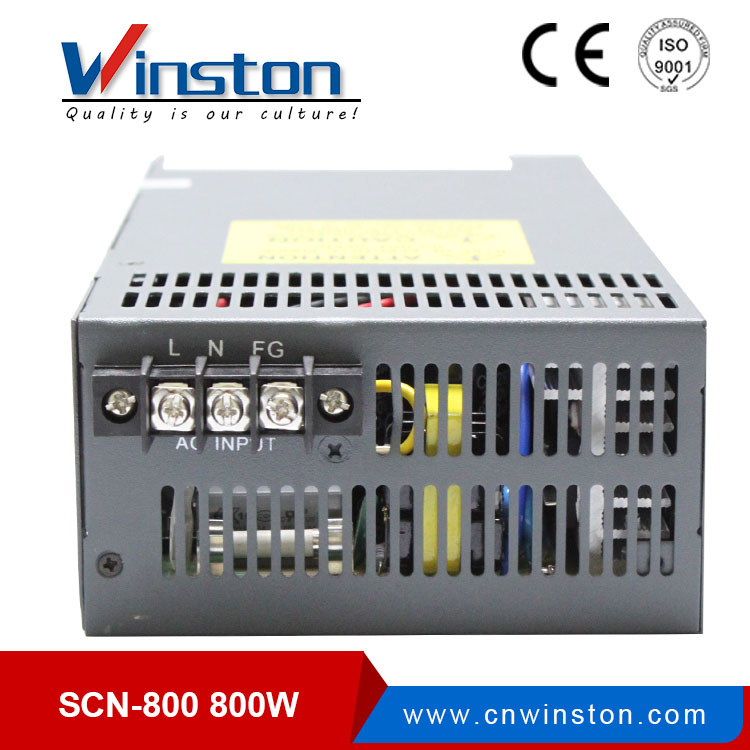

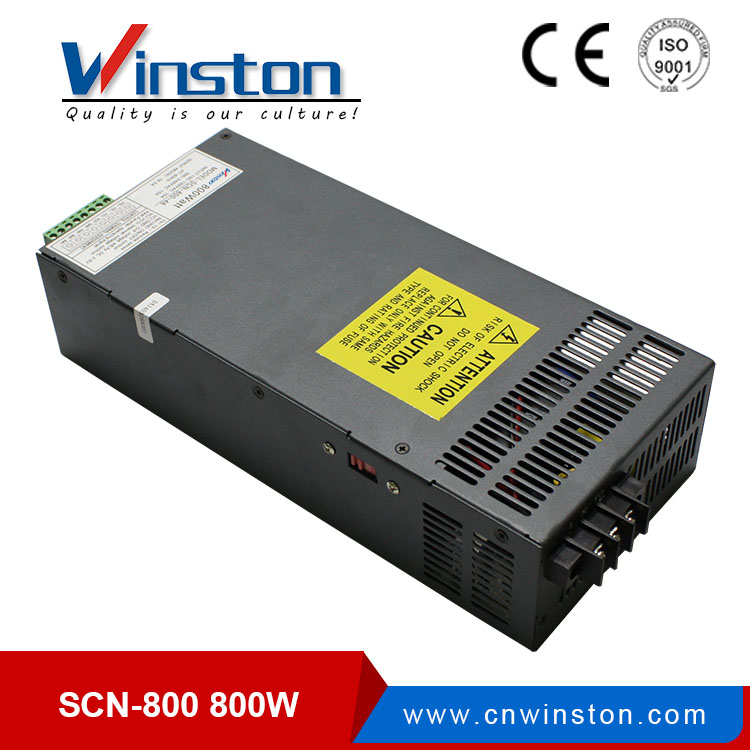

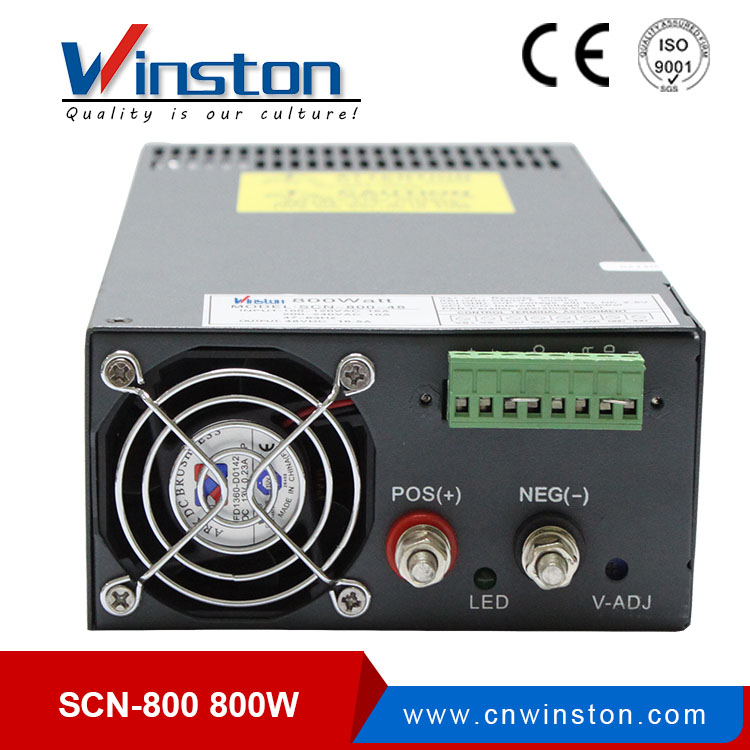

SCN-800 Series 12V 24V 48V
Winston

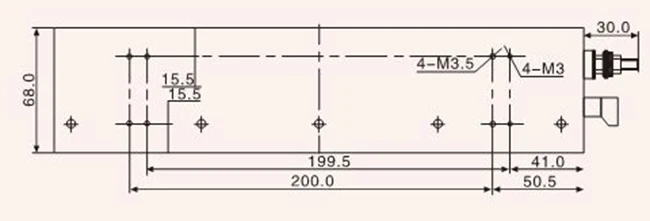

MODEL | SCN-800-12 | SCN-800-24 | SCN-800-36 | SCN-800-48 |
DC VOLTAGE | 12V | 24V | 36V | 48V |
CURRENT RANGE | 0 ~ 66A | 0 ~ 33A | 0 ~ 22A | 0 ~ 17A |
EFFICIENCY | 80% | 85% | 86% | 87% |
WAVE & NOISE | 150mVp-p | 180mVp-p | 180mVp-p | 240mVp-p |
| ADJUSTABLE RANGE FOR DC VOLTAGE | ±10% | ±10% | ±10% | ±10% |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
SETUP, RISE HOLD UP TIME | 2000ms, 50ms,20ms/230VAC at full load | |||
VOLTAGE RANGE | 90~132VAC/180-264VAC by switch 254~ 370VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | |||
IMPACT CURRENT | Cold start current 45A/230VAC | |||
WORKING TEMP. | -10 ~ +50ºC | |||
OVERLOAD PROTECTION | 105%-135% cut off the output , automatic recovery | |||
OVER VOLTAGE PROTECTION | 115%-140% shunt down O/P voltage,re-power on to recover | |||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms | |||
DIMENSION | 291*132*68mm (L*W*H) | |||
WERIGHT | 2.65kg | |||
PACKING | 37.5*31*25.5cm/6pcs/16kg | |||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regu | ||||
