60W 5V 12V 15V 24V S-60 Single Output Switching Power Supply For LED Driver

Quantity:
  • S-60 Series
  • Winston

60W 5V 12V 15V 24V S-60 Single Output Switching Power Supply For LED Driver


Technical Parameters




MODEL

S-60-5

S-60-12

S-60-15

S-60-24

DC VOLTAGE

5V

12V

15V

24V

CURRENT RANGE

0 ~ 12A

0 ~ 5A

0 ~ 4A

0 ~ 2.5A

EFFICIENCY

72%

78%

79%

82%

WAVE & NOISE

75mVp-p

100mVp-p

100mVp-p

100mVp-p

ADJUSTABLE RANGE FOR

DC VOLTAGE


±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1%

±0.5%

±0.5%

±0.5%

SETUP, RISE HOLD UP TIME

200ms, 100ms,20ms/230VAC at full load

VOLTAGE RANGE

90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 15A/115VAC 3A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-150% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

105%-150% shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

DIMENSION

159*98*38mm (L*W*H)

WERIGHT

0.5kg

PACKING

34*32*24cm/30pcs/15Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

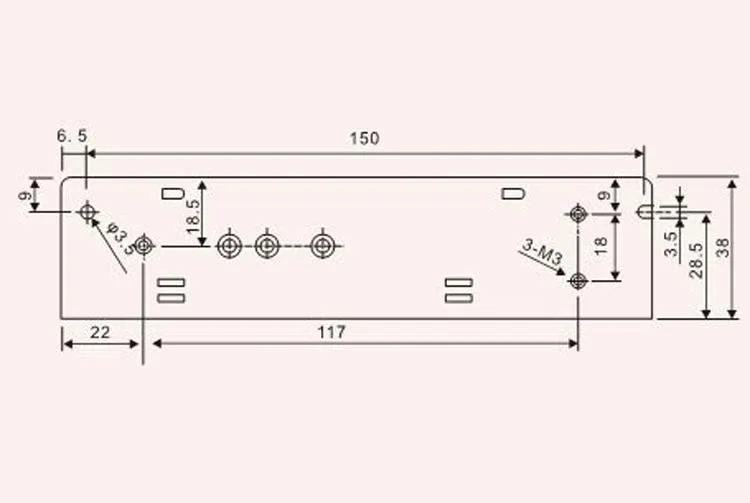

Dimension
