Ordinary Indoor 200W S-200 Switch Mode Power Supply

Quantity:
  • S-200 Series
  • Winston

Ordinary Indoor 200W S-200 Switch Mode Power Supply


Technical Parameters




MODEL
S-200-5

S-200-12

S-200-15

S-200-24

S-200-36

S-200-48

DC VOLTAGE

5V

12V

15V

24V

36V

48V

CURRENT RANGE

0 ~ 40A

0 ~ 16.5A

0 ~ 13.3A

0 ~ 8.5A

0~5.5A

0~4.2A

EFFICIENCY

79%

82%

83%

83%

86%

86%

WAVE & NOISE

150mVp-p

150mVp-p

180mVp-p

180mVp-p

200mVp-p

200mVp-p
ADJUSTABLE RANGE FOR DC VOLTAGE
±10%

±10%

±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE HOLD UP TIME

200ms, 50ms,20ms/230VAC at full load

VOLTAGE RANGE

90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 30A/115VAC 60A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-150% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

105%-150% shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

DIMENSION

199*110*50mm (L*W*H)

WERIGHT

0.9kg

PACKING

42*31.5*26cm/20pcs/18Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC

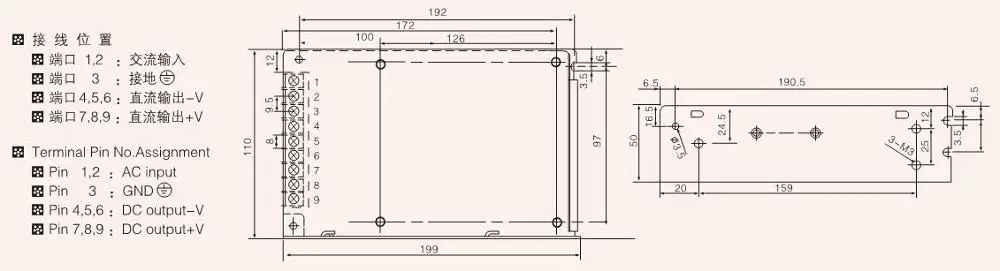

Dimension
