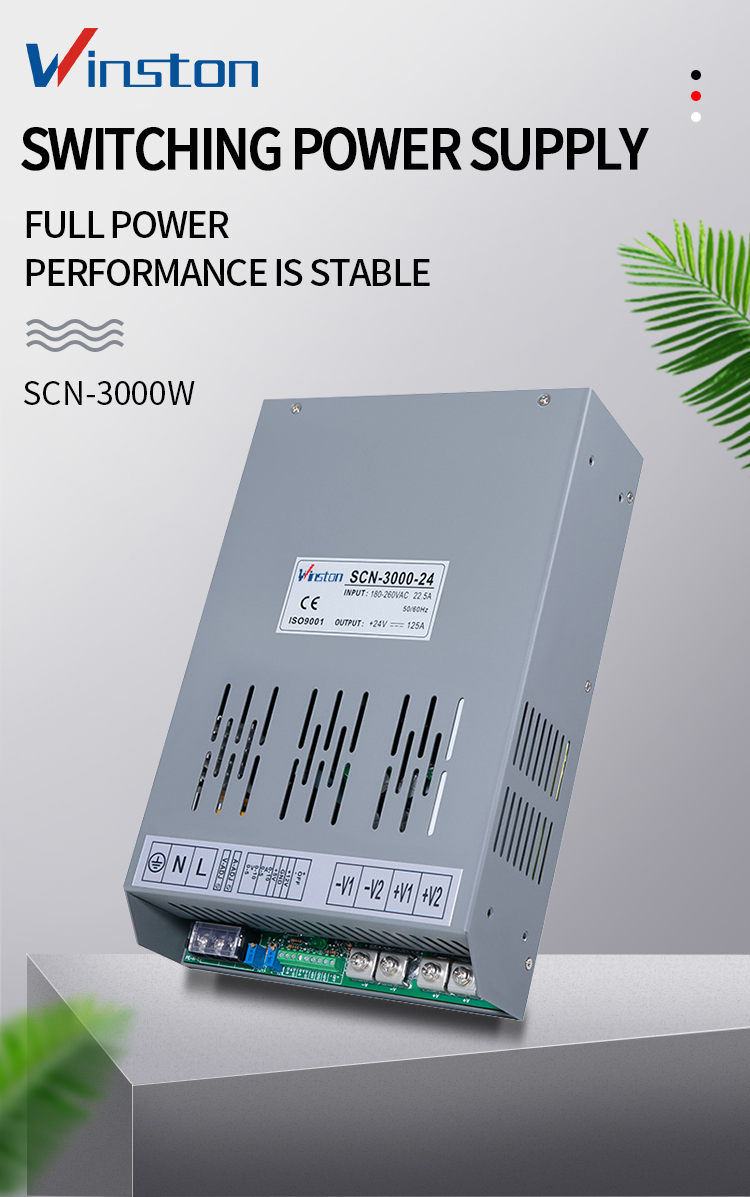

SCN-3000
Winston

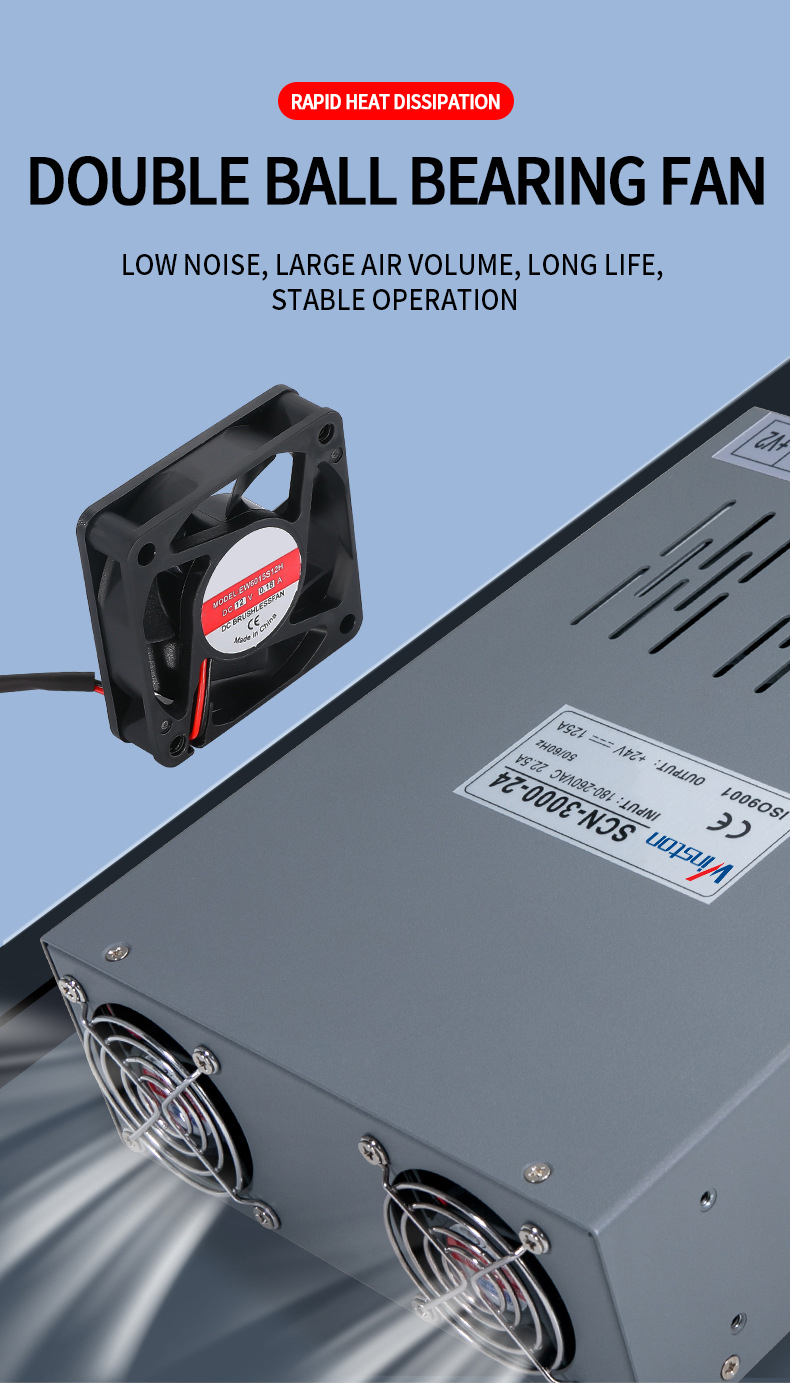

The SCN-3000 is a 3KW single-output housing AC to DC/DC to DC power supply. The full range of input voltage is 180-264VAC/ 250-370VDC. And can provide a DC output to meet most industrial needs. Each model can be cooled by internal speed control fan, operating temperature up to 50℃. Built-in functions such as output voltage. The current is adjustable. Remote switch control, auxiliary power supply and other features provide a variety of design flexibility.
● Voltage input range: 180-264VAC
● Protection type: short circuit/over current/over temperature
● Analog voltage control
● Main external switch control
SCN-3000-12 | SCN-3000-24 | SCN-3000-36 | SCN-3000-48 | SCN-3000-72 | SCN-3000-110 | SCN-3000-150 | SCN-3000-220 | ||
Output | Dc voltage | 12V | 24V | 36V | 48V | 72V | 110V | 150V | 220V |
Rated current | 250A | 125A | 83.3A | 62.5A | 41.7A | 27.3A | 20A | 13.6A | |
Current range | 0-250A | 0-125A | 0-83.3A | 0-62.5A | 0-41.7A | 0-27.3A | 0-20A | 0-13.6A | |
Rated power | 3000W | ||||||||
Ripple | 200mV | 200mV | 260mV | 350mV | 500mV | 850mV | 900mV | 1000mV | |
Constant current range | 6-12V | 12-24V | 18-36V | 24-48V | 36-72V | 55-110V | 75-150V | 110-220V | |
Voltage accuracy | ±1.0% | ||||||||
Linear adjustment rate | ±1.0% | ||||||||
Load adjustment rate | ±1.0% | ||||||||
Input | Start & rise time | 1500mS, 100mS/230VAC(full load) | |||||||
Voltage range | 180-264VAC/245-370VDC | ||||||||
Frequency range | 45Hz - 65Hz | ||||||||
Power factor | PF=0.65/230VAC(full load) | ||||||||
Efficiency | 85% | 86% | 87% | 89% | 90% | 90% | 91% | 91% | |
Alternating current | <30A | ||||||||
Leakage current | <3.0mA/240VAC | ||||||||
Protection | Short-circuit | Entry constant current | |||||||
Overtemperature | Turn off the output and automatically recover or restart after the temperature drops | ||||||||
Feature | Output voltage regulation | 0-13.2V | 0-26.4V | 0-39.6V | 0-52.8V | 0-79.2V | 0-121V | 0-165V | 0-242V |
Output constant current adjustment | 0-250A | 0-125A | 0-83.3A | 0-62.5A | 0-41.7A | 27.3A | 0-20A | 0-13.6A | |

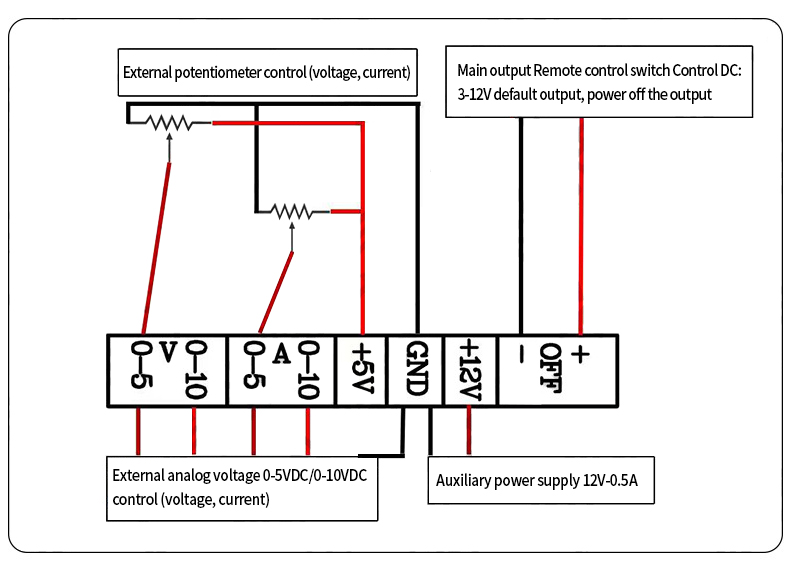

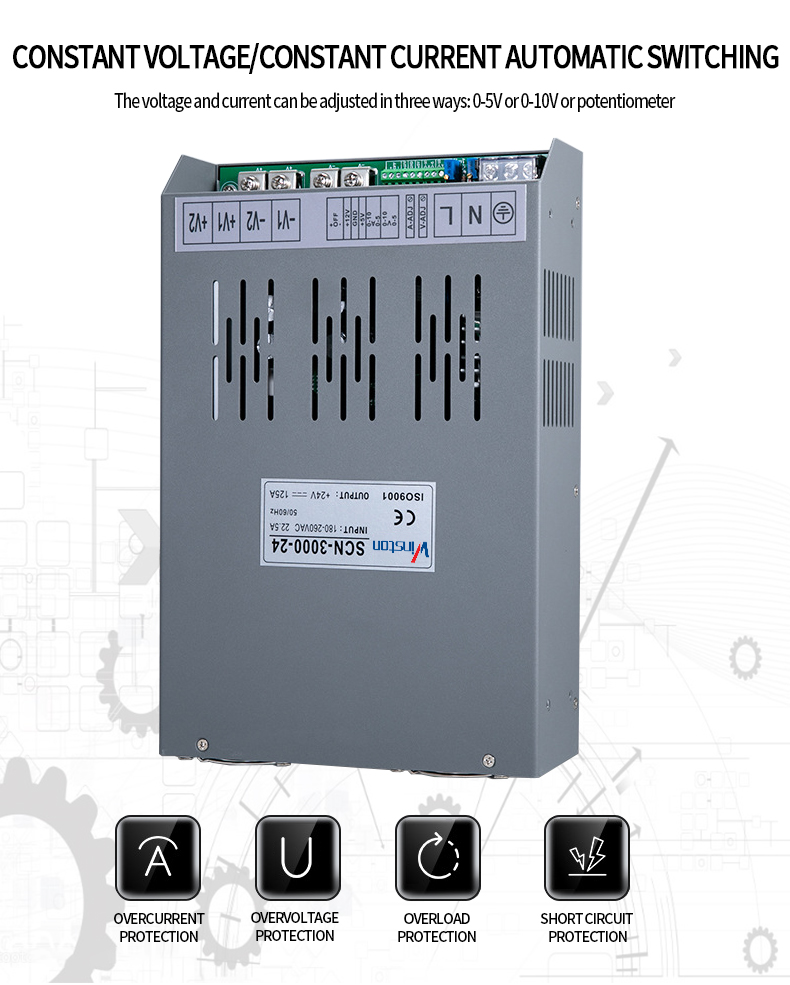

External potentiometer | External potentiometer control (voltage, current) | ||||||||
Analog voltage control | 0-5V/0-10V control (voltage, current) | ||||||||
Auxiliary power supply | 12V 0.5A | ||||||||
Remote control switch | Default power on, high power off (3V-12V) | ||||||||
Environment | Operating temperature | -20-+50℃ | |||||||
Working humidity | -20-90%RH Non-condensing | ||||||||
Storage temperature and humidity | -40-+85℃, 10-95% RH non-condensing | ||||||||
Vibration resistance | 10-500Hz, 2G 10 minutes/cycle, X, Y, Z axis 60 minutes each | ||||||||
Safety regulation | Insulation impedance | Input TO output: 100Mhms/500VDC/25℃/TO%RH | |||||||
Withstand voltage | I/P-0/P:1.2KVAC I/P-FG:1.2KVAC 0/P-FG:0.5KVAC | ||||||||
Electromagnetic compatibility emission | GB 9254 | ||||||||
Electromagnetic compatibility immunity | GB 9254 | ||||||||

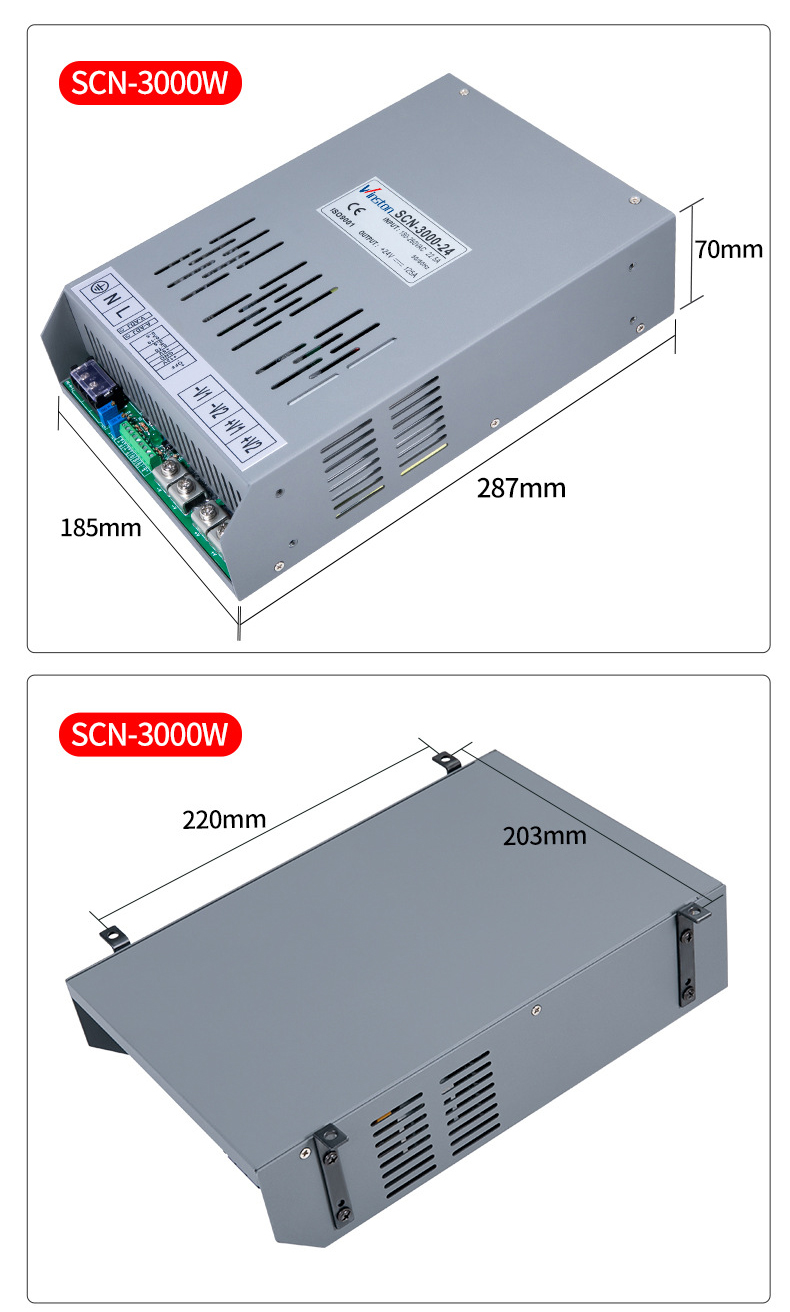

Other | Dimension | 285*185*70mm (L*T*H) | |||||||
Net weight | 2.4KG | ||||||||

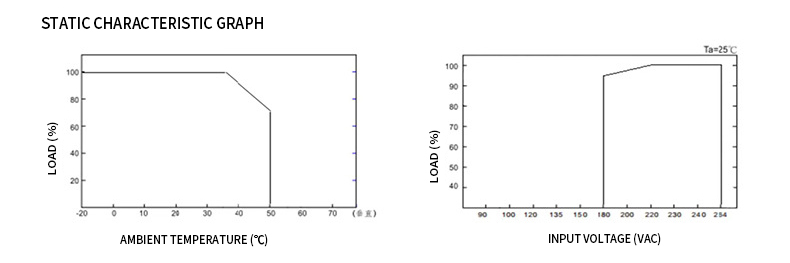

Remark | 1. All parameters are measured at a voltage input of 230VAC, rated load, and a temperature of 25℃ unless otherwise specified. 2.Ripple and noise voltage are measured using a 20MHz bandwidth oscilloscope with a 12-inch twisted pair cable and capacitors of 0.1uF and 47uF, also at a bandwidth of 20MHz. 3. Accuracy includes setting error, linearity adjustment rate, and load adjustment rate. 4. If the input voltage is low, the output needs to be derated. Please refer to the static characteristic diagram for more details. 5. The starting time is measured when the device is cold started; frequent switching may increase the starting time. |
Model number | Output voltage | Output current | Product size |
SCN-3000-12 | 0-12V | 250A | 287*185*70mm |
SCN-3000-15 | 0-15V | 200A | 287*185*70mm |
SCN-3000-24 | 0-24V | 125A | 287*185*70mm |
SCN-3000-36 | 0-36V | 83.3A | 287*185*70mm |
SCN-3000-48 | 0-48V | 62.5A | 287*185*70mm |
SCN-3000-60 | 0-60V | 50A | 287*185*70mm |
SCN-3000-72 | 0-72V | 41.6A | 287*185*70mm |
SCN-3000-80 | 0-80V | 37.5A | 287*185*70mm |
SCN-3000-90 | 0-90V | 33.3A | 287*185*70mm |
SCN-3000-110 | 0-110V | 27.2A | 287*185*70mm |
SCN-3000-150 | 0-150V | 20A | 287*185*70mm |
SCN-3000-220 | 0-220V | 13.6A | 287*185*70mm |
