500W S-500 High Efficiency Switching Power Supply LED Driver

Quantity:
  • S-500 Series
  • Winston

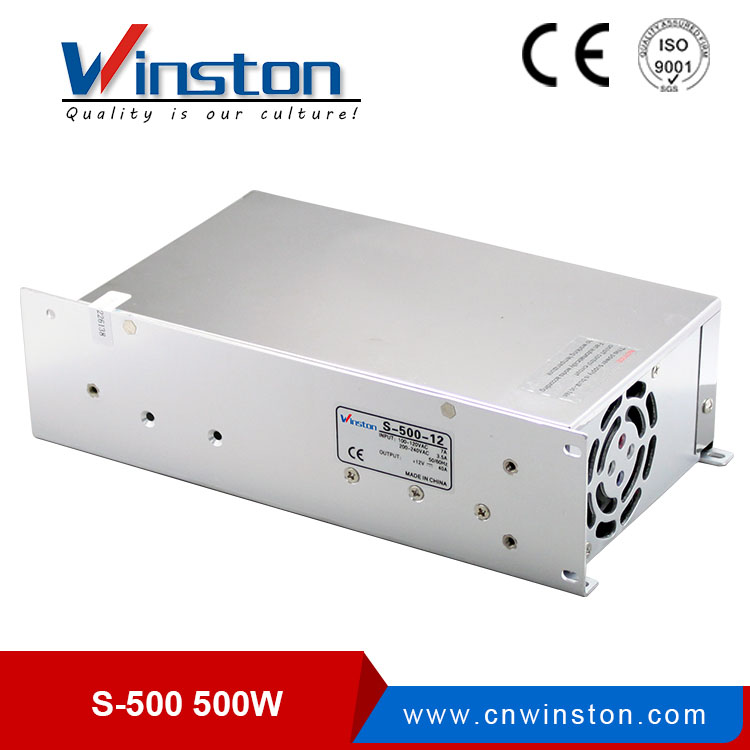

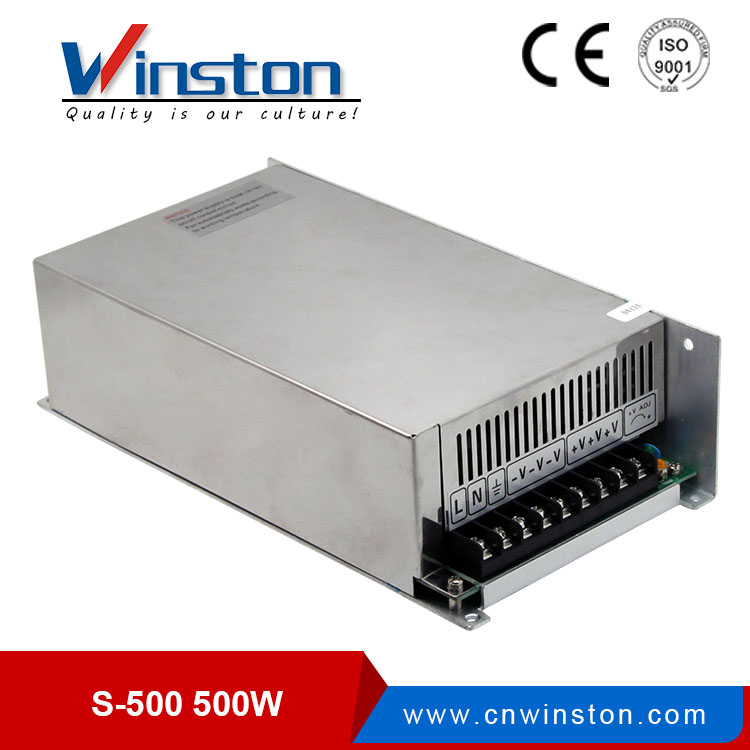

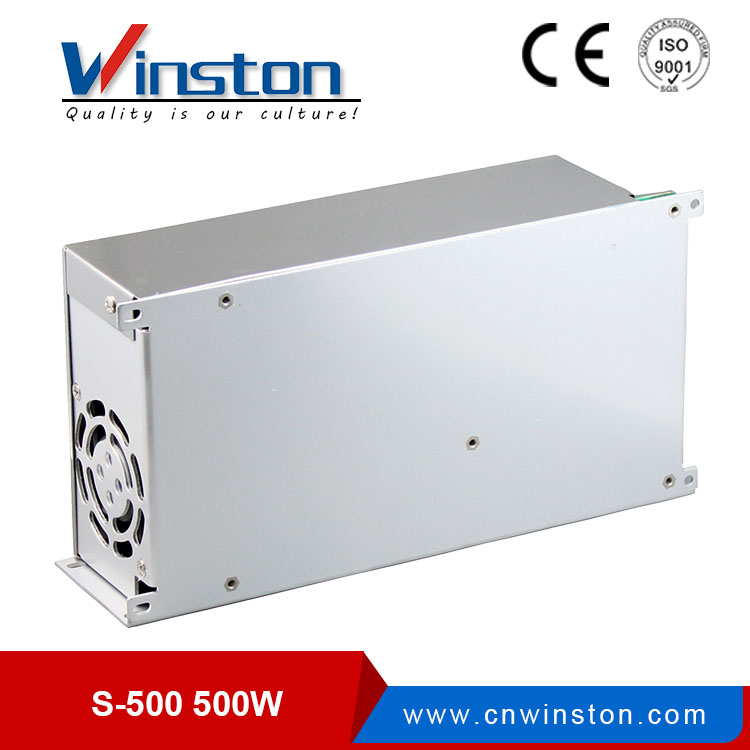

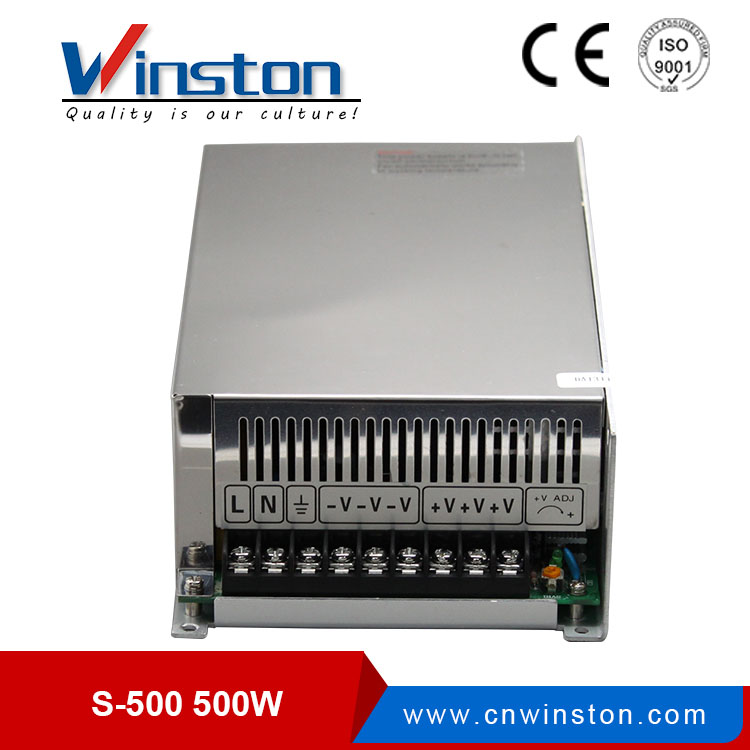

48V 500W S-500-48 10A High Efficiency Power Supply Unit


Technical Parameters


MODEL
S-500-12

S-500-24

S-500-36

S-500-48

DC VOLTAGE

12V

24V

36V

48V

CURRENT RANGE

0 ~ 40A

0 ~ 20A


0 ~ 14A


0 ~ 10A

EFFICIENCY

83%

85%

86%

87%

WAVE & NOISE

100mVp-p

150mVp-p

150mVp-p

150mVp-p
ADJUSTABLE RANGE FOR DC VOLTAGE
±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE HOLD UP TIME

800ms, 200ms,36ms/230VAC at full load

VOLTAGE RANGE

90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 25A/115VAC 50A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-150% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

105%-150% shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

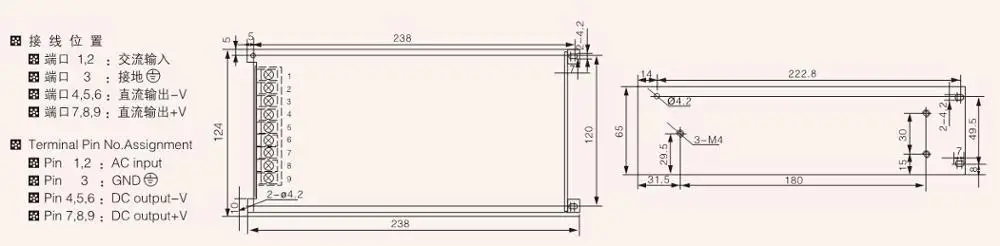

DIMENSION

238*124*65mm (L*W*H)

WERIGHT

1.35kg

PACKING

44*26*27cm/12pcs/16.2Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a
