S-400 Series
Winston

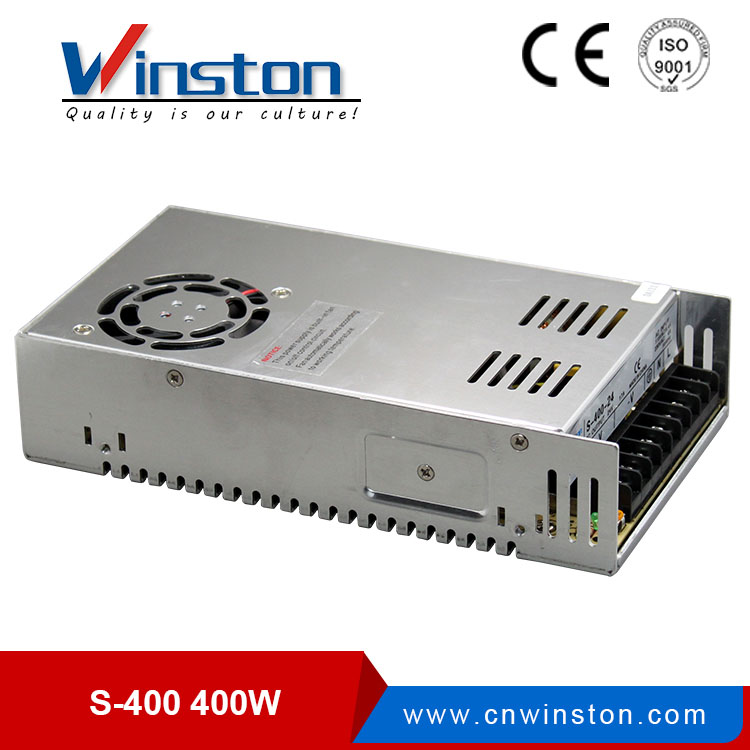

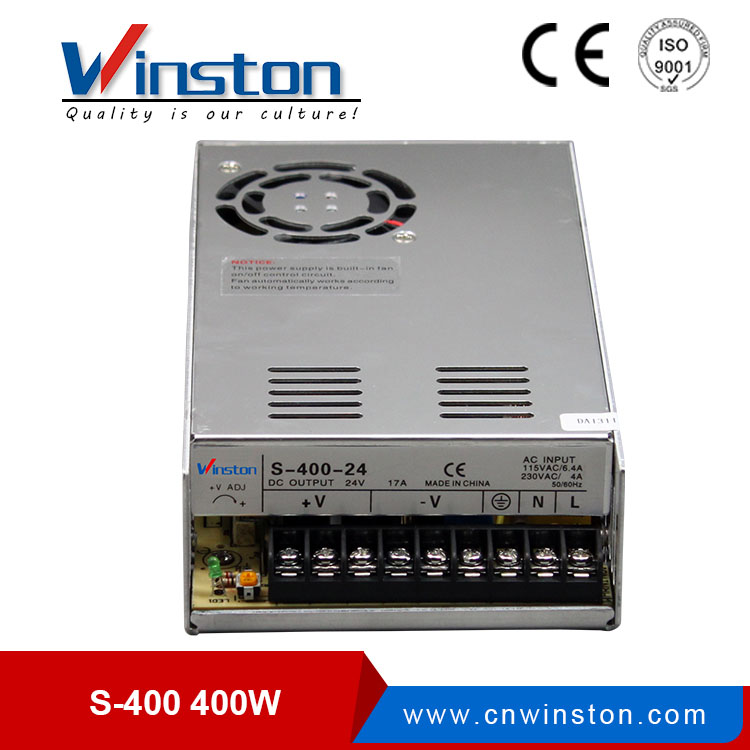

400W S-400 DC Regulated Switch Mode Power Supply For Indoor Use
| MODEL | S-400-5 | S-400-12 | S-400-24 | S-400-48 |
DC VOLTAGE | 5V | 12V | 24V | 48V |
CURRENT RANGE | 0 ~ 60A | 0 ~ 32A | 0 ~ 16.5A | 0 ~ 8.3A |
EFFICIENCY | 73% | 74% | 81% | 83% |
WAVE & NOISE | 100mVp-p | 100mVp-p | 120mVp-p | 150mVp-p |
| ADJUSTABLE RANGE FOR DC VO;LTAGE | ±10% | ±10% | ±10% | ±10% |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
LOAD REGULATION | ±1% | ±0.5% | ±0.5% | ±0.5% |
SETUP, RISE HOLD UP TIME | 200ms, 50ms,20ms/230VAC at full load | |||
VOLTAGE RANGE | 90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | |||
IMPACT CURRENT | Cold start current 25A/115VAC 50A/230VAC | |||
WORKING TEMP. | -10 ~ +50ºC | |||
OVERLOAD PROTECTION | 105%-150% cut off the output , automatic recovery | |||
OVER VOLTAGE PROTECTION | 105%-150% shunt down O/P voltage,re-power on to recover | |||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms | |||
DIMENSION | 215*115*50mm (L*W*H) | |||
WERIGHT | 1.1kg | |||
PACKING | 45.5*31.5*26cm/20pcs/22Kg | |||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed i | ||||
Packaging & Shipping
