SE-600 600W High Power Industrial Power Supply Circuit

Quantity:
  • SE-600 Series
  • Winston

12V 600W SE-600-12 50A High Power Power Supply SMPS


Technical Parameters


MODEL
SE-600-5

SE-600-12

SE-600-24

SE-600-48

DC VOLTAGE

5V

12V

24V

48V

CURRENT RANGE

0 ~ 100A

0 ~ 50A


0 ~ 25A


0 ~ 12.5A

EFFICIENCY

78%

83%

87%

88%

WAVE & NOISE

100mVp-p

100mVp-p

120mVp-p

150mVp-p
ADJUSTABLE RANGE FOR DC VOLTAGE
±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1%

±0.5%

±0.5%

±0.5%

SETUP, RISE HOLD UP TIME

100ms, 50ms,16ms/230VAC at full load

VOLTAGE RANGE

90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 25A/115VAC 50A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-150% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

105%-150% shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

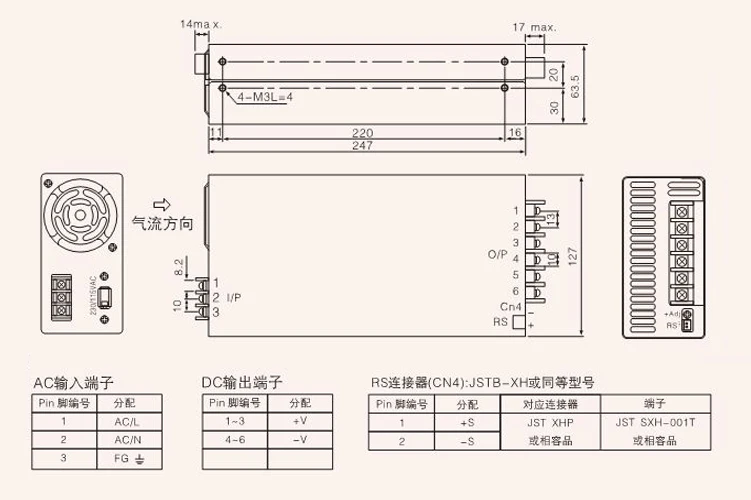

DIMENSION

247*127*63.5mm (L*W*H)

WERIGHT

2.17kg

PACKING

37.5*31*25.5cm/6pcs/13.5Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still me





Packaging & Shipping



Professional manufacturer, quality is our culture!
