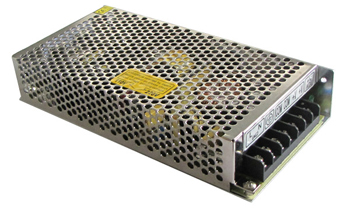

S-145 Single output switching power supply





Model		S-145-5	S-145-12	S-145-15	S-145-24	S-145-36	S-145-48
Output	DC voltage	5V	12V	15V	24V	36V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%
	Rated current	25A	12A	9.7A	6A	4A	3A
	Current range	0~25A	0~12A	0~9.7A	0~6A	0~4A	0~3A
	Rated power	125W	144W	145.5W	144W	144W	144W
	Ripple&noise	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	-9%~+10%	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	90~132VAC/180~264VAC(selected by switch)，255~373VDC
	frequency	47~63HZ
	AC current	3.2A/115VAC，1.6A/230VAC
	efficiency	78%	80%	80%	82%	82%	83%
	Inrush current	Cold start current 18A/115VAC，36A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	overload	Rated output power115%~150% start over load protection
		protection type：cutoff output，recovery after restart power
	Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V	54.8~56.6V
		protection type:hiccup mode,auto-recovery after fault condition is removed
	-----	-----
		-----
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storagetemp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	EN55022,CLASS A
Others	Dimension	199*98*38mm (L*W*H)
	Weight/packing	0.7kg/30pcs/22kg/0.034 m³/1.2CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
