PVT2
Winston
Products Description
· Simple on-site processing;
· Mating safety provided by keyed housings;
· Mutiple plugging and unplugging cycles;
· Accomodates PV cable with deferent insulation diamaters;
· High current carrying capacity;
· Rated current:up to 30A
· Acomodates PV cable with different insulation diameters.
Specifications
| Item | SOLAR CONNECTOR |
| Model Number | PVT2 |
| Rated Current | 40A |
| Test Voltage | 1000V DC |
| Overvoltage Type/Pollution Degree | 6000V(50Hz, 1min) |
| Contact Resistance Of Plug Connector | CAT III /2 |
| Contact Resistance Of Plug Connector | 1mΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | II |
| Insertion Force/Withdrawal Force | ≤ 50N/ ≥ 50N |
| Connecting System | Crimp connection |
| Temperature Range | -40℃ ~ +125℃ |

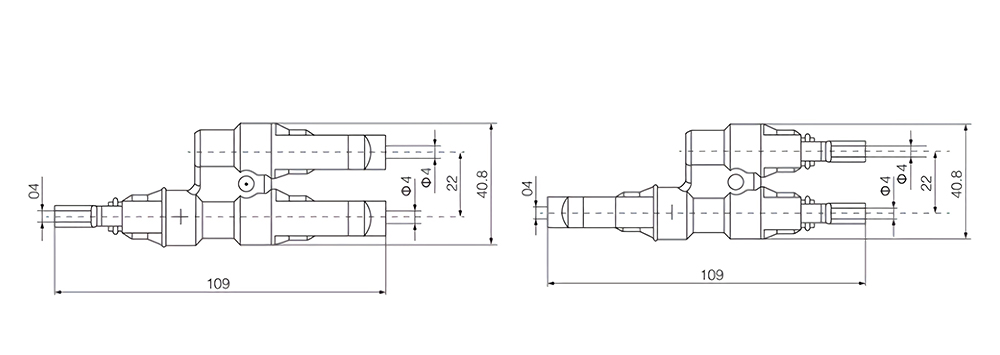

Dimension
Packaging & Shipping
