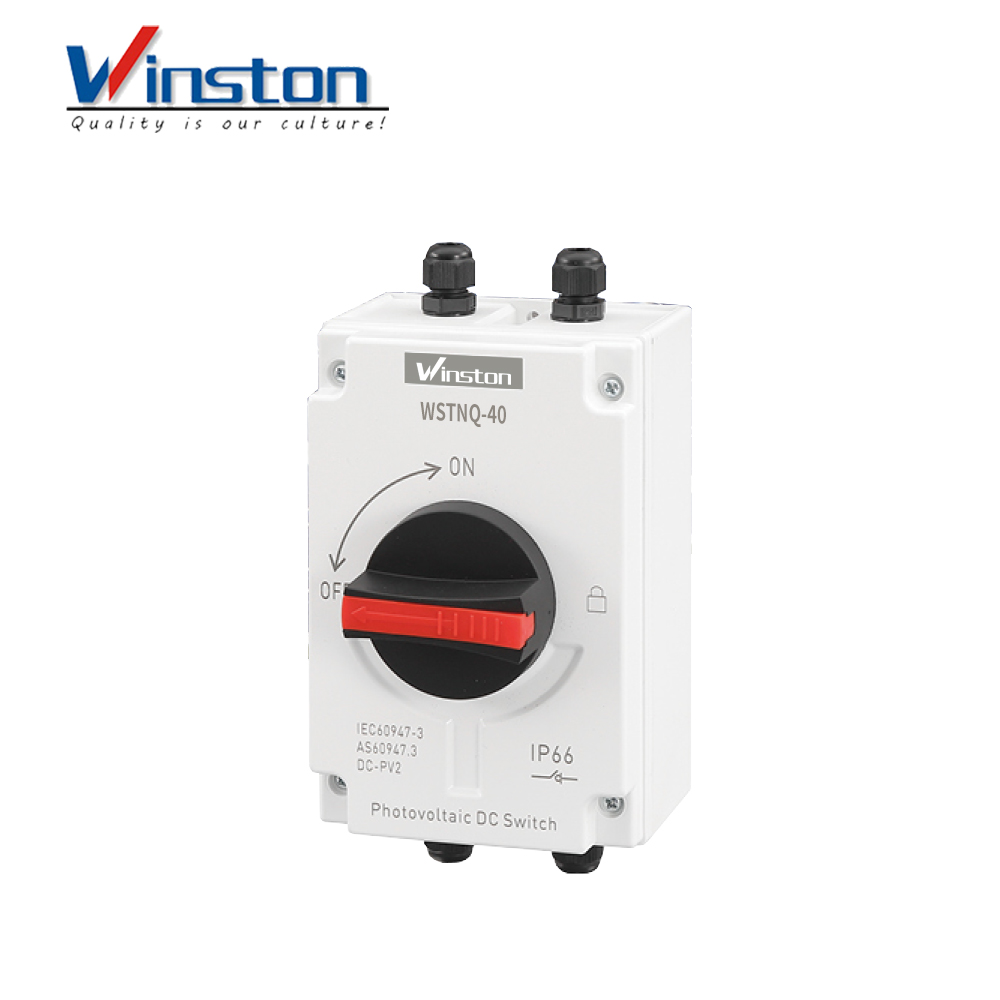

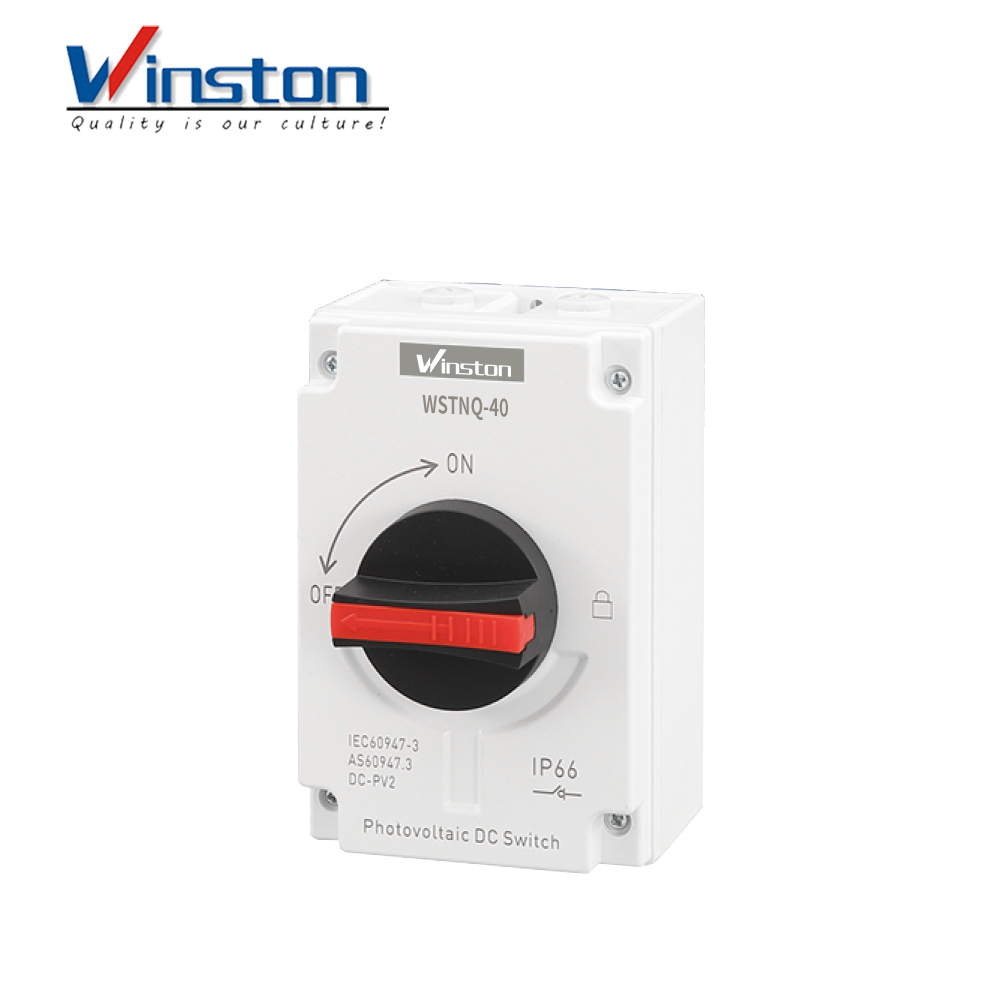

WSTNQ-40
Specifications
| Main Parameters | WSTNQ-40 | ||
| Rated insulation voltage | Ui | V | 1500 |
| Rated thermal current | Ith | A | 32 |
| Rated impulse withstand voltage | Uimp | V | 8000 |
| Rated short-circuit making capacity | Icw | A | 1000 |
| Maximum cable cross sections (incl. jumper) | |||
| Solid or standard | mm2 | 2.5-6 | |
| Flexible | mm2 | 2.5-6 | |
| Flexible (+ multicore cable end) | mm2 | 2.5-6 | |
| Torque | |||
| Tightening torque terminal screws M4. | Nm | 1.2-1.8 | |
| Tightening torque shell mounting screws | Nm | 1.5-2.0 | |
| Tightening torque knob screws | Nm | 0.5-0.7 | |
| Switching on or off Torque | Nm | 0.9-1.3 | |
| The wiring Torque on Base | Nm | 1.1-1.4 | |
| General parameters | |||
| Knob positions | OFF at 9hr,ON at 12 hr | ||
| Mechanical life | 10000 | ||
| Number of DC poles | 2 or 4 | ||
| Operation temperature | -40 to +85 | ||
| Storage temperature | -40 to +85 | ||
| Pollution degree | ℃ | 2 | |
| Overvoltage category | ℃ | III | |
| IP rating of shafte and mounting nul | IP66 | ||
Packing Specification Sheet
| Specs | Model | PCS/CTNS | DIM.(mm) | G.W.(kg) | P.S. |
| DC1000V/32A | WSTNQ-40 | 20 | 570*340*260 | 15 | No waterproof connector |
| DC1000V/32A | WSTNQ-40 | 20 | 565*275*495 | 15 | With waterproof connector |
| DC1000V/32A | WSTNQ-40 | 20 | 565*275*495 | 15.5 | Basics |
| DC1000V/32A | WSTNQ-40 | 20 | 565*275*495 | 23 | 2 in 2 out (with wire) |
| DC1000V/32A | WSTNQ-40 | 20 | 595*400*360 | 19 | 2 in 2 out (MC4) |
