63A 2P 2pole MCB miniature circuit breaker for solar pv power system

1. WST7-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage can be up to 1200V.
2. It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electricequipment.
3. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China,our products in the case grade rating voltage is highest compared to the same products.
Pole:
Availability:
Quantity:
  • WST7-63

  • Winston

63A 2P 2pole MCB miniature circuit breaker for solar pv power system


Products Description


1. WST7-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage can be up to 1200V.

2. It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electricequipment.
3. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China,our products in the case grade rating voltage is highest compared to the same products.


banner-of-solar-products


Features


1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic


Specifications


Item
Dc circuit breaker
Model Number
WST7-63
Pole
1P,2P,3P,4P
Rated Current(In)
1A,3A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Operating Voltage
DC12V-DC1200V
Standard
IEC/EN60947
Breaking Capacity
6KA
Characteristic Curve
B,C,D
Working Temperature
-5 to +40
Protection Degree
IP20
Installation
35MM DIN RAIL

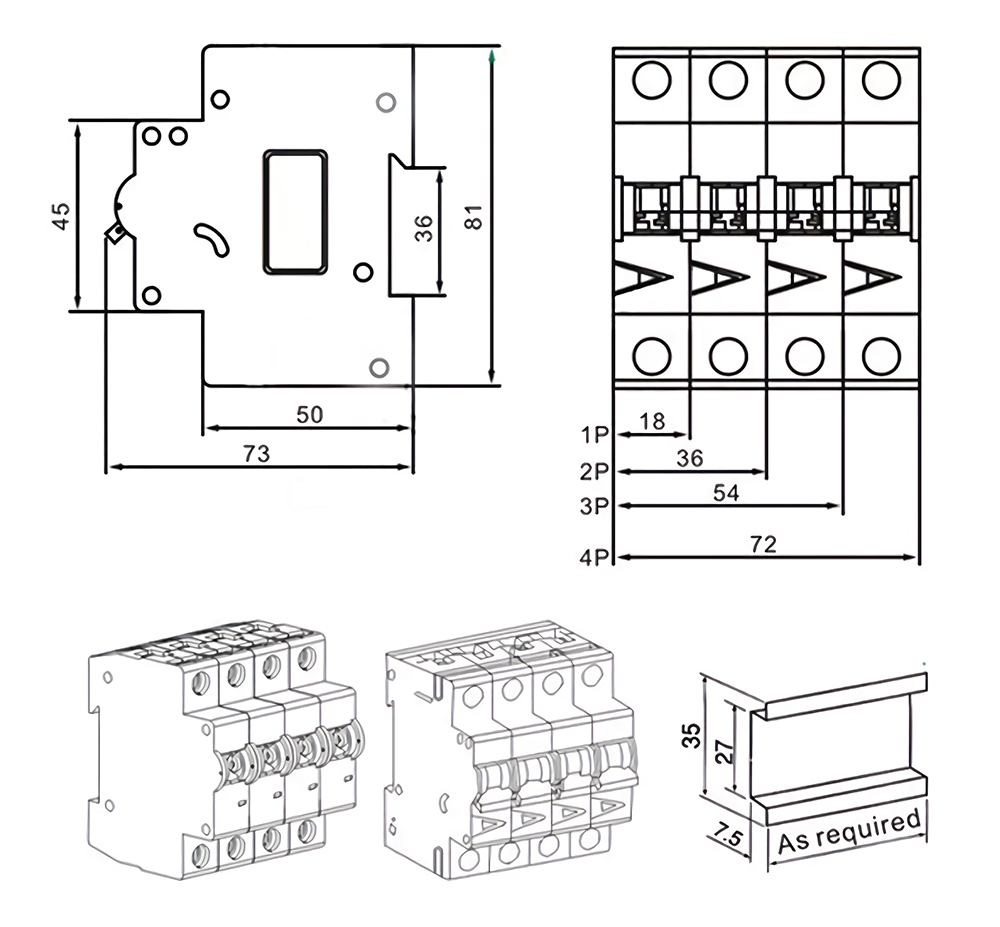

Dimension


3dd23d2b85abm
