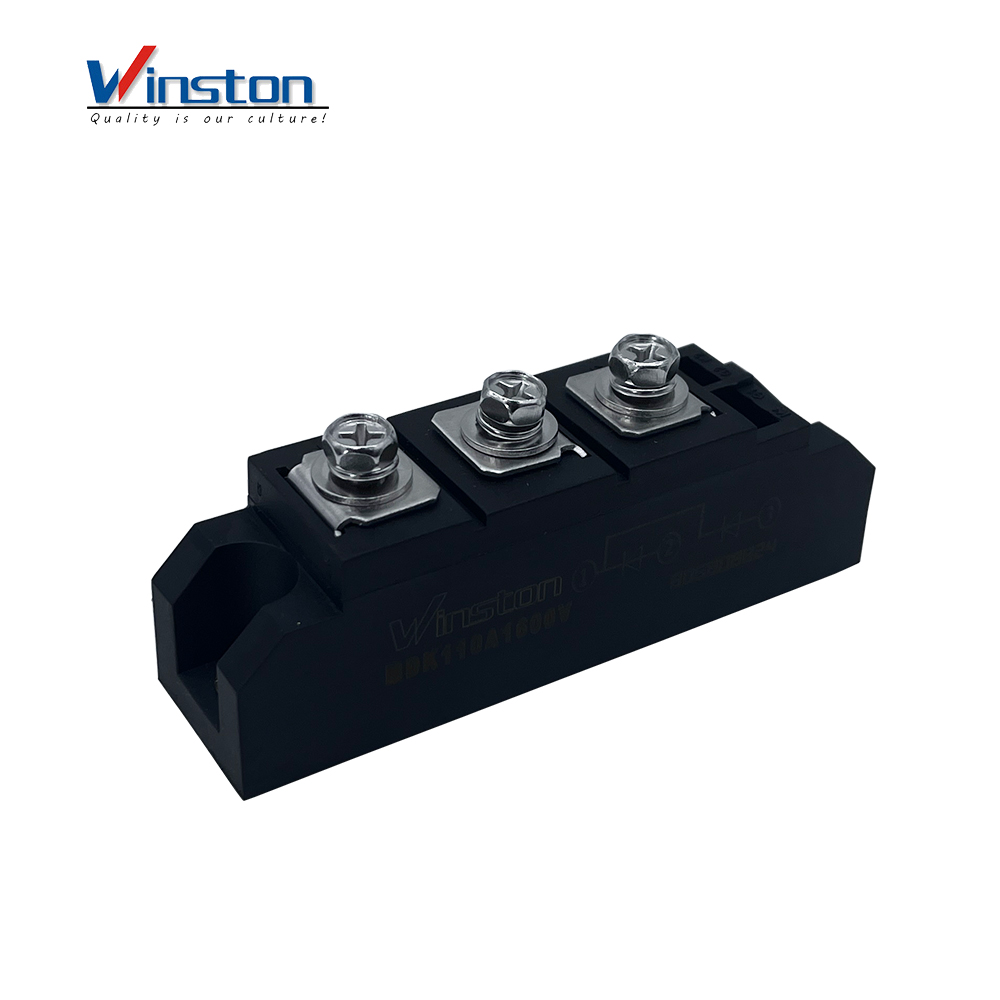

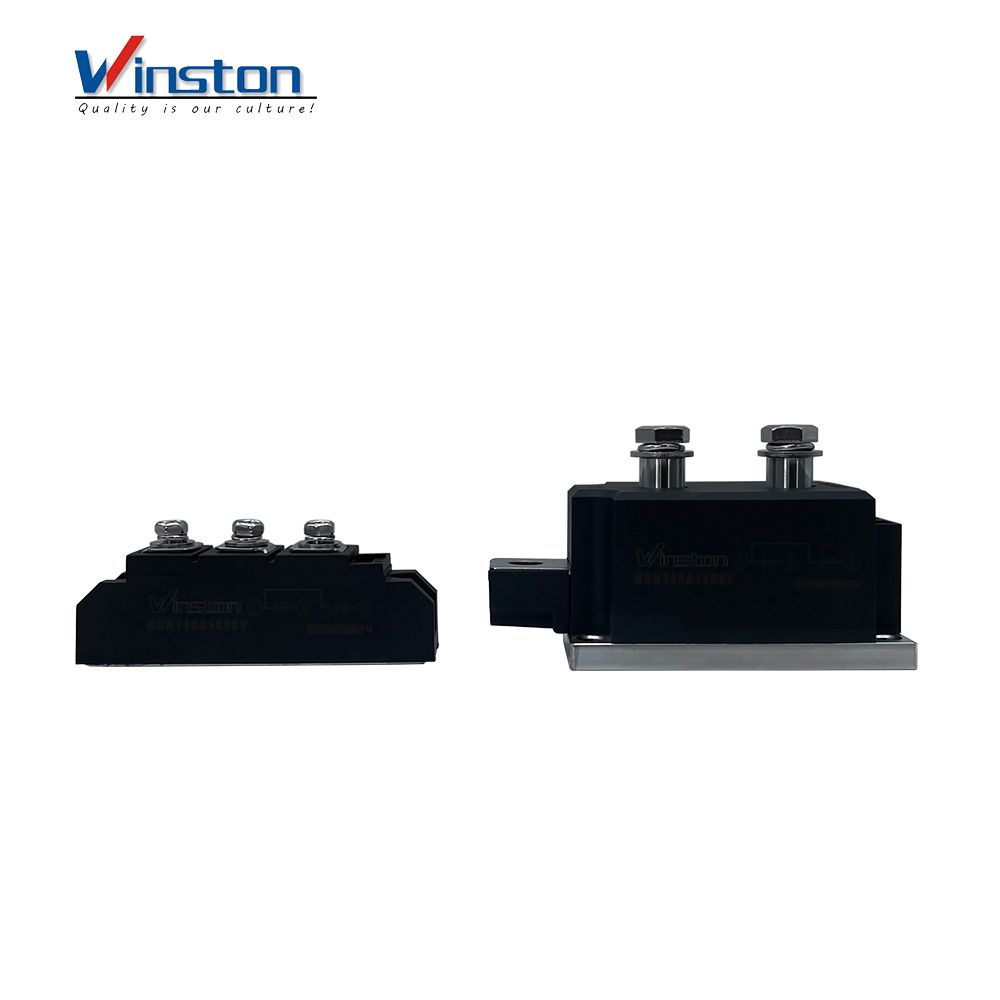

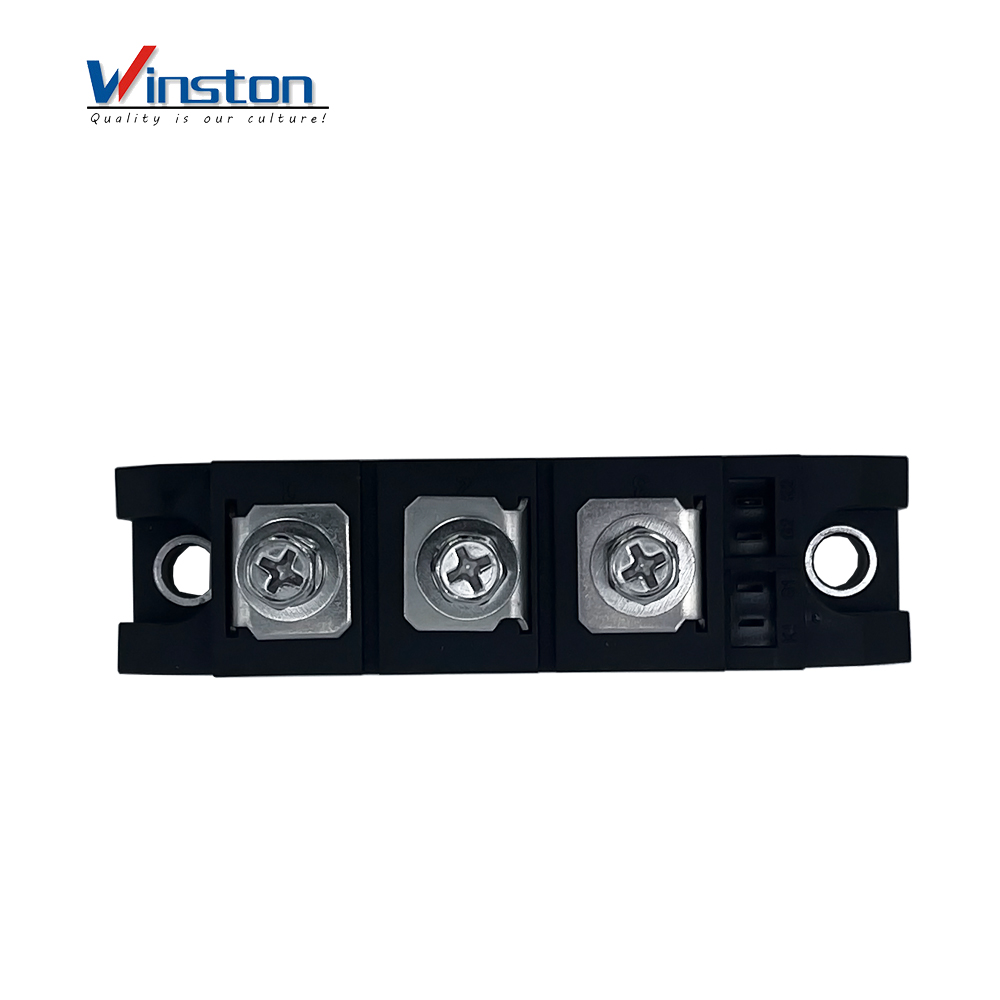

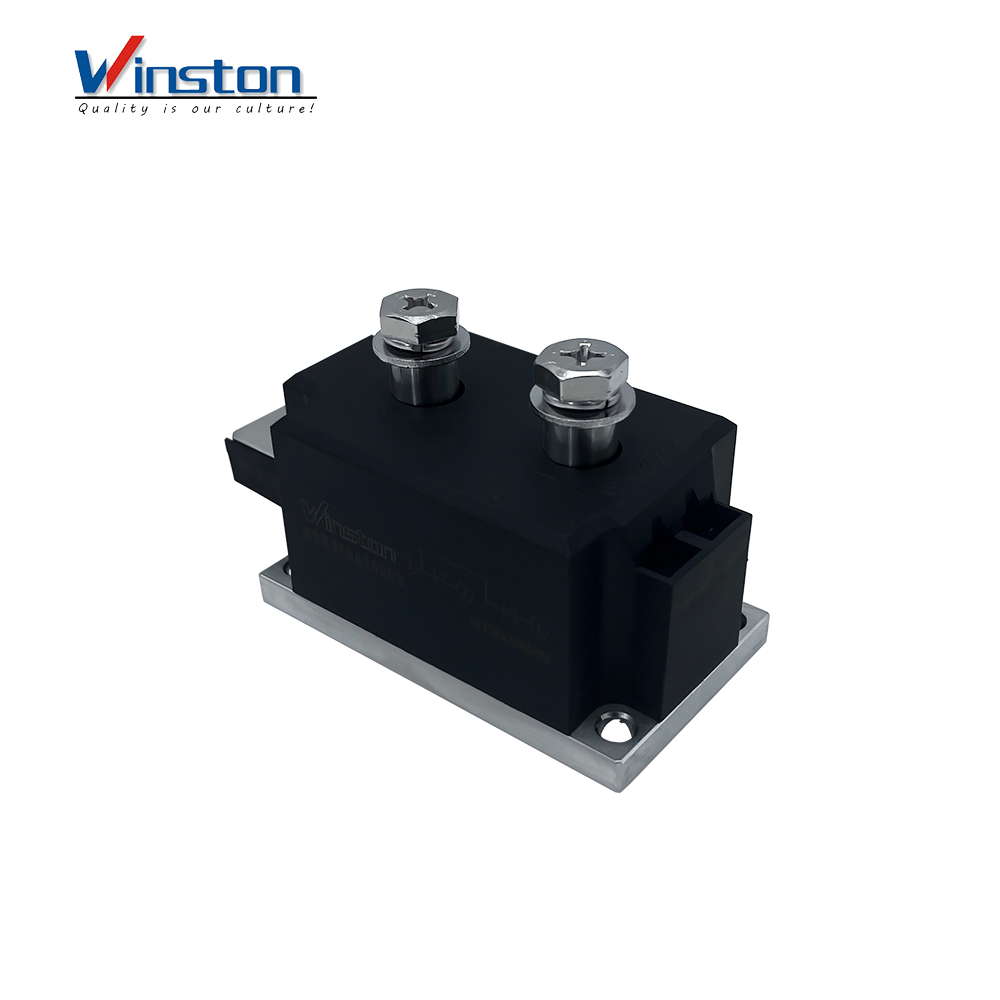

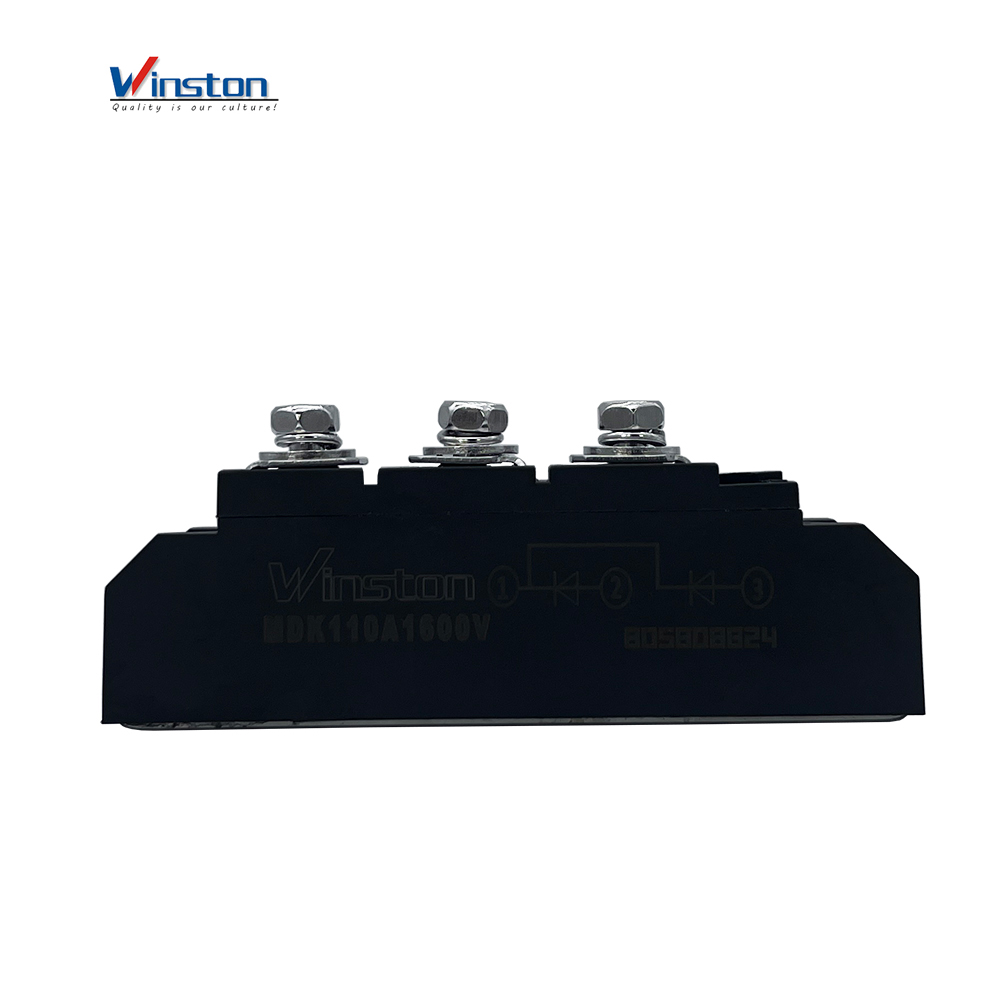

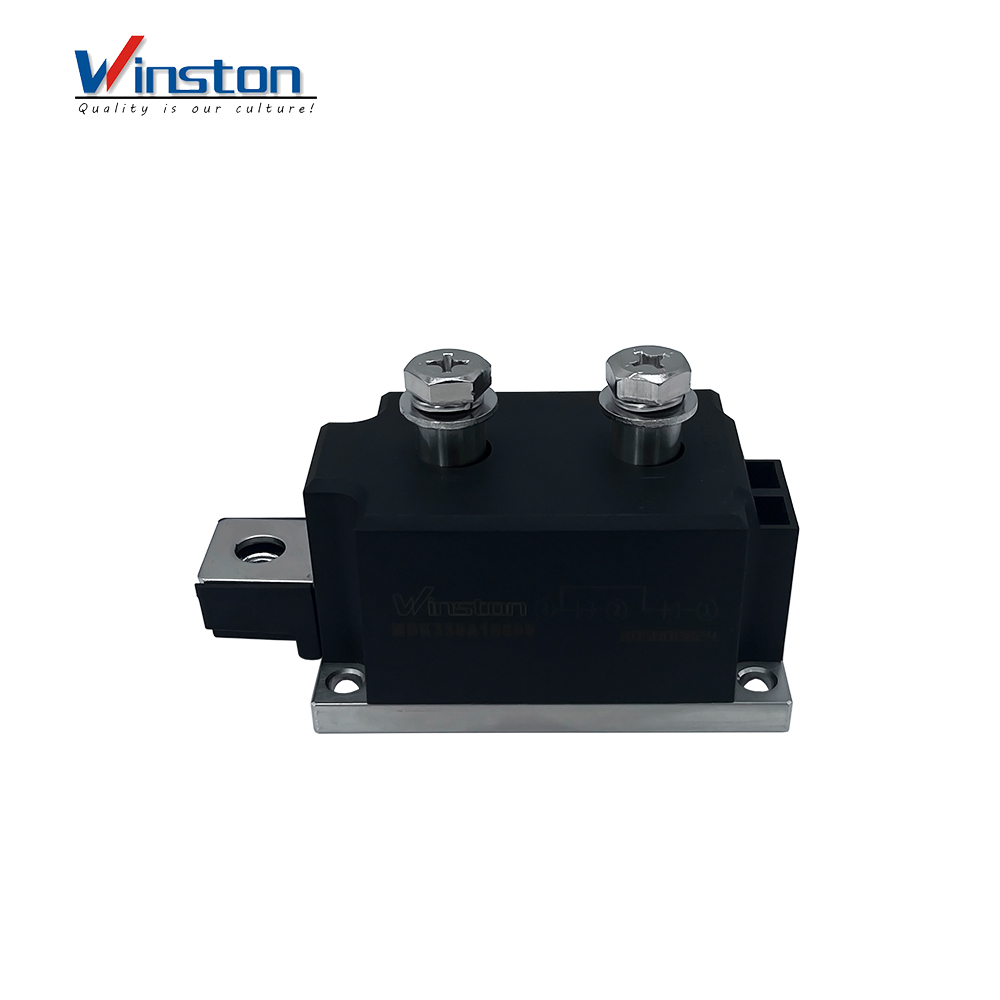

MD/MDK 25A - 1000A 2500V PV Photovoltaic Anti Diode For PV Junction Box

● Chips are electrically insulated from bottom plate
● Sealin compliance with international standard, pressure type;
● Excellent power/volume ratio;
● Maximum junction temperature up to 150℃, low forward woltage drop:

Availability:

Quantity:



Inquire Add to Basket

Model:
MD/MDK
Brand:
Winston

Product Description

Features

 ● Chips are electrically insulated from bottom plate   ● Sealin compliance with international standard, pressure type;
  ● Excellent power/volume ratio;
  ● Maximum junction temperature up to 150℃, low forward woltage drop:

Application

 ● PV Junction Box ● PV DC Cabinet   ● PV DC System

Specifications

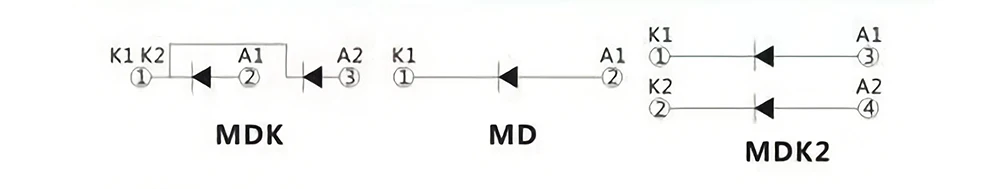

Type	IT(AV)	VRRM	VTM@IFM	IRRM IF(RMS)	IFSM	Rjc	Tjm	Viso	Outline
Type	A	V	V A	mA A	A×100	℃/w	℃	V(AC)	Fig
MD/MDK 25A	25	1600-2500	0.9 80	8 41	0.65	1.300	1.300	2500	4
MD/MDK 55A	55	1600-3000	0.9 170	8 86	1.30	0.700	0.700	2500	4
MD/MDK 90A	90	1600-3000	0.9 270	8 141	2.30	0.470	0.470	2500	4
MD/MDK 110A	110	1600-3000	0.9 330	8 173	2.60	0.350	0.350	2500	4
MD/MDK 130A	130	1600-3000	1.1 410	12 212	3.90	0.310	0.310	2500	5
MD/MDK 160A	160	1600-3000	1.1 480	12 251	6.00	0.230	0.230	2500	5
MD/MDK 200A	200	1600-3500	1.1 600	12 314	8.00	0.210	0.210	2500	7
MD/MDK 250A	250	1600-3500	1.38 750	20 393	11.0	0.140	0.140	2500	7
MD/MDK 300A	300	1600-3500	1.38 900	20 471	12.5	0.130	0.130	2500	7
MD/MDK 350A	350	1600-3500	1.38 1050	30 550	15.0	0.110	0.110	2500	8
MD/MDK 500A	500	1600-3500	1.38 1500	40 785	21.0	0.90	0.90	2500	8
MD/MDK 600A	600	1600-3500	1.38 1500	40 785	12.0	0.130	0.130	2500	9
MD/MDK 800A	800	1600-3500	1.45 1800	40 942	15.0	0.110	0.110	2500	11
MD/MDK 1000A	1000	1600-3500	1.45 2400	40 1256	18.0	0.080	0.080	2500	12
