CB-PV
Winston
Products Description
Solar PV combiner box is water proof, dust proof, with the function of overload protection, lightning protection, over current protection, etc. The combiner box meets the requirement of long time use for both outdoor and indoor situation.
Specifications
| Model | CB-PV2 | CB-PV4 | CB-PV6 | CB-PV8 | CB-PV10 | CB-PV12 | CB-PV14 | CB-PV16 | CB-PV18 |
| Number of DC Inputs | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| Material of Box | Coated Iron | ||||||||
| Protection Level | IP65/IP66 | ||||||||
| IK Impact Resistance Class | IK08 | ||||||||
| Max Rated Voltage DC | 1000V | ||||||||
| DC Fuse | 15A (Recommend 15A, support other ampre) | ||||||||
| Fuse Holder | 1000V DC 30 A | ||||||||
| DC Breaker | 32A | 63A | 100A | 125A | 150A | 200A | 225A | 250A | 275A |
| Surge Protection DC | Type II In=20KA, Imax=40KA, Ucpv=1000V DC | ||||||||
| Over-Voltage Category | Cat III | ||||||||
| Diode for The Function of Anti-Reflux | Built-in | ||||||||
| Connection Type DC Input | PG09, IP68 | ||||||||
| Input Cable Size for Negative and Positive | Φ4-8mm | ||||||||
| Number of DC Outputs | 1 (Support customize for output number) | ||||||||
| Connection Type DC Output | PG11 | PG11 | PG13.5 | PG19 | PG19 | PG25 | PG25 | PG25 | PG29 |
| Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 | ||||||||
| Ambiant Temperature Range/Humidity | Temperature: -20°C~+ 60°C, Humidity: 0-99% | ||||||||
| Altitude | ≤2000m. Derating for above 2000m. | ||||||||
| Installation | Wall mounting/Padlockable latch | ||||||||
Features
1. IP65 design, waterproof, anti-dust and lightning protection
2. Strict test for high and low temperature
3. Convenient installation, the simplified wiring system, the easiest way of wiring.
For different projects, you can choose 6ways, 10ways, 12ways, 16ways, 24ways and so on to meet your actual requirement.

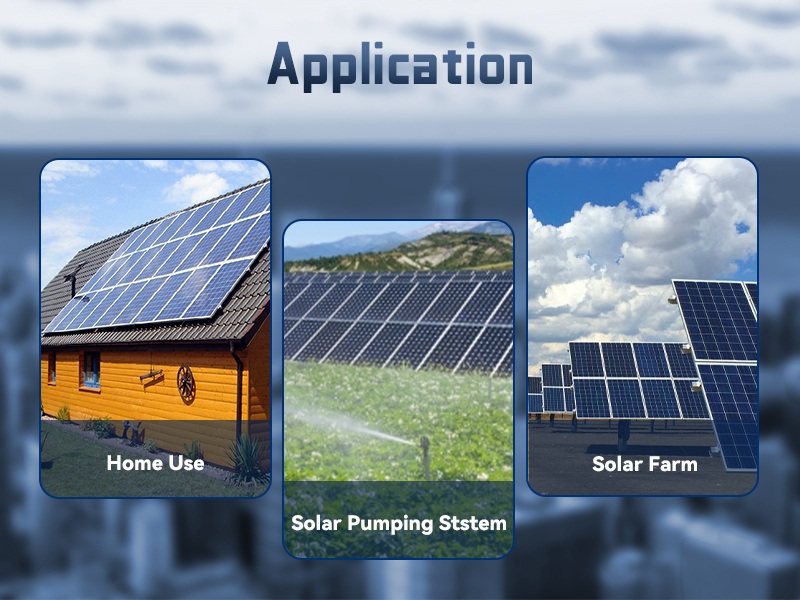

Application
The function of the combiner box is to converge current. Specifically, the user connects a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic string, and then connects several photovoltaic strings in parallel to the photovoltaic combiner box. After converging in the photovoltaic combiner box, it passes through the controller, DC power distribution cabinet, and photovoltaic inverter. Together, they form a complete photovoltaic power generation system to achieve power supply

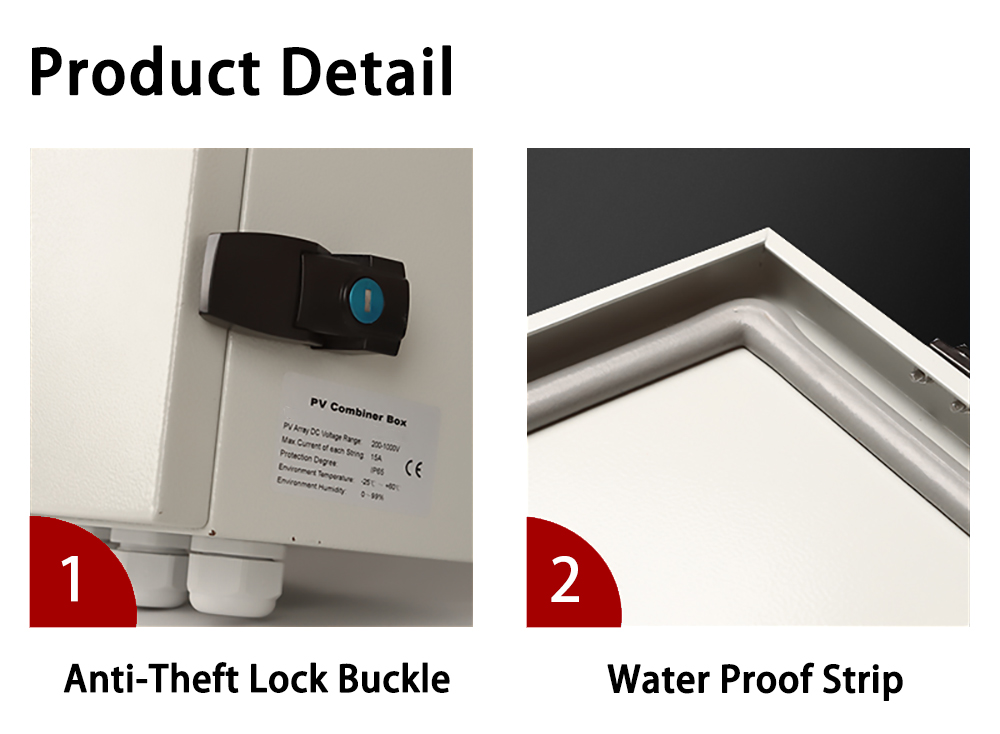

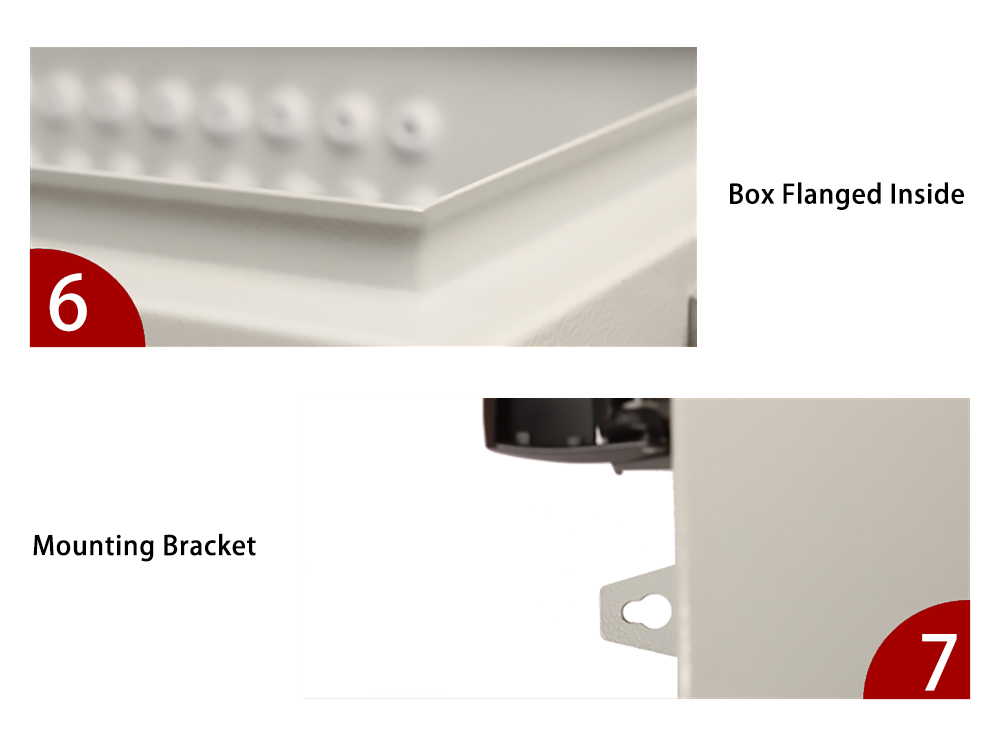

Details Images
Packaging & Shipping
