SPD-20
Winston
Products Description
SPD series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 380v.It protect to indirect and direct lightning effect or other transient over voltage.
Specifications
| Name | AC surge protector |
| Model Number | SPD-20 |
| Pole | 2P 3P 4P |
| Rated Operating Voltage Un(V) | 380V/220V |
| Response times | ≤25 |
| Test Stardard | IEC61643-1/GB18802-1 |
| Operating Environment | -40 degree to + 85 degree |
| Max Connection Line | 35mm2 hard wire/35mm2 strand wire copper line |
| Recommended Connection Line | 16mm2 hard wire/25mm2 strand wire copper line |
| Installation | Standard Rail 35mm |
| Material of outer covering | Burning -proof Nylon |

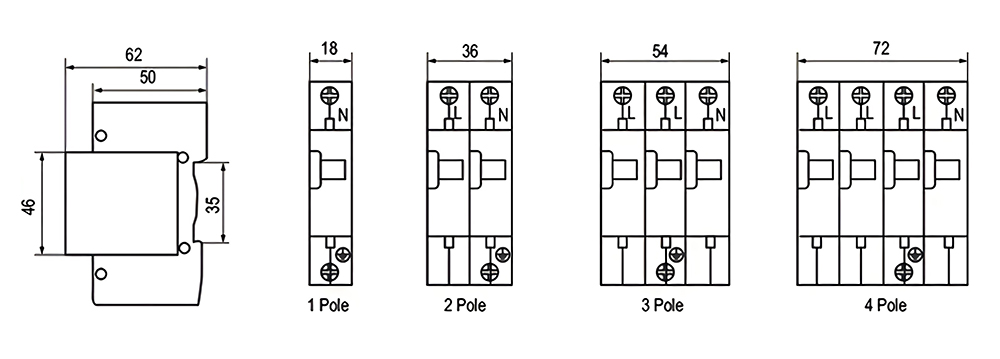

Dimension
Packaging & Shipping
Products Description
SPD series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 380v.It protect to indirect and direct lightning effect or other transient over voltage.
Specifications
| Name | AC surge protector |
| Model Number | SPD-20 |
| Pole | 2P 3P 4P |
| Rated Operating Voltage Un(V) | 380V/220V |
| Response times | ≤25 |
| Test Stardard | IEC61643-1/GB18802-1 |
| Operating Environment | -40 degree to + 85 degree |
| Max Connection Line | 35mm2 hard wire/35mm2 strand wire copper line |
| Recommended Connection Line | 16mm2 hard wire/25mm2 strand wire copper line |
| Installation | Standard Rail 35mm |
| Material of outer covering | Burning -proof Nylon |
Dimension
Packaging & Shipping
