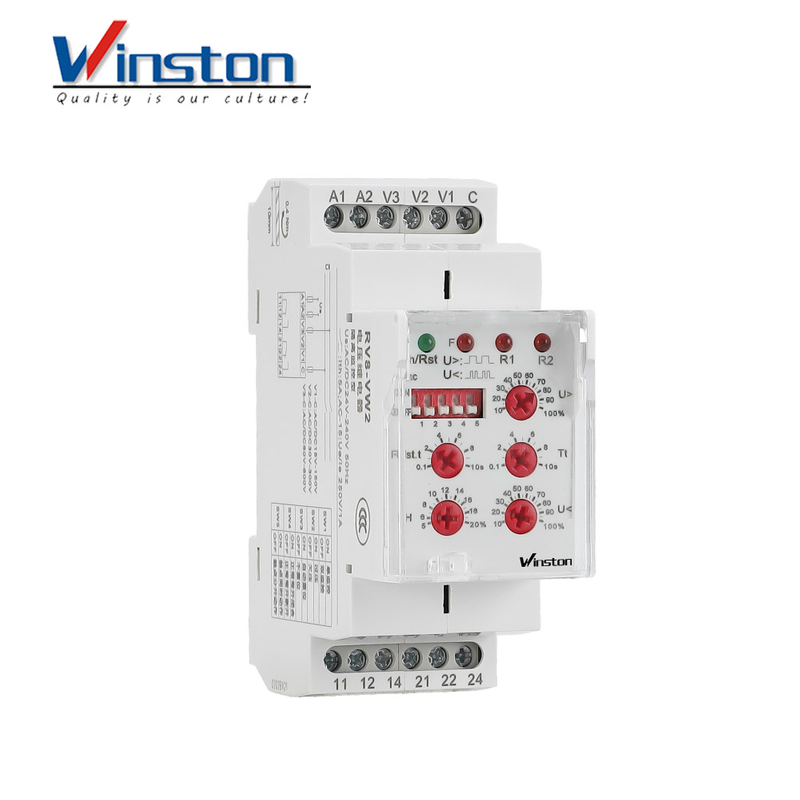

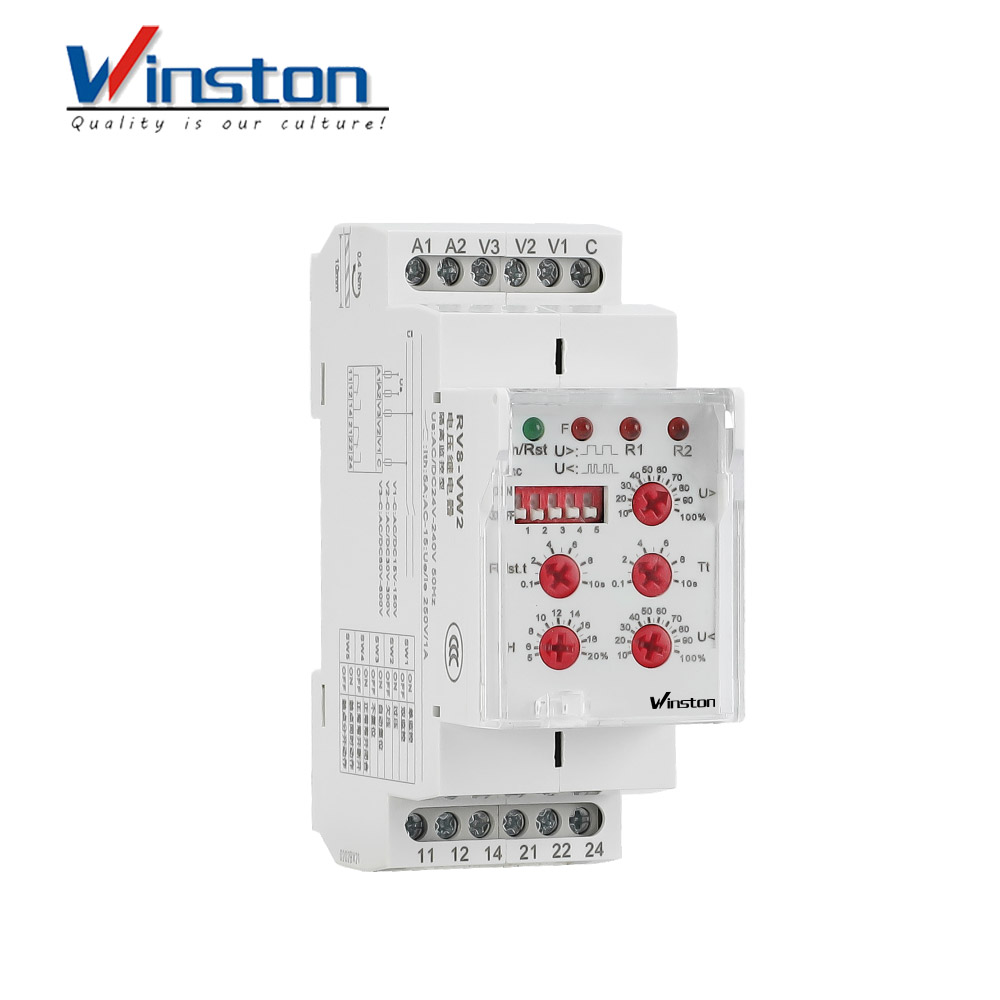

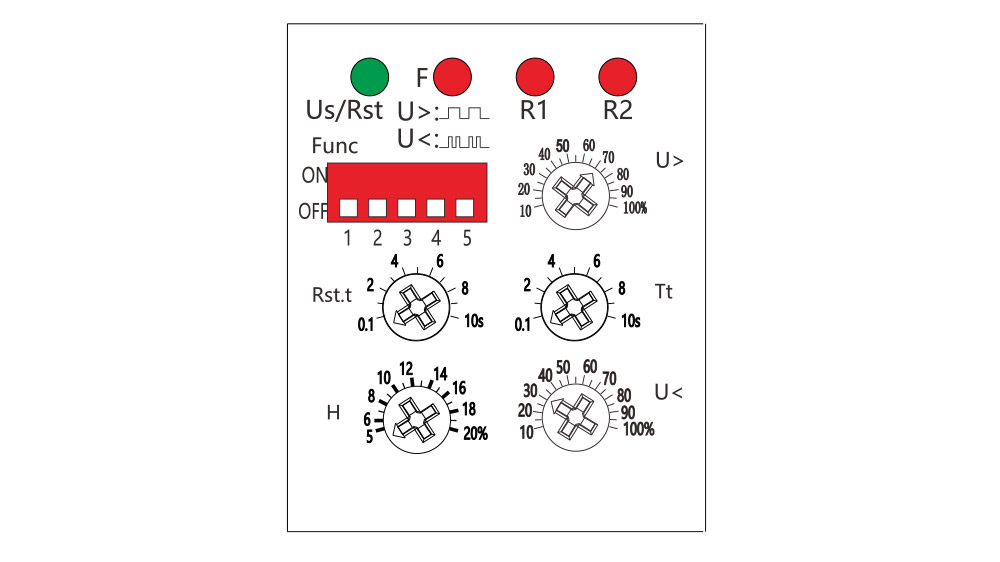

RV8-VW
Winston
- Used for overvoltage and undervoltage protection of electrical equipment.
- Monitor weak load carrying capacity or voltage signals that require isolation.
- Normal/emergency power switch.
- Prevent phase failure of dynamic loads.
- True RMS measurement with high measurement accuracy.

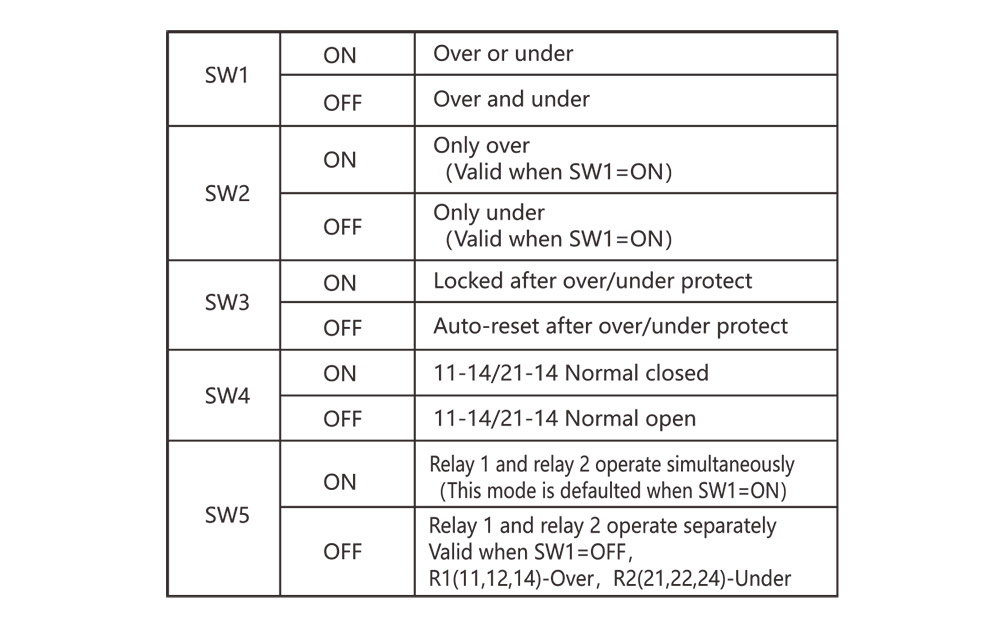

- Overvoltage and undervoltage selection monitoring or simultaneous monitoring.
- The output contact is normally open or normally closed and can be set.
- Two sets of contact outputs, which can act separately and independently.
- 36mm wide, 35mm clamp rail installation.
- Used for overvoltage and undervoltage protection of electrical equipment.
- Monitor weak load carrying capacity or voltage signals that require isolation.
- Normal/emergency power switch.
- Prevent phase failure of dynamic loads.
- True RMS measurement with high measurement accuracy.
- Overvoltage and undervoltage selection monitoring or simultaneous monitoring.
- The output contact is normally open or normally closed and can be set.
- Two sets of contact outputs, which can act separately and independently.
- 36mm wide, 35mm clamp rail installation.
| RV8-VW2 | |
| Function | Monitoring voltage |
| Supply terminals | A1,A2 |
| Rated supply voltage | AC/DC24-240V 50/60HZ |

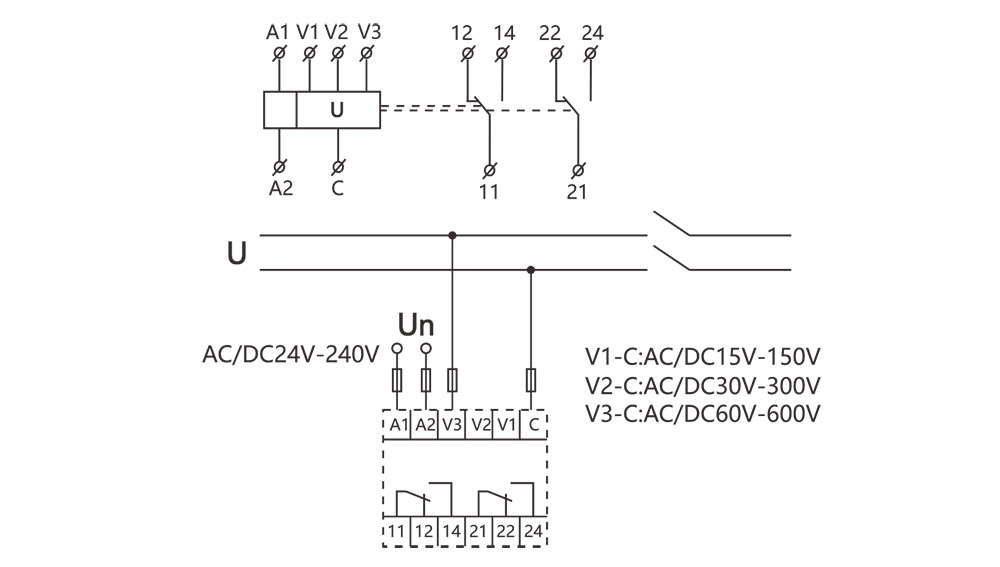

| Monitoring voltage input terminal | V1,V2,V3,C |

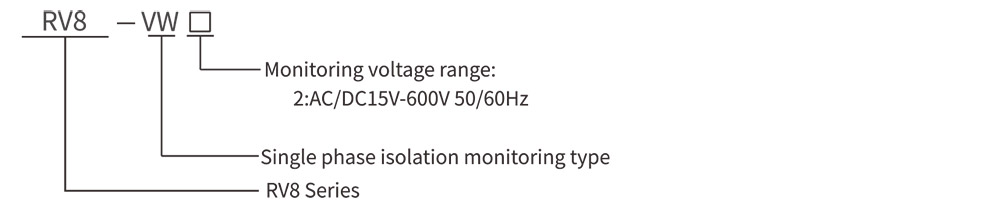

| Monitoring voltage range | AC/DC15V-600V 50/60Hz |
| Rated insulation voltage | 600V |
| Hysteresis | Only over orunder:5%-20%adjustable;Over and under:fixed 3% |
| Supply/Reset indication | Green LED |
| Measurement error | <2% |
| Time delay | 0.1s-10s |
| Power up delay/Reset time | 0.1s-10s |
| Konb setting accuracy | 10% |
| Output | 2xSPDT |
| Current rating | 5A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mw |
| Output indication | Red LED |
| Mechanical life | 5x10^6 |
| Electrical life(AC1) | 5x10^4 |
| Operating temperature | -20°C to +55°C(-4°F to 131°F) |
| Storage temperature | -35C to +75°C(-22°F to 158°F) |
| Mounting/DlN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/lP20 terminals |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size(mm) | solid wire max.1x2.5or2x1.5/with sleeve max.1x2.5(AWG 12) |

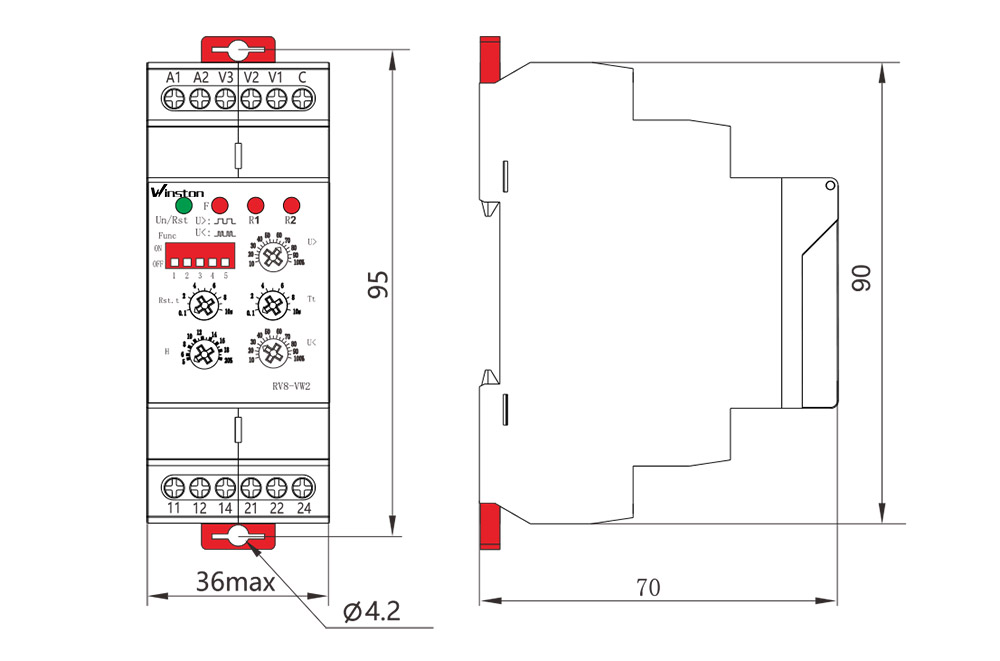

| Dimensions | 90mmx36mmx70mm |
| Weight | 100g |
| Standards | GB/T14048.5,IEC60947-5-1 |
| RV8-VW2 | |
| Function | Monitoring voltage |
| Supply terminals | A1,A2 |
| Rated supply voltage | AC/DC24-240V 50/60HZ |
| Monitoring voltage input terminal | V1,V2,V3,C |
| Monitoring voltage range | AC/DC15V-600V 50/60Hz |
| Rated insulation voltage | 600V |
| Hysteresis | Only over orunder:5%-20%adjustable;Over and under:fixed 3% |
| Supply/Reset indication | Green LED |
| Measurement error | <2% |
| Time delay | 0.1s-10s |
| Power up delay/Reset time | 0.1s-10s |
| Konb setting accuracy | 10% |
| Output | 2xSPDT |
| Current rating | 5A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mw |
| Output indication | Red LED |
| Mechanical life | 5x10^6 |
| Electrical life(AC1) | 5x10^4 |
| Operating temperature | -20°C to +55°C(-4°F to 131°F) |
| Storage temperature | -35C to +75°C(-22°F to 158°F) |
| Mounting/DlN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/lP20 terminals |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size(mm) | solid wire max.1x2.5or2x1.5/with sleeve max.1x2.5(AWG 12) |
| Dimensions | 90mmx36mmx70mm |
| Weight | 100g |
| Standards | GB/T14048.5,IEC60947-5-1 |
