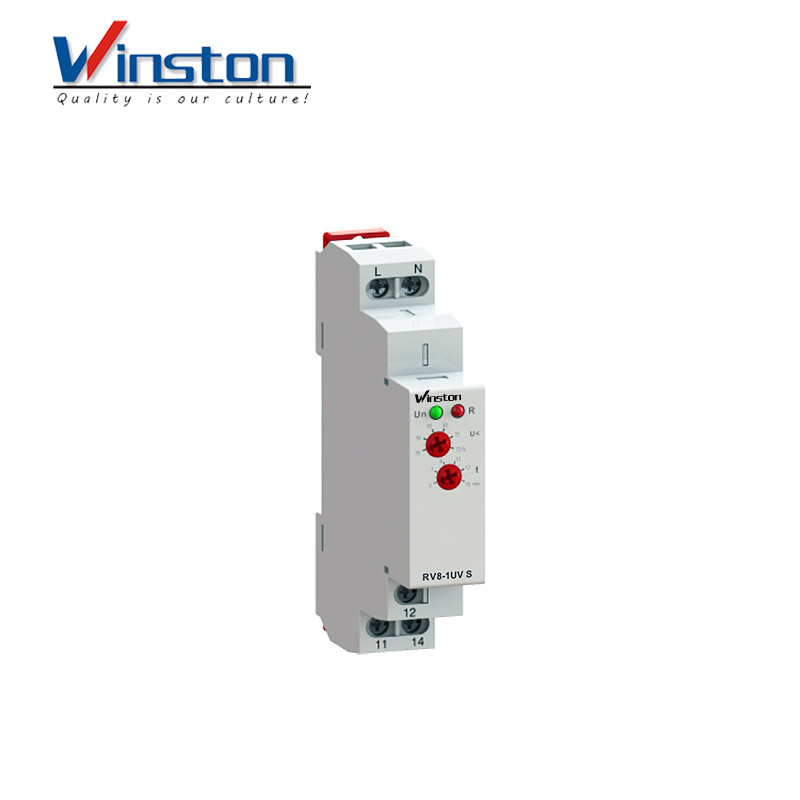

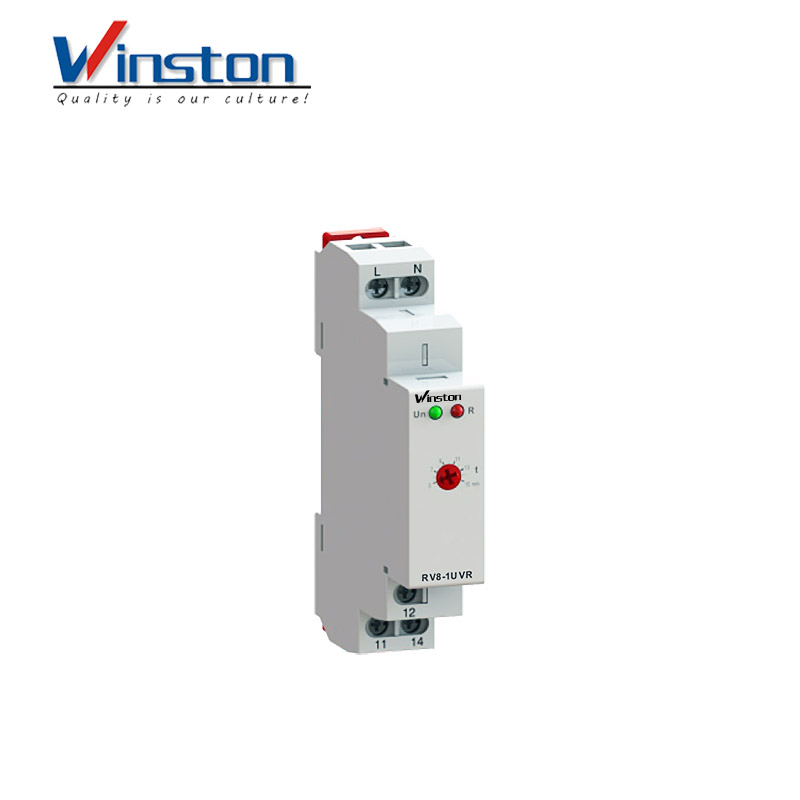

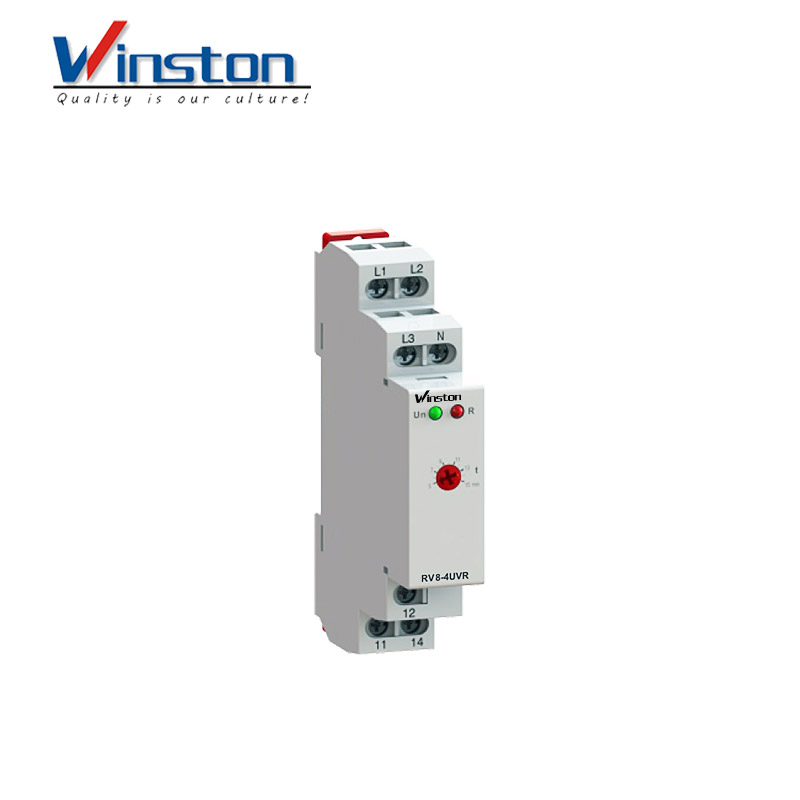

RV8-1UVR
Winston
-Product is used for highly fluctuating inductive load such as Air Conditioning system inIndustrial and commercial establishments. It protects the system equipment and load from sudden under voltage fuctuations.
Feature
- Controls its own supply voltage(True RMS measurement).
- Measuring frequency range:45Hz-65Hz
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

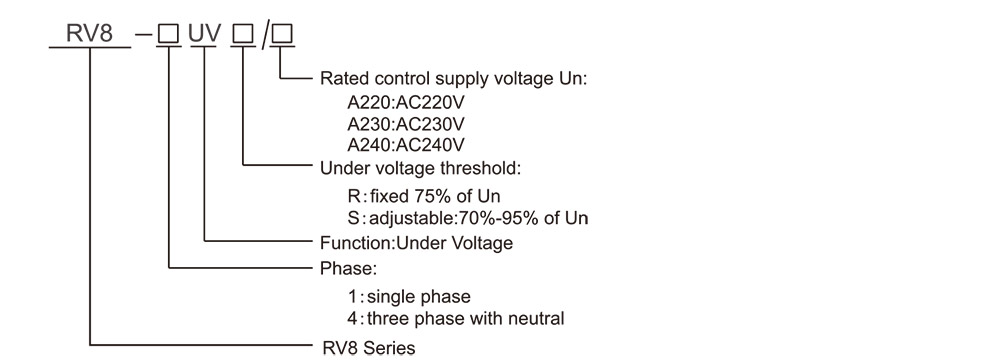

Model explanation
Technic data
| Technical parameters | 1UV | 4UV |
| Function | Under voltage | |
| Monitoring terminals | L-N | L1-L2-L3-N |
| Supply terminals | L-N | L1-N |
| Voltage range | 220V/230V/240V | |
| Ranted supply frequency | 45Hz-65Hz | |
| Under voltage threshold | R:fixed 75% of Un; S:70%-95%of Un | |
| Trip delay time | 1s | |
| Hysteresis | 5V | |
| Measurement error | ≤1% | |
| Power on delay time | Adjustable: 5min-15min | |
| Recovery delay time | Adjustable: 5min-15min | |
| Konb setting accuracy | 10% of scale value | |
| Supply indication | green LED | |
| Output indication | red LED | |
| Output | 1×SPDT | |
| Current rating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Operating temperrature | -20°C to +55°C(-4°F to 131°F) | |
| Storage temperature | -35°C to +75°C(-22°F to 158°F) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protecting degree | IP40 for front panel /IP20 terminals | |
| Operating position | any | |
| Overvoltage category | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.8Nm | |

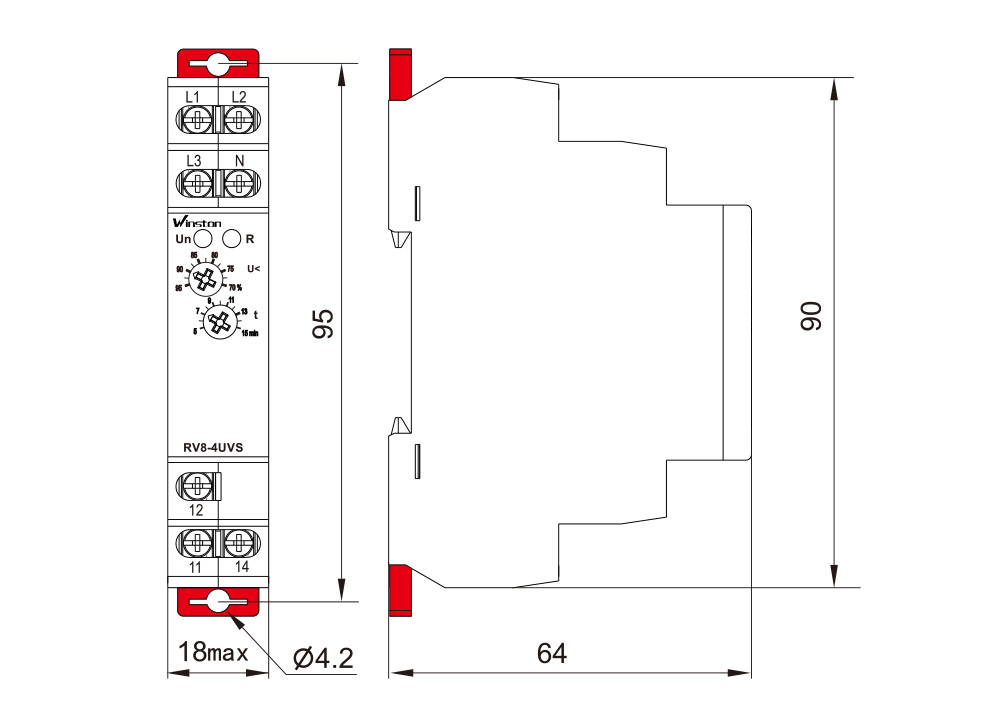

| Dimensions | 90×18×64mm | |
| Weight | 63g,65g | |
| Standards | EN 60255-1,IEC60947-5-1 | |

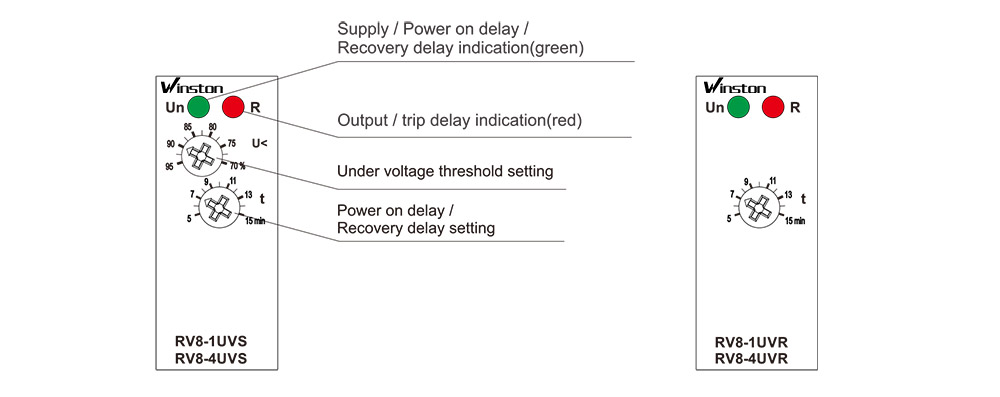

Panel Diagram
Functions Diagram

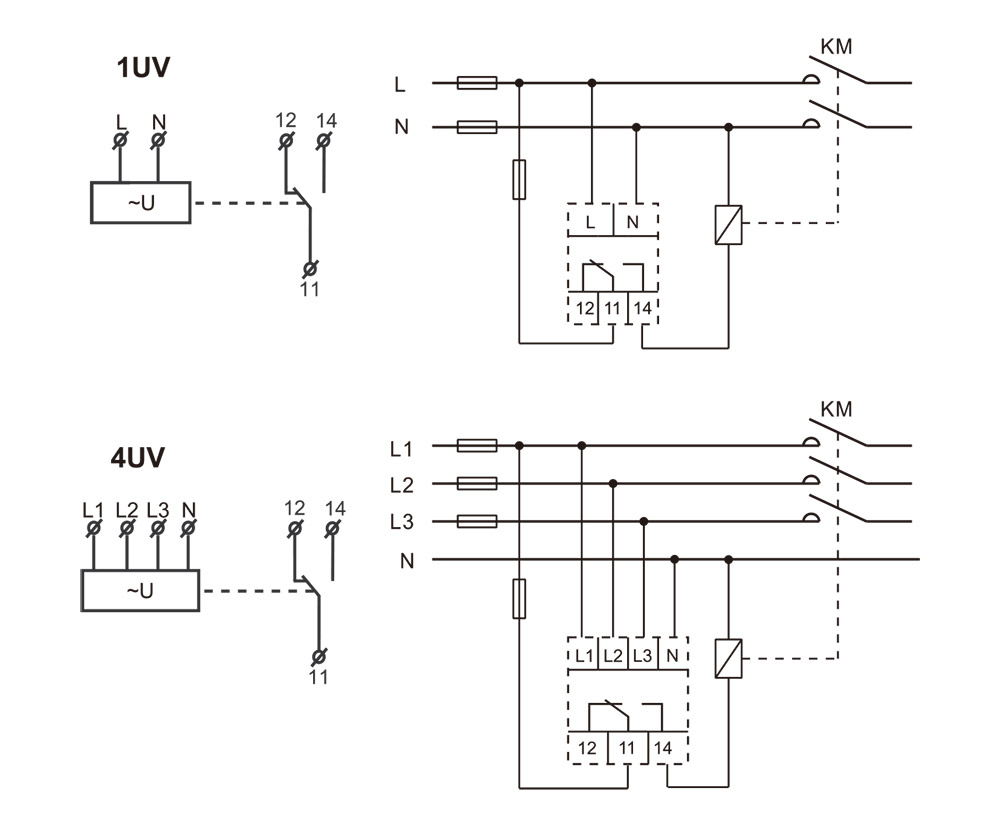

Wiring Diagram
-Product is used for highly fluctuating inductive load such as Air Conditioning system inIndustrial and commercial establishments. It protects the system equipment and load from sudden under voltage fuctuations.
Feature
- Controls its own supply voltage(True RMS measurement).
- Measuring frequency range:45Hz-65Hz
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Model explanation
Technic data
| Technical parameters | 1UV | 4UV |
| Function | Under voltage | |
| Monitoring terminals | L-N | L1-L2-L3-N |
| Supply terminals | L-N | L1-N |
| Voltage range | 220V/230V/240V | |
| Ranted supply frequency | 45Hz-65Hz | |
| Under voltage threshold | R:fixed 75% of Un; S:70%-95%of Un | |
| Trip delay time | 1s | |
| Hysteresis | 5V | |
| Measurement error | ≤1% | |
| Power on delay time | Adjustable: 5min-15min | |
| Recovery delay time | Adjustable: 5min-15min | |
| Konb setting accuracy | 10% of scale value | |
| Supply indication | green LED | |
| Output indication | red LED | |
| Output | 1×SPDT | |
| Current rating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Operating temperrature | -20°C to +55°C(-4°F to 131°F) | |
| Storage temperature | -35°C to +75°C(-22°F to 158°F) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protecting degree | IP40 for front panel /IP20 terminals | |
| Operating position | any | |
| Overvoltage category | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.8Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 63g,65g | |
| Standards | EN 60255-1,IEC60947-5-1 | |
Panel Diagram
Functions Diagram
Wiring Diagram
