RT8-ST
WINSTON
General
■ Applications
- Designated for delay ON of motors star/delta.
■Function Features
- Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
- Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

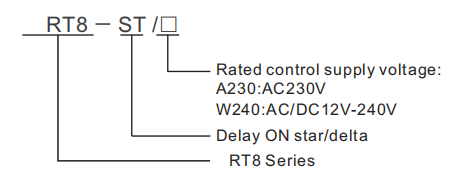

■Model and connotation
Technical parameters
Technical parameters | RT8-ST |
Function | Delay ON star/delta |
Supply terminals | A1-A2 |
Voltage range | AC/DC 12-240V(50-60HZ) |
Burden | AC 0.7-3VA/DC 0.5-1.7W |
Voltage range | AC 230V(50-60HZ) |
Power input | AC max. 12VA/1.3W |
Supply voltage tolerance | -15%;+10% |
supply indication | green LED |
Time ranges | Range of time delay t1:0.1s-10min,switch time t2:0.1s-1s |
Time setting | potentionmeter |
Time deviation | 5%-mechanical setting |
Repeat accuracy | 0.2%-set value stability |
Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) |
Output | 2×SPDT |
Current rating | 16A/AC1 |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×106 |
Reset time | max.200ms |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protecting degree | IP40 for front panel /IP20 terminals |
Operating position | any |
Overvoltage category | Ⅲ. |
Pollution degree | 2 |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
Weight | W240-82g,A230-80g |
Standards | EN 61812-1,EN61010-1 |

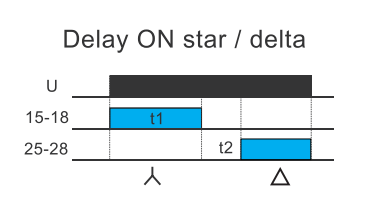

Functions Diagram
Wiring Diagram

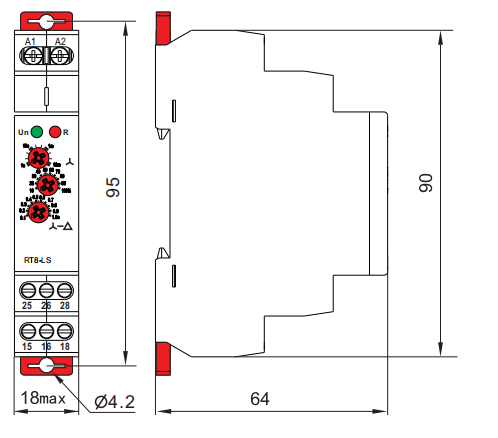

Dimensions(mm)
General
■ Applications
- Designated for delay ON of motors star/delta.
■Function Features
- Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
- Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
■Model and connotation
Technical parameters
Technical parameters | RT8-ST |
Function | Delay ON star/delta |
Supply terminals | A1-A2 |
Voltage range | AC/DC 12-240V(50-60HZ) |
Burden | AC 0.7-3VA/DC 0.5-1.7W |
Voltage range | AC 230V(50-60HZ) |
Power input | AC max. 12VA/1.3W |
Supply voltage tolerance | -15%;+10% |
supply indication | green LED |
Time ranges | Range of time delay t1:0.1s-10min,switch time t2:0.1s-1s |
Time setting | potentionmeter |
Time deviation | 5%-mechanical setting |
Repeat accuracy | 0.2%-set value stability |
Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) |
Output | 2×SPDT |
Current rating | 16A/AC1 |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×106 |
Reset time | max.200ms |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protecting degree | IP40 for front panel /IP20 terminals |
Operating position | any |
Overvoltage category | Ⅲ. |
Pollution degree | 2 |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
Weight | W240-82g,A230-80g |
Standards | EN 61812-1,EN61010-1 |
Functions Diagram
Wiring Diagram
Dimensions(mm)
