Winston RM8-01 12VA 1.3W AC 230V Latching Memory Electoric Step Relay

Share to:

Winston RM8-01 12VA 1.3W AC 230V Latching Memory Electoric Step Relay

Availability:

Quantity:



Inquire Add to Basket

Model:
RM8-01
Brand:
WINSTON

Winston RM8-01 12VA 1.3W AC 230V Latching Memory Electoric Step Relay

General

■ Applications

-latching relay, controlled by buttons from several loacations can replace three way switches or cross bar switchs thanks to control by buttons(un- limited number,connected inparallel by 2 wires),installation gets more transparent and faster for mounting.

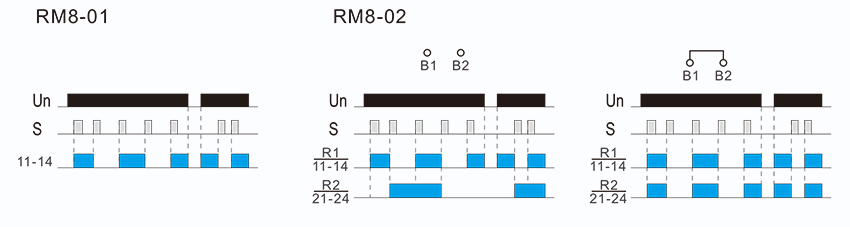

■Function Features

- Voltage range: AC 230 V,AC/DC12V-240V clamp terminals.

- Relay status is indicated by LED.

- 1-MODULE,DIN rail mounting.

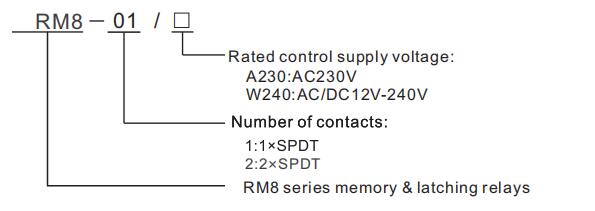

■Model and connotation

Model

Technical parameters

Technical parameters	★RM8-01	RM8-S2
Number of function	1	2
Supply terminals	A1-A2
Voltage range	AC/DC 12-240V(50-60HZ)
Burden	AC 0.7-3VA/DC 0.5-1.7W
Voltage range	AC 230V(50-60Hz)
Power input	AC max.12VA/1.3W	AC max.12VA/1.9W
Supply voltage tolerance	-15%;+10%
Supply indication	green LED
Control terminals	A1-S
Glow tubes connetions	Voltage range: AC 230VYes(A1-S)
Max.amount of glow lamps	230V,max.75 pcs (Measured with glow lamp 0.68mA/230VAC)
Impulse length	min.25ms
Temperature coecient	0.05%/℃,at=20℃(0.05%℉,at=68℉)
Output	1×SPDT	2×SPDT
Current rating	16A/AC1
Switching voltage	250VAC/24VDC
Min.breaking capacity DC	500mW
Output indication	red LED
Mechanical life	1×10⁷
Electrical life(AC1)	1×10⁶
Reset time	max.200ms
Operating temperrature	-20℃ to +55℃(-4℉ to 131℉)
Storage temperature	-35℃ to +75℃(-22℉ to 158℉)
Mounting/DIN rail	Din rail EN/IEC 60715
Protecting degree	IP40 for front panel /IP20 terminals
Operating position	any
Overvoltage category	Ⅲ.
Pollution degree	2
Max.cable size(mm²)	soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12)

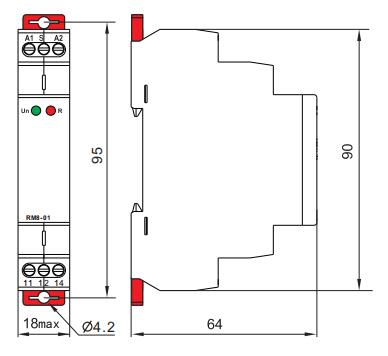

Dimensions	90×18×64mm
Weight	1XSPDT:W240-58g,A230-57g
	2xSPDT:W240-79g,A230-77g
Standards	IEC/EN 61810-1,IEC/EN61010-1
