RT8-LS
WINSTON
General
■ Applications
-It is used for delayed switching of lights in the corridors, entrances, stairways,
halls or for delayed fi nish of fans (WC, bathroom, etc.).
■Function Features
- Operating system switch:
ON - output is constantly ON .
AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF - output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

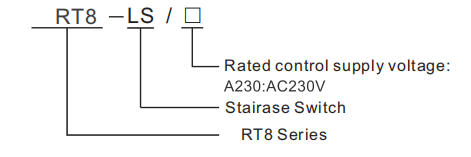

■Model and connotation
Technical parameters
| Technical parameters | RT8-LS |
| Function | delay off reacting to contact switching |
| Supply terminals | L-N |
| Voltage range | AC 230V(50-60HZ) |
| Power input | AC max. 12VA/1.9W |
| Supply voltage tolerance | -15%;+10% |
| supply indication | green LED |
| Time ranges | AUTO:0.5-20min ON OFF |
| Time setting | potentionmeter |
| Time deviation | 5%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Mininum power time | 200ms |
| Glow tubes connrtions | Yse(N-3 or L-3) |
| Max.amount of glow lams | 230V,max75pcs(Measured with glow lamp 0.68mA/230V AC). |
| Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) |
| Output | 1×SPDT |
| Current rating | 16A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1×107 |
| Electrical life(AC1) | 1×106 |
| Reset time | max.200ms |
| Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
| Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protecting degree | IP40 for front panel /IP20 terminals |
| Operating position | any |
| Overvoltage category | Ⅲ. |
| Pollution degree | 2 |
| Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
| Dimensions | 90×18×64mm |
| Weight | 61g |
| Standards | IEC/EN 606669-2-3,IEC/EN61010-1 |
Functions Diagram

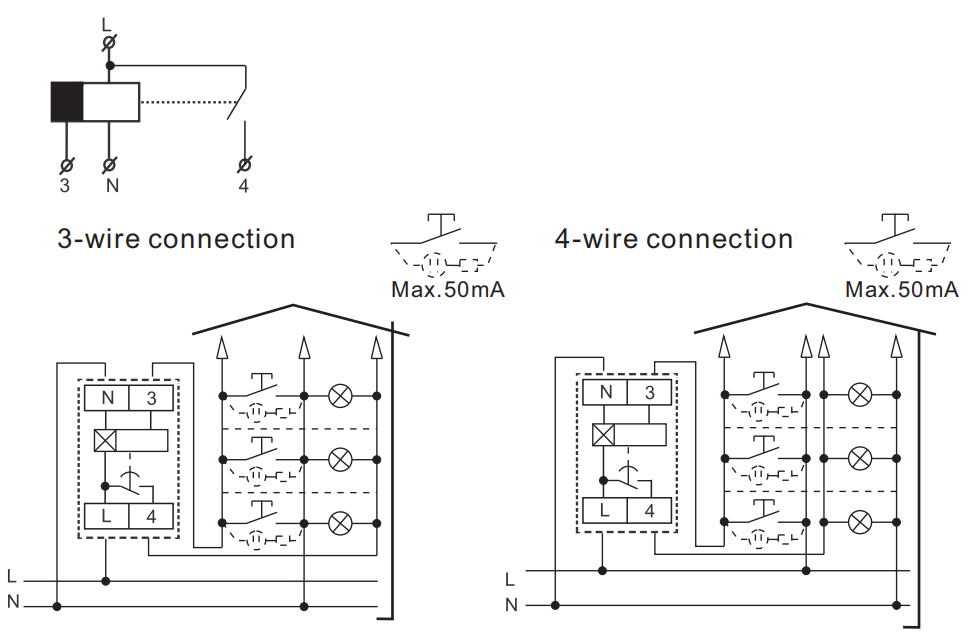

Wiring Diagram
Types of lamps

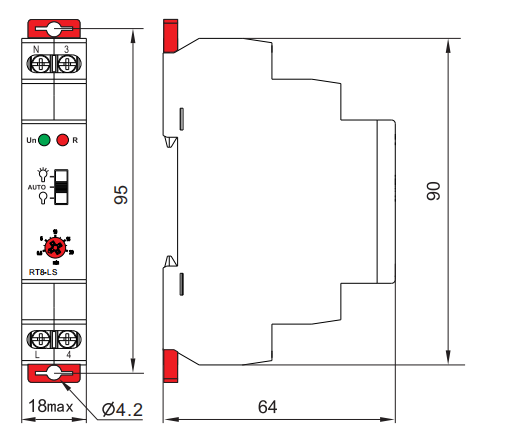

Dimensions(mm)
