RI8-01
WINSTON
General
■ Applications
- Serves for monitoring of heating in rail-switches, heating cables, consumption of one-phase motors, indicates current flow.
■Function Features
- Adjustable delay 0.5 - 10 s to eliminate short current peaks.
- Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
- Possible to use for current scanning from current transformer.
- Universal supply AC 24 - 240 V and DC 24 V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

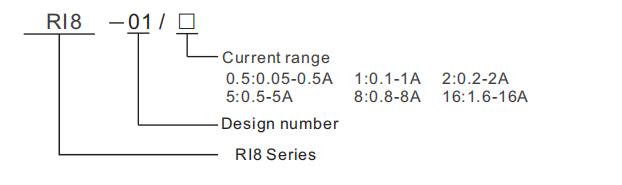

■Model and connotation
Technical parameters
Technical parameters | RI8-01 |
Function | Monitoring current |
Supply terminals | A1-A2 |
Rated supply voltage | AC 24V-240V or DC 24V |
Rated supply frequency | 50/60Hz |
Burden | max.1.5VA |
Supply voltage tolerance | -15%;+10% |
Current range | 0.5A,1A,2A,5A,8A,16A |
Time setting | potentionmeter |
Time delay | adjustable 0.5-10s |
supply indication | green LED |
Setting accuracy | 5% |
Repeat accuracy | <1% |
Temperature dependancy | <0.1 %/℃ |
Limit values tolerance | 5 %(10% for 0.05-0.5A range) |
Hysteresis | 5% |
Limit values tolerance | 0.05%/℃.at=20℃(0.05%℉, at=68℉) |
Output | 1×SPDT |
Current rating | 10A/AC1 |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×106 |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protecting degree | IP40 for front panel /IP20 terminals |
Operating position | any |
Overvoltage category | Ⅲ. |
Pollution degree | 2 |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
Weight | 62g |
Standards | IEC/EN 62055-1,IEC/EN61010-1 |

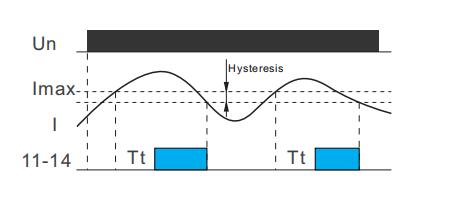

Functions Diagram
Wiring Diagram

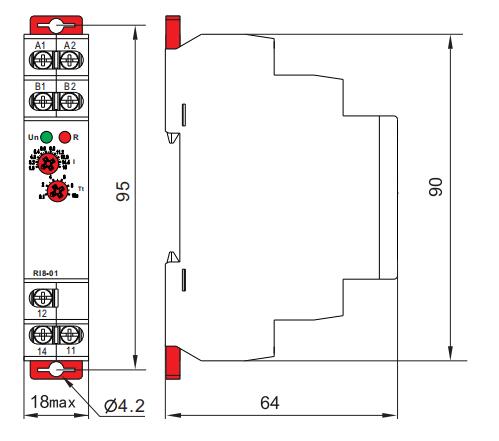

Dimensions(mm)
General
■ Applications
- Serves for monitoring of heating in rail-switches, heating cables, consumption of one-phase motors, indicates current flow.
■Function Features
- Adjustable delay 0.5 - 10 s to eliminate short current peaks.
- Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
- Possible to use for current scanning from current transformer.
- Universal supply AC 24 - 240 V and DC 24 V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
■Model and connotation
Technical parameters
Technical parameters | RI8-01 |
Function | Monitoring current |
Supply terminals | A1-A2 |
Rated supply voltage | AC 24V-240V or DC 24V |
Rated supply frequency | 50/60Hz |
Burden | max.1.5VA |
Supply voltage tolerance | -15%;+10% |
Current range | 0.5A,1A,2A,5A,8A,16A |
Time setting | potentionmeter |
Time delay | adjustable 0.5-10s |
supply indication | green LED |
Setting accuracy | 5% |
Repeat accuracy | <1% |
Temperature dependancy | <0.1 %/℃ |
Limit values tolerance | 5 %(10% for 0.05-0.5A range) |
Hysteresis | 5% |
Limit values tolerance | 0.05%/℃.at=20℃(0.05%℉, at=68℉) |
Output | 1×SPDT |
Current rating | 10A/AC1 |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×106 |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protecting degree | IP40 for front panel /IP20 terminals |
Operating position | any |
Overvoltage category | Ⅲ. |
Pollution degree | 2 |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
Weight | 62g |
Standards | IEC/EN 62055-1,IEC/EN61010-1 |
Functions Diagram
Wiring Diagram
Dimensions(mm)
