RL8-02
WINSTON
General
■ Applications
-Designed for monitoring level in wellss, basins, reservoirs, tanks.....
■Function Features
- In one device you can choose the following configurations:
- 2 level control mode
- 1 level control mode
- Choice of function PUMP UP, PUMP DOWN.
- Adjustable time delay on the output (0.1 - 10s).
- Sensitivity adjustable by a potentiometer (5-100kΩ).
- Galvanically separated supply voltage AC/DC 24-240V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

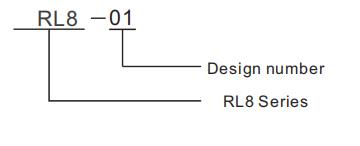

■Model and connotation
Technical parameters
Technical parameters | RL8-01 | ★RL8-02 |
Function | 2 level contorl mode | 2 or 1 level contorl mode |
Supply terminals | A1-A2 | |
Voltage range | AC/DC 12-240V(50-60HZ) | |
Input | max.2VA | |
Supply voltage tolerance | -15%;+10% | |
Sensitivity (input resistance) | adjustable in range 5 kΩ-100 kΩ | |
Voltage in electrodes | max.AC 5V | |
Current in probe | AC<0.1 mA | |
Time response | max.400ms | |
Max.capacity length | 800m (sensitivity 25kΩ), 200m(sensitivity 100 kΩ) | |
Max.capacity of probe cable | 400 nF (sensitivity 25kΩ),100 nF (sensitivity 100 kΩ) | |
Time delay (t) | adjustable, 0.5-10s | |
Time delay after power on | 1.5s | |
Accuracy in setting (mechanical) | ±5% | |
Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) | |
Output | 1×SPDT | |
Current rating | 10A/AC1 | |
Switching voltage | 250VAC/24VDC | |
Min.breaking capacity DC | 500mW | |
Output indication | red LED | |
Mechanical life | 1×107 | |
Electrical life(AC1) | 1×106 | |
Reset time | max.200ms | |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) | |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) | |
Mounting/DIN rail | Din rail EN/IEC 60715 | |
Protecting degree | IP40 for front panel /IP20 terminals | |
Operating position | any | |
Overvoltage category | Ⅲ. | |
Pollution degree | 2 | |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
Dimensions | 90×18×64mm | |
Weight | 61g | 81g |
Standards | IEC/EN 62055-1,IEC/EN61010-1 |

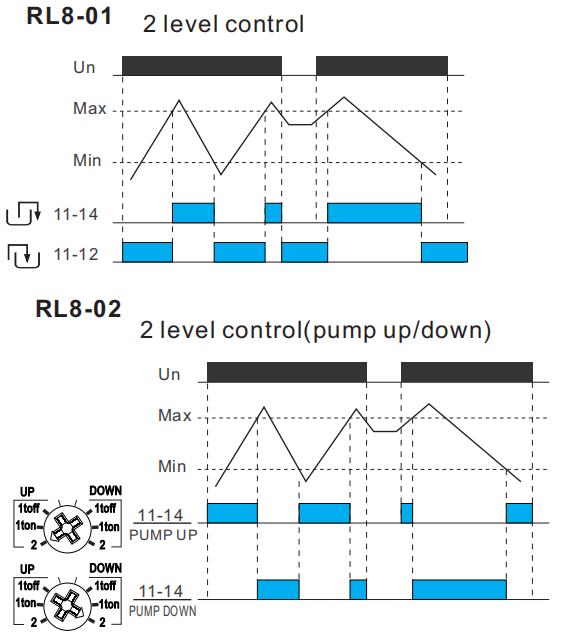

Functions Diagram
Wiring Diagram

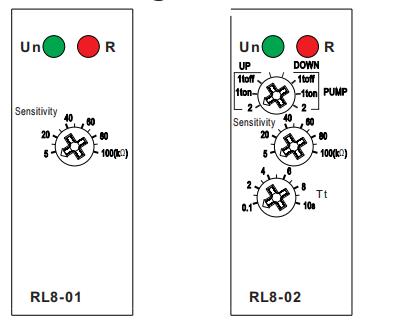

Panel Diagram

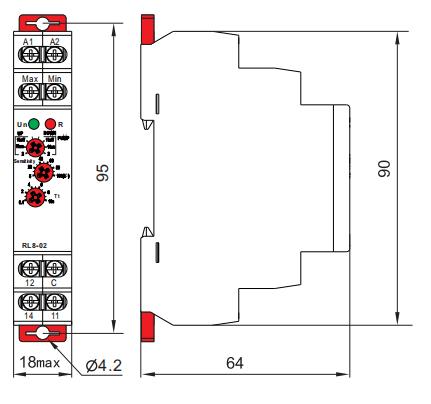

Dimensions(mm)
General
■ Applications
-Designed for monitoring level in wellss, basins, reservoirs, tanks.....
■Function Features
- In one device you can choose the following configurations:
- 2 level control mode
- 1 level control mode
- Choice of function PUMP UP, PUMP DOWN.
- Adjustable time delay on the output (0.1 - 10s).
- Sensitivity adjustable by a potentiometer (5-100kΩ).
- Galvanically separated supply voltage AC/DC 24-240V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
■Model and connotation
Technical parameters
Technical parameters | RL8-01 | ★RL8-02 |
Function | 2 level contorl mode | 2 or 1 level contorl mode |
Supply terminals | A1-A2 | |
Voltage range | AC/DC 12-240V(50-60HZ) | |
Input | max.2VA | |
Supply voltage tolerance | -15%;+10% | |
Sensitivity (input resistance) | adjustable in range 5 kΩ-100 kΩ | |
Voltage in electrodes | max.AC 5V | |
Current in probe | AC<0.1 mA | |
Time response | max.400ms | |
Max.capacity length | 800m (sensitivity 25kΩ), 200m(sensitivity 100 kΩ) | |
Max.capacity of probe cable | 400 nF (sensitivity 25kΩ),100 nF (sensitivity 100 kΩ) | |
Time delay (t) | adjustable, 0.5-10s | |
Time delay after power on | 1.5s | |
Accuracy in setting (mechanical) | ±5% | |
Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) | |
Output | 1×SPDT | |
Current rating | 10A/AC1 | |
Switching voltage | 250VAC/24VDC | |
Min.breaking capacity DC | 500mW | |
Output indication | red LED | |
Mechanical life | 1×107 | |
Electrical life(AC1) | 1×106 | |
Reset time | max.200ms | |
Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) | |
Storage temperature | -35℃ to +75℃(-22℉ to 158℉) | |
Mounting/DIN rail | Din rail EN/IEC 60715 | |
Protecting degree | IP40 for front panel /IP20 terminals | |
Operating position | any | |
Overvoltage category | Ⅲ. | |
Pollution degree | 2 | |
Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
Dimensions | 90×18×64mm | |
Weight | 61g | 81g |
Standards | IEC/EN 62055-1,IEC/EN61010-1 |
Functions Diagram
Wiring Diagram
Panel Diagram
Dimensions(mm)
