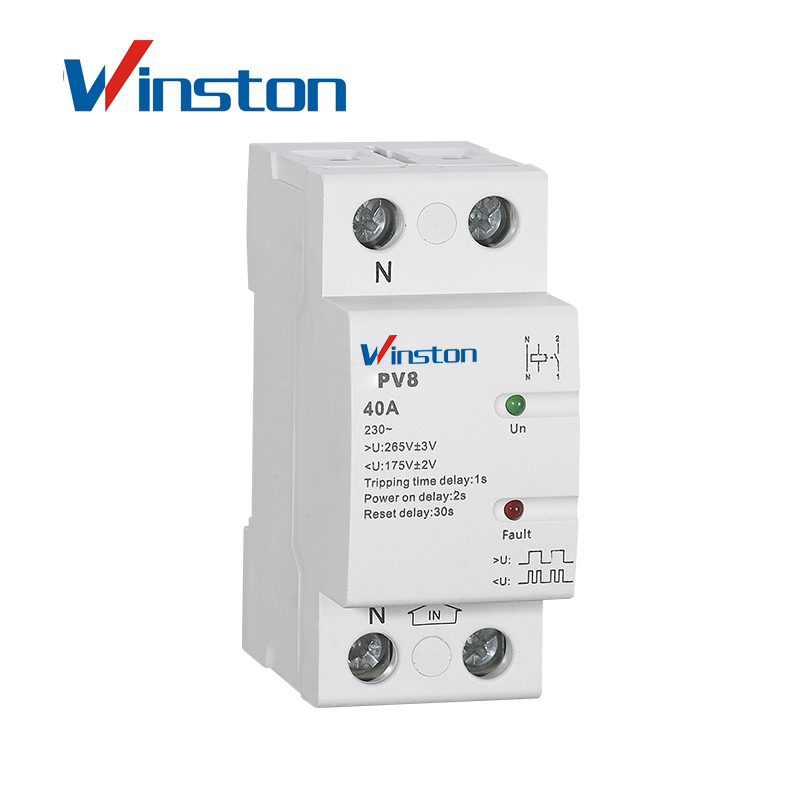

PV8-63 2P
WINSTON
General
■ Applications
- Overvoltage and undervoltage protection for household equipment.
■Function Features
- Supply voltage measurement and protection.
- Double bus wiring design stronger ability.
- Self reset after fault. - Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
■Model and connotation
Technical parameters
| Technical parameters | ★2P | 4P |
| Rated supply voltage | AC220V | AC220V(L-N) |
| Rated supply frequency | 50/60Hz | |
| Rated operational current | 32A,40A,50A,63A(AC1) | |
| Burden | AC max.3VA | |
| Over voltage operation value | 265V | 265V(L-N) |
| Over voltage reset value | 257V | 257V(L-N) |
| Under voltage operation value | 175V | 175V(L-N) |
| Under voltage reset value | 180V | 180V(L-N) |
| Action delay time | 1s | |
| Power-up delay | 2s | |
| Reset time | 30s | |
| Measurement error | ≤1% | |
| Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) | |
| Storage temperature | -35℃ to +75℃(-22℉ to 158℉) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protecting degree | IP40 for front panel /IP20 terminals | |
| Operating position | any | |
| Overvoltage category | Ⅲ. | |
| Pollution degree | 2 | |
| Dimensions | 82×36×68mm | 82×72×68mm |
| Weight | 120g | 250g |
| Standards | IEC/EN 60255-1,IEC/EN61010-1 | |
Wiring Diagram
Functions Diagram
Dimensions(mm)
Example
