DJR-300
Winston
Widely Use 50-300WDJR Series Ohmic Heater Aluminum Heater DJR-300
DJR Heater is the developement and production of the heater dissipation electrical heater based on national standard GB/T-15470-1995. The product adopts a special aluminum extrusions of 6063-T5 for conducting the radiator.In order to increase the cooling area, and designs small ripples on each heater skin,it is use the quality Ni80Cr20 Nickel Chromium alloy resistence wire for heater,seiko produced. The product has small size, light weight,big heater dissipation area and long service life and the erminal device is safe and reliable, not easy to damage. As for the overall design, it has reasonable structure and beautiful appearence,Widely used in high and low voltage switch cabinet,centrally installed cabinet, ring counter,terminal box,box-type substation and other power equipment for moisture-proof,Anticondensation, dehumidifition to improve the working environment temperature and all the spaces need dehumidifition and heating.
Technical Parameter
Model | DJR-300 |
Working Voltage | 110VAC/220VAC/380VAC/220VDC/380VDC |
Operating Frequency | 50Hz |
Insulation resistance | 50Ω |
Dielectric strength: | >2000V |
Continous working time | >5000 hours |
Rated power : | 50-300W |
Art.NO. | Operating Voltage | Heating Capacity ( 50Hz) | Dimension (mm) | Mounting Holes (mm) |
DJR-50 | 220V | 50W | 160*100*22 | 55 |
DJR-75 | 75W | |||
DJR-100 | 100W | |||
DJR-150 | 150W | |||
DJR-200 | 200W | |||
DJR-300 | 300W |

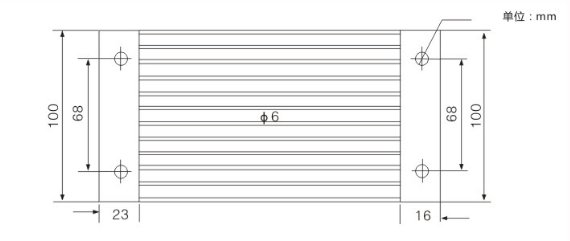

Dimension

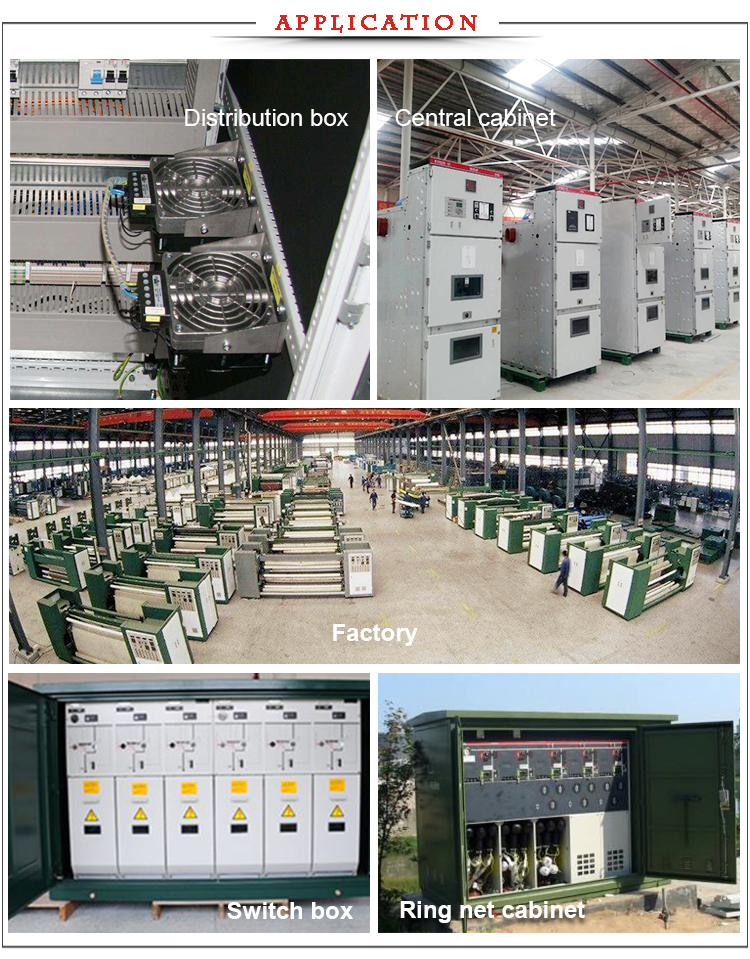

Application
Package and shipping
