CS 028
Winston
Features
Compact size
Quiet operation

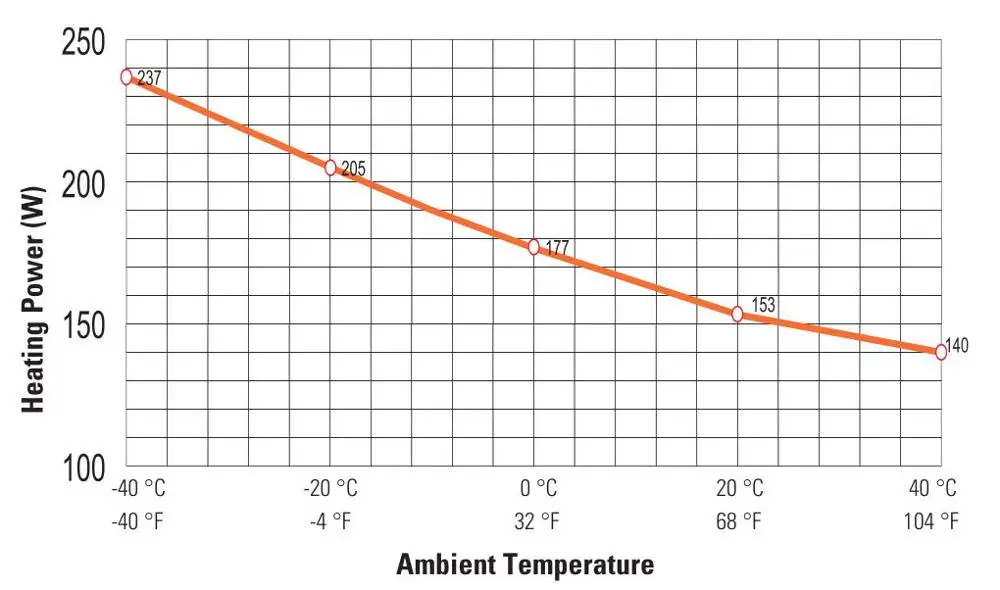

Heating power adjusts to ambient temperature
DIN rail or screw mount available
The CS 028 fan heater prevents formation of condensation and provides an evenly distributed

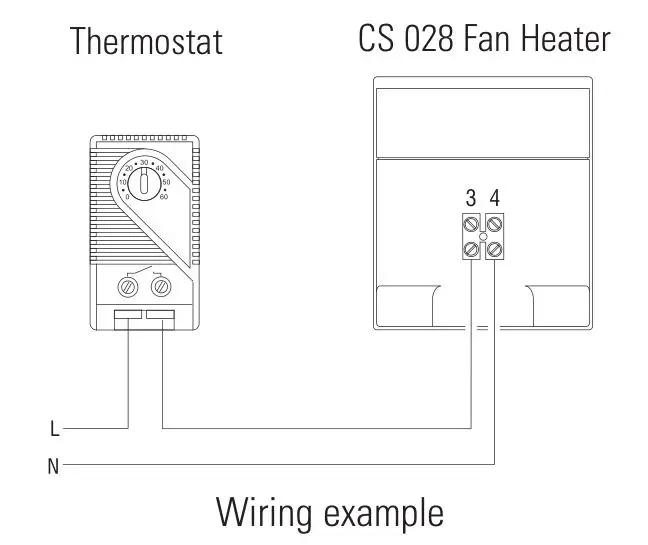

interior air temperature in enclosures. The heater is connected using the internal terminal con-
nectors. The surface temperatures on the accessible side surfaces of the housing are minimized
as a result of the heater design. The CS 028’s small size make it ideal for use in enclosures
where space is at a premium.
Technical data
| Model | CS 028 Fan Heater |
| Heating element | PTC resistor - temperature limiting |
| Max. current (inrush) | 6 A @ AC 120 V, 12 A @ AC 230 V |
| Surface temperature max. | 122 °F (50 °C) at housing, 212 °F (100 °C) at top grill; |
| measured at 68 °F (20 °C) ambient temperature | |
| Axial fan, ball bearing | service life 40,000 h at 104 °F (40 °C) |
| Air flow, free blowing | approx. 8 cfm (13.8 m³/h) |
| Connection | 2-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max. |

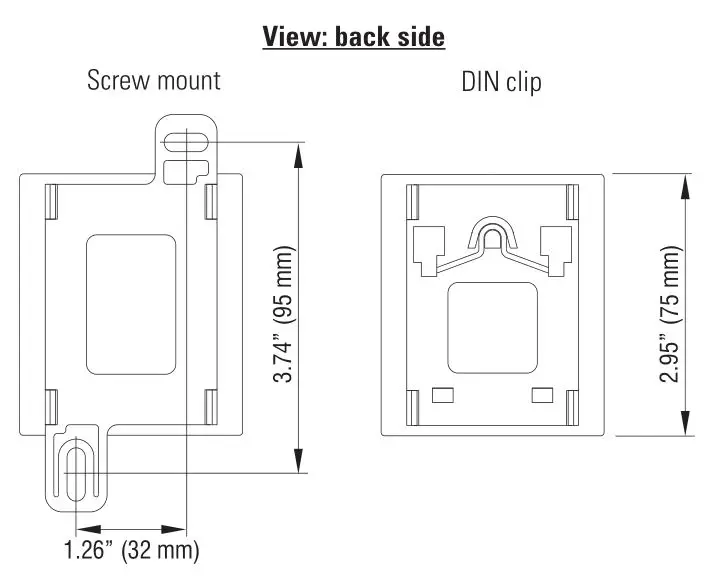

| Mounting | screw mount or clip for 35 mm DIN rail, EN 60715 |
| Housing | plastic, UL 94V-0, black |
| Weight | approx. 10.6 oz. (300 g) |
| Mounting position | vertical |
| Operating / Storage temperature | -49 to +158 °F (-45 to +70 °C) |
| Protection class | II (double insulated) |
| Protection type | IP20 |
| Note | other voltages available upon request |

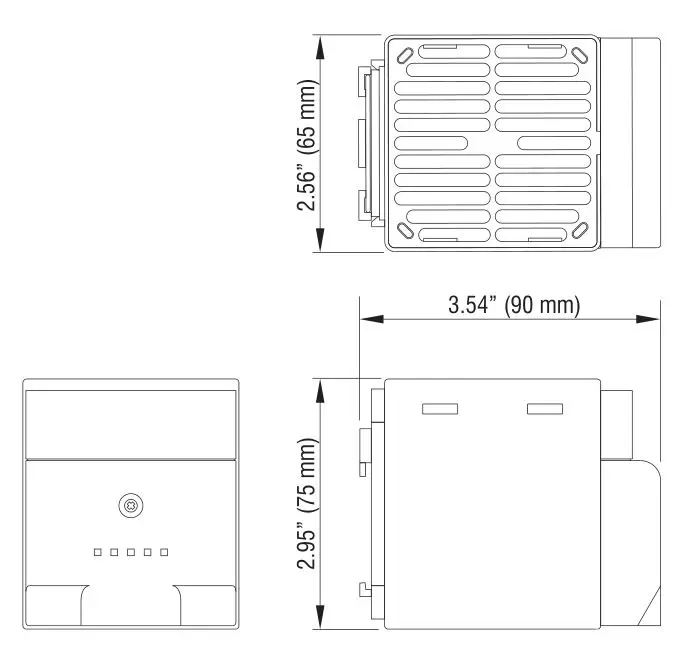

| Part No. | Heating capacity 1) | Operating voltage | Dimensions | Mounting |
| 02800.0-00 | 150 W | AC 230 V, 50/60 Hz | 2.95 x 2.56 x 3.54” (75 x 65 x 90 mm) | DIN clip |
| 02800.0-01 | 150 W | AC 230 V, 50/60 Hz | 4.49 x 2.56 x 3.54” (114 x 65 x 90 mm) | Screw mount |
| 02800.9-00 | 150 W | AC 120 V, 50/60 Hz | 2.95 x 2.56 x 3.54” (75 x 65 x 90 mm) | DIN clip |
| 02800.9-01 | 150 W | AC 120 V, 50/60 Hz | 4.49 x 2.56 x 3.54” (114 x 65 x 90 mm) | Screw mount |
1) at 68 °F (20 °C) ambient temperature
