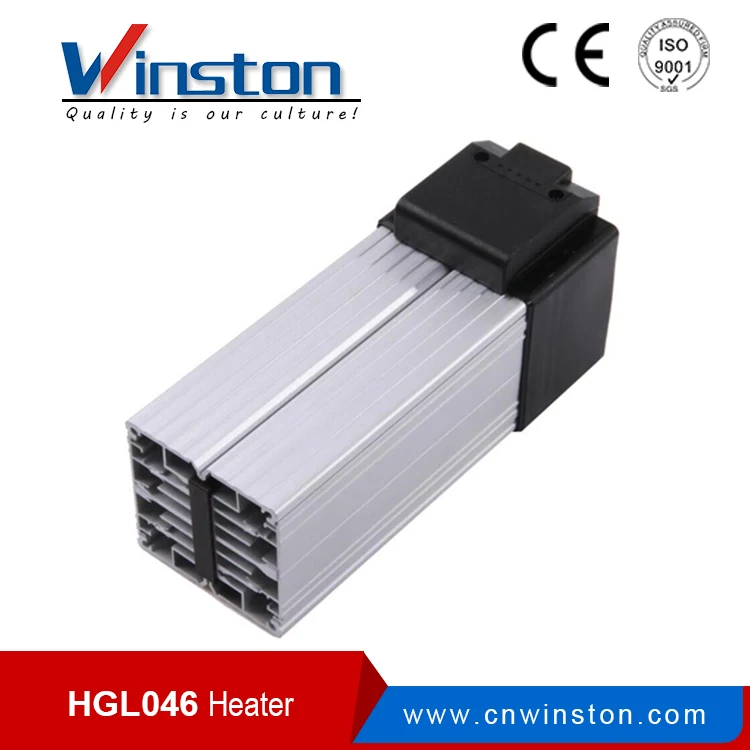

HGL 046 230VAC 24V/48VDC Compact Body Overheat Protection Fan Heater

Availability:
Quantity:
  • HGL 046 HGL046

  • Winston

Compact Body Overheat Protection Fan Heater  (HGL 046 250W 400W)

Product Description


Compact Design

Clip fixing
Long service life
Maintenance free
Temperature safety cut-out
Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector.

HGL 046 250W 230VAC 24V/48VDC Compact Body Overheat Protection Fan Heater

Technical Data


Heating element resistance heater
Temperature safety cut-out to protect against overheating in case of fanfailure
Heater body anodised extruded aluminium profile
Surface temperature max. 75° C (400W)
Axial fan, ball bearing service life 50,000 h at 77 °F (25 °C)
Air flow, free blowing  AC: 45m³ /h (50HZ) or 54m³ /h (60Hz)
DC: 54m³ /h
Connection internal connection terminal 1.5mm² with clampingtorque 0.8Nm max.
Connection casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical
Operating/Storage temperature -45 to +70 ° C (-49 to +158 ° F)
Protection type/Protection class IP20 / I (earthed)


Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).



Art. No. Operating voltage Heating capacity Length (L) Weight (approx. ) Approvals
04640.0-00 230VAC, 50/60Hz 250W 182mm 1.10kg CE
04641.0-00 230VAC, 50/60Hz 400W 222mm 1.40kg
04640.9-00 120VAC, 50/60Hz 250W 182mm 1.10kg
04641.9-00 120VAC, 50/60Hz 400W 222mm 1.40kg
04640.1-00 24VDC 250W 182mm 1.10kg
04640.2-00 48VDC 250W 182mm 1.10kg
04641.2-00 48VDC 400W 222mm 1.40kg


PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Dimension

 HGL 046 250W 230VAC 24V/48VDC Compact Body Overheat Protection Fan Heater



Packaging & Shipping

HGL 046 250W 230VAC 24V/48VDC Compact Body Overheat Protection Fan Heater

Application

 HGL 046 250W 230VAC 24V/48VDC Compact Body Overheat Protection Fan Heater
