CS 060 fan Touch-safe electric industrial Heater

Quantity:
  • CS 060
  • Winston


Low surface temperature

Compact size

Wide voltage range

Double insulated protection

Din rail mountable



The CS 060 is a touch-safe PTC Heater for use in enclosures.

The design of the heater utilizes natural convection which results in a circulating current of warm air.

The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design.

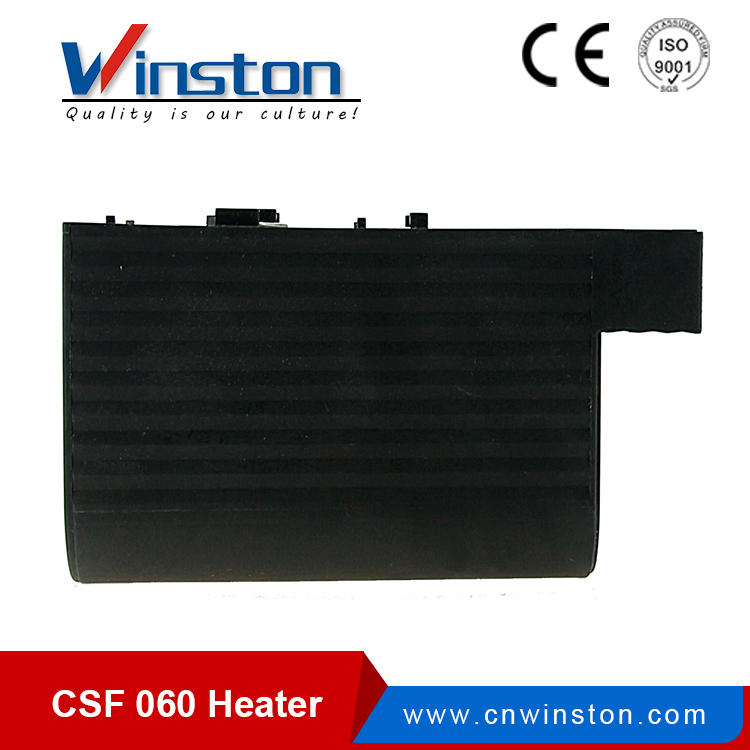

The CS 060 is also available in a version with a plug in thermostat requiring no additional wiring(CSF 060).

Operating voltage

120-240V AC/DC* (min. 110V, max. 265V)

Heating capacity

See table

Heater element

PTC resistor-temperature limiting

Surface temperature

<80 °C(176 °F),except upper protective grille

Connection

4-pole terminal 2.5mm2, torpue 0.8Nm max.

Casing

Plastic according to UL94-V-0, black

Mounting

Clip for 35mm DIN rail, EN 50022

Fitting position

Vertical

Operating/Storage temperature

-45 to +70 °C (-49 to +158 °F)

Protection type/Protection class

IP20 / II (double insulated)

Accessoires

Mounting clips (see illustration), Art. No. 09008.0-01

Note

Other voltages on request

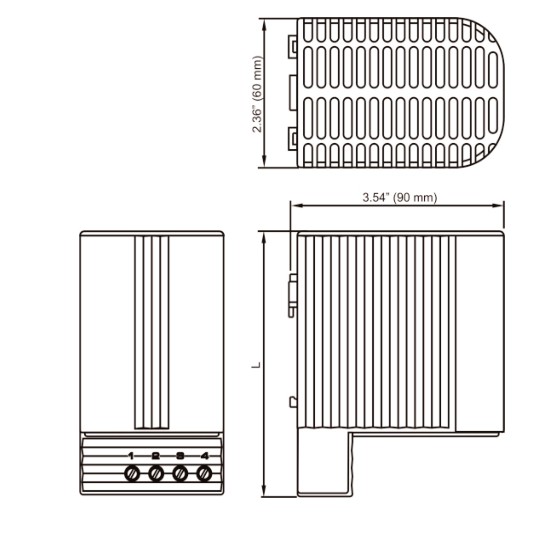

Touch-safe PTC Heater CS 060 SIZE.jpg

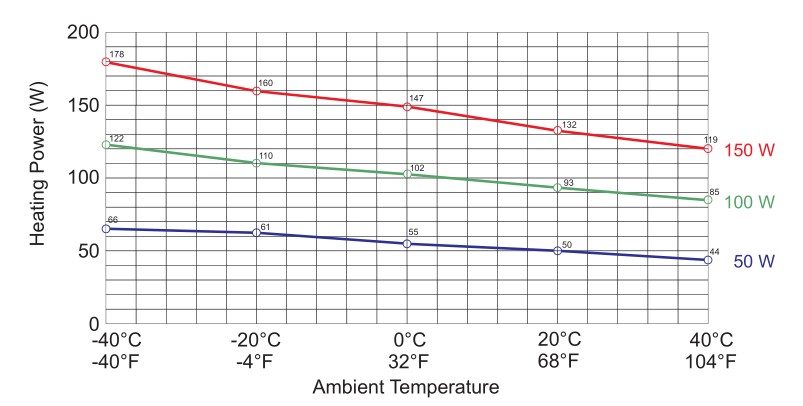

Touch-safe PTC Heater CS 060.jpg

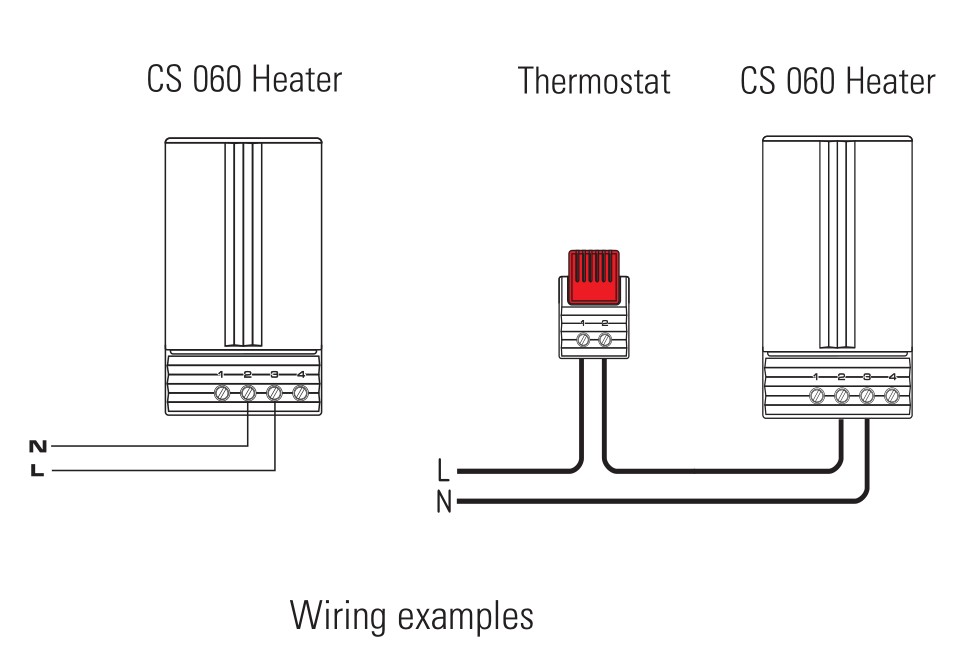

Touch-safe PTC Heater CS 060 DRAWING.jpg
