CS 030 Foot-mount PTC Fan Heater 1200W 03060.0-01
Features
Compact design
Built-in overheat protection
Integrated adjustable thermostat (optional)
Double insulated plastic housing
The compact CS 030 high performance fan heater prevents formation of condensation and pro-
vides an evenly distributed interior air temperature in enclosures. This fan heater is available
with an optional integrated thermostat for temperature control. The CS 030 was designed as a
stationary unit for the bottom of the enclosure.
Technical Parameter
Model | CS030 Series | |
Heating Element | PTC Resistor- Temperature limiting | |
Overheat protection | Built-in temperature limiter | |
Axial fan ball bearing | Service Life 50.000 h at 77°F (25℃) | |
Air flow, free blowing | 94cfm (160m³/h) | |
Connection | 2-pole terminal AWG 14max. (2.5mm² )with strain relief, clamping torque 0.8Nm max. | |
Housing | Plastic, UL94V-0,black | |
Mounting | M5 screws (not included) | |
Mounting Position | Horizontal | |
Operating Temperature | —49 to 158°F (—45 to + 70℃) | |
Dimension | 4.7*5.7*6.6" (120*145*168mm) | |
Weight | Approx 1.2KG | |
Protection Class | II (Double insulated) | |
Protection Type | IP20 |
Part No. | Heating capacity | Operating Voltage | Max.Current (inrush) | Setting Range |
03060.0-00 | 1200W | AC230V,50/60Hz with thermostat | 13A | 0 to 60℃ |
03060.0-01 | AC230V,50/61Hz without thermostat | 13A | None (no integrated controls) | |
03060.9-00 | AC120V,50/60Hz with thermostat | 16A | 32 to 140°F | |
03060.9-01 | AC120V,50/61Hz without thermostat | 16A | None (no integrated controls) |

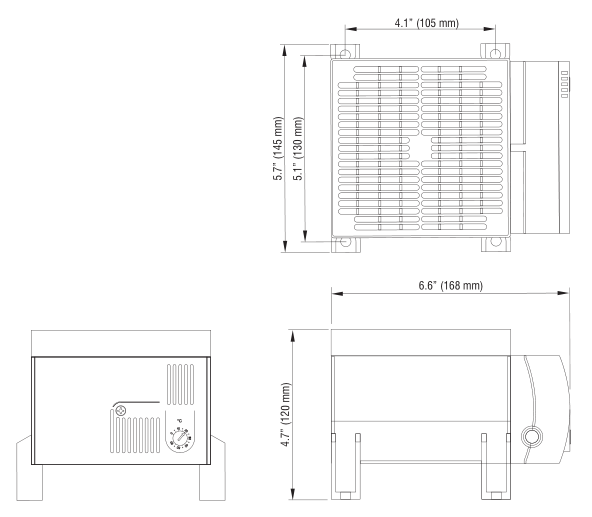

Dimension
Application
Package and shipping
