WST-M15-8
TECHNICAL DATA
Rated votage | AC 110/220V |
Max Current | AC 16(4)A |
Frequency | 50/60Hz |
Max Using Temperature | 60℃ |
Protection Degree | IP68 |

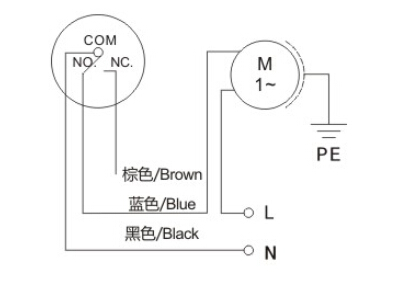

Auto-fill-water modes
Connect the control's blue line to electrie pump, black line is connected to zero-line. brown line can not be connected and should be insulated.

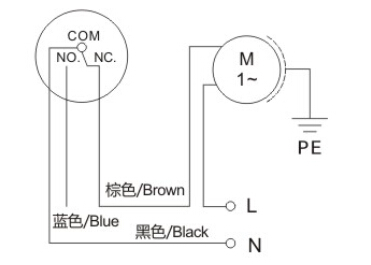

Auto-drainage and lack-water protection modes
Connect the control's brown line to electric pump,black line is connected to zero-line,blue line can not be connected and should be insulated.

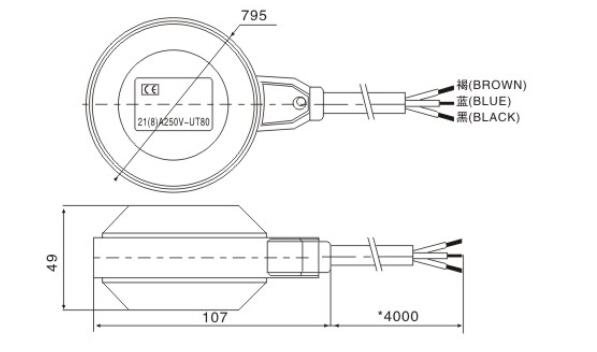

Outline dimension
