WST-M15-13 AC 110V 220V 21A Float level switch

Availability:
Quantity:
  • WST-M15-13

TECHNLCAL DATA

Rated voltage  AC 110/220V
Max. Current AC21(8)A
Frequency 50/60Hz
Max. Using Temperature 60℃
Protection Degree IP68

DESCRIPTIONS

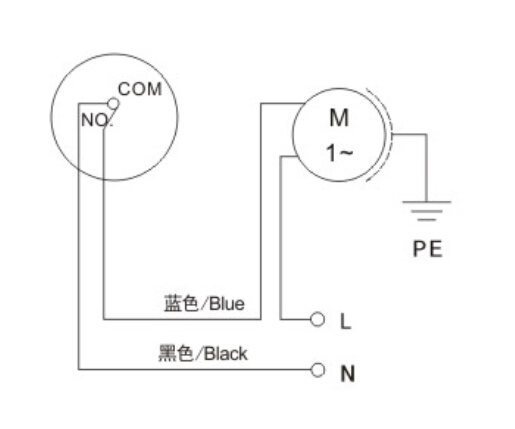

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.

13

Auto-drainage and lack-water protection modes

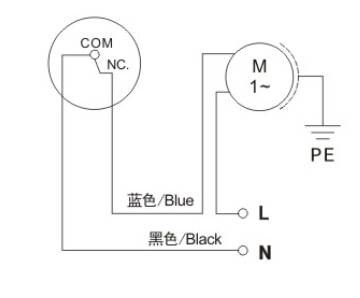

13..

The pulg of control directly put into the power supply, the pulg of pump directlyput into the socket of control.
