WST-M15-6 110V AC 16A Float Switch

Quantity:
  • WST-M15-6

TECHNLCAL DATA

Rated voltage  AC 110/220V
Max. Current AC16(4)A
Frequency 50/60Hz
Max. Using Temperature 60℃
Protection Degree IP68


DESCRIPTIONS

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.


6

Auto-drainage and lack-water protection modes

Connect the control's brown line to electric pump,black line is connected to zero-line,blue line can not be connected and should be insulated.

6.

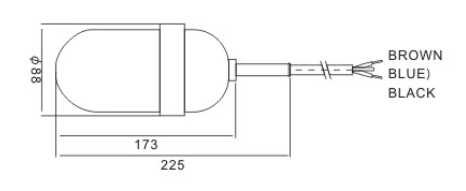

Outline dimension

6..
