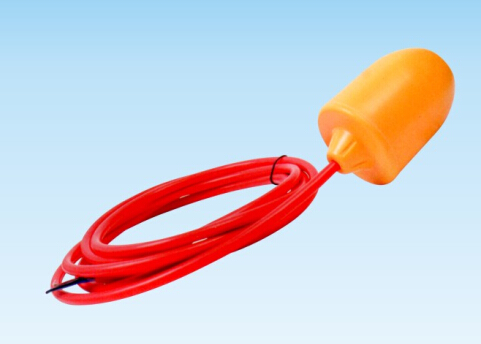

WST-M15-17
TECHNLCAL DATA
Rated voltage | AC 110/220V |
Max. Current | AC16(4)A |
Frequency | 50/60Hz |
Max. Using Temperature | 60℃ |
Protection Degree | IP68 |
DESCRIPTIONS

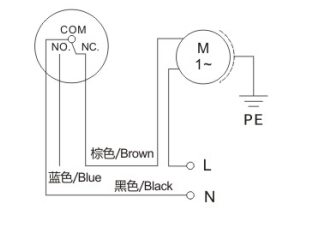

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.
Auto-drainage and lack-water protection modes
Connect the control's brown line to electric pump,black line is connected to zero -line,blue line can not be connected and should be insulated.
TECHNLCAL DATA
Rated voltage | AC 110/220V |
Max. Current | AC16(4)A |
Frequency | 50/60Hz |
Max. Using Temperature | 60℃ |
Protection Degree | IP68 |
DESCRIPTIONS
Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.
Auto-drainage and lack-water protection modes
Connect the control's brown line to electric pump,black line is connected to zero -line,blue line can not be connected and should be insulated.
