| Quantity: | |
|---|---|
WST-M15-12
TECHNLCAL DATA
| Rated voltage | AC 110/220V |
| Max. Current | AC16(4)A |
| Frequency | 50/60Hz |
| Max. Using Temperature | 60℃ |
| Protection Degree | IP68 |
DESCRIPTIONS

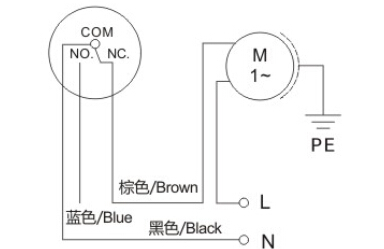

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.
Auto-drainage and lack-water protection modes

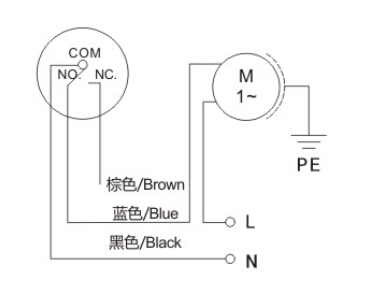

Connect the control's brown line to electric pump,black line is connected and should be insulated.

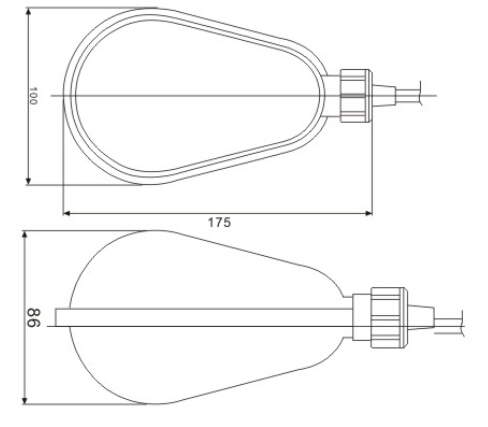

Outline dimension
TECHNLCAL DATA
| Rated voltage | AC 110/220V |
| Max. Current | AC16(4)A |
| Frequency | 50/60Hz |
| Max. Using Temperature | 60℃ |
| Protection Degree | IP68 |
DESCRIPTIONS
Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.
Auto-drainage and lack-water protection modes
Connect the control's brown line to electric pump,black line is connected and should be insulated.
Outline dimension
