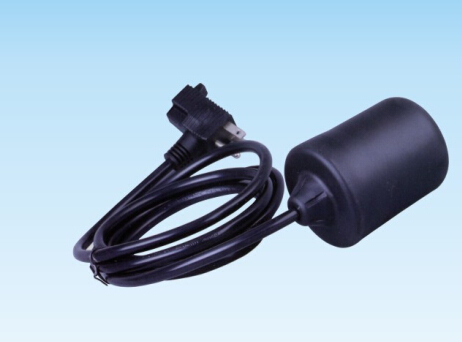

WST-M15-14 AC 220V 21A Float level switch

Quantity:
  • WST-M15-14

TECHNLCAL DATA

Rated voltage  AC 110/220V
Max. Current AC21(8)A
Frequency 50/60Hz
Max. Using Temperature 60℃
Protection Degree IP68


DESCRIPTIONS

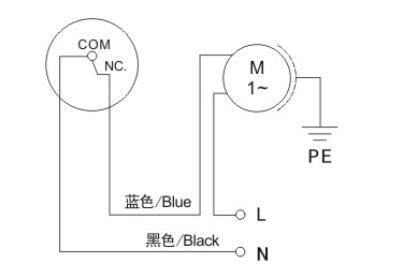

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.


14

Auto-drainage and lack-water protection modes

The pulg of control direcely put into the power supply, the pulg of pump directlyput into the socket of control.

14..
