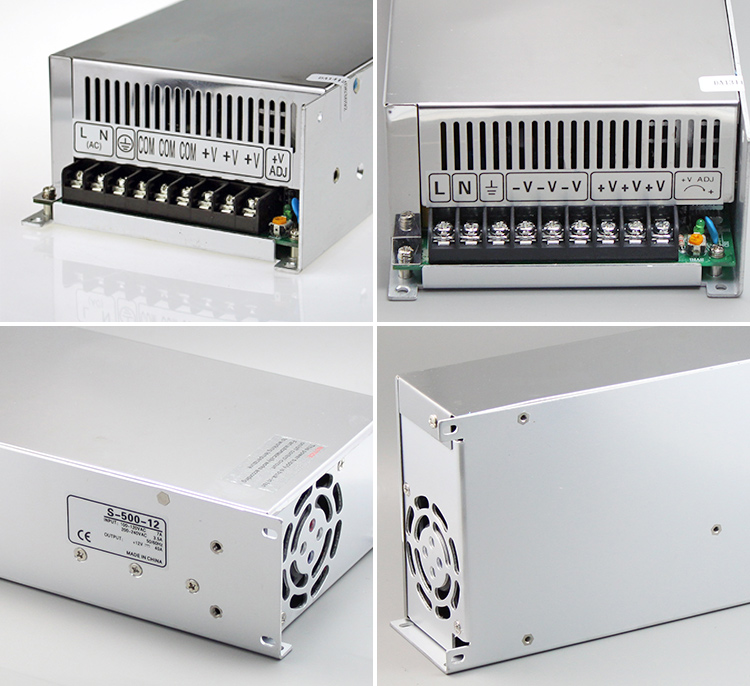

S-500
Winston
Model
| S-500-12 | S-500-24 | S-500-36 | S-500-48 |
DC output voltage
| 12V | 24V | 36V | 48V |
Output voltage range(Note:2) | ±1% | ±1% | ±1% | ±1% |
Output current range
| 0-40A | 0-20A | 0-18A | 0-10A |
Wave and noise(Note:3) | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
Inlet stability(Note:4)
| ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note:5)
| ±1% | ±0.5% | ±0.5% | ±0.5% |
Efficiency
| 84% | 86% | 87% | 87% |
Adjustable range for DC voltage | 10~13.2V | 20~26.4V | 24~30V | 41~56V |
Input current
| 7A/115V 3.5A/230V | |||
AC inrush current
| 18A/115V 36A/230V | |||
Leakage current
| <0.35mA/240VAC | |||
Overload protection
| 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
Temperature coefficient | ±0.03%/°c(0~50°c)
| |||
Setup, rise , hold up time | 1.5s,50ms, 20ms
| |||
Vibration
| 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
Withstand voltage | Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC | |||
Working temperature and humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH | |||
Safety standards
| Meet UL 1950 requirement (Not apply for the mark) | |||
EMC standards
| CISPR22(EN55022), IEC1000-4,2,3,4,5,6,8,99 IEC1000-3-2 |
Model
| S-500-12 | S-500-24 | S-500-36 | S-500-48 |
DC output voltage
| 12V | 24V | 36V | 48V |
Output voltage range(Note:2) | ±1% | ±1% | ±1% | ±1% |
Output current range
| 0-40A | 0-20A | 0-18A | 0-10A |
Wave and noise(Note:3) | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
Inlet stability(Note:4)
| ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note:5)
| ±1% | ±0.5% | ±0.5% | ±0.5% |
Efficiency
| 84% | 86% | 87% | 87% |
Adjustable range for DC voltage | 10~13.2V | 20~26.4V | 24~30V | 41~56V |
Input current
| 7A/115V 3.5A/230V | |||
AC inrush current
| 18A/115V 36A/230V | |||
Leakage current
| <0.35mA/240VAC | |||
Overload protection
| 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
Temperature coefficient | ±0.03%/°c(0~50°c)
| |||
Setup, rise , hold up time | 1.5s,50ms, 20ms
| |||
Vibration
| 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
Withstand voltage | Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC | |||
Working temperature and humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH | |||
Safety standards
| Meet UL 1950 requirement (Not apply for the mark) | |||
EMC standards
| CISPR22(EN55022), IEC1000-4,2,3,4,5,6,8,99 IEC1000-3-2 |
How to choose our power supply?
1. Single output
To determine the power after the output voltage is decided. The power range of our switching power supply is 10w to 1500w, output voltage from 3v to 220v DC. If the requirement is 24v, 1a, we can choose s-25-24, and within cost range, retain 10%-20% of the power allowance.
2. Multi -output
The multi-output power supply has the main and secondary circuit output. The character of main circuit output is better than the secondary. To ensure the load regulation, every circuit has to be with a certain load. If just using the second circuit, the main circuit has to be matched with corresponding dummy load.
3. Before placing an order, please kindly confirm us the details below: Input voltage, Output voltage, Output current, Power.
4. When purchasing the power supply, the customer should know the operation environment, for example, temperature, humidity, altitude, etc.
Questions for our power supply?
1. When using your power supply, find the shell with voltage, is that normal?
A: That is normal. It’s specified in the IEC standard that the leakage current is less than 3.5mA. It’s safe and won’t cause any damage to people.
2. Can use 2-50w power supply as the charging power supply?
A: Yes. But in order to avoid battery feedback, please use a series diode on the output, and pay attention to the diode heat dissipation.
3. Why the power supply fails to boot correctly?
A: This is overload protection taking effect. In this case, please choose the appropriate power or contact the manufacture factory.
How to choose our power supply?
1. Single output
To determine the power after the output voltage is decided. The power range of our switching power supply is 10w to 1500w, output voltage from 3v to 220v DC. If the requirement is 24v, 1a, we can choose s-25-24, and within cost range, retain 10%-20% of the power allowance.
2. Multi -output
The multi-output power supply has the main and secondary circuit output. The character of main circuit output is better than the secondary. To ensure the load regulation, every circuit has to be with a certain load. If just using the second circuit, the main circuit has to be matched with corresponding dummy load.
3. Before placing an order, please kindly confirm us the details below: Input voltage, Output voltage, Output current, Power.
4. When purchasing the power supply, the customer should know the operation environment, for example, temperature, humidity, altitude, etc.
Questions for our power supply?
1. When using your power supply, find the shell with voltage, is that normal?
A: That is normal. It’s specified in the IEC standard that the leakage current is less than 3.5mA. It’s safe and won’t cause any damage to people.
2. Can use 2-50w power supply as the charging power supply?
A: Yes. But in order to avoid battery feedback, please use a series diode on the output, and pay attention to the diode heat dissipation.
3. Why the power supply fails to boot correctly?
A: This is overload protection taking effect. In this case, please choose the appropriate power or contact the manufacture factory.

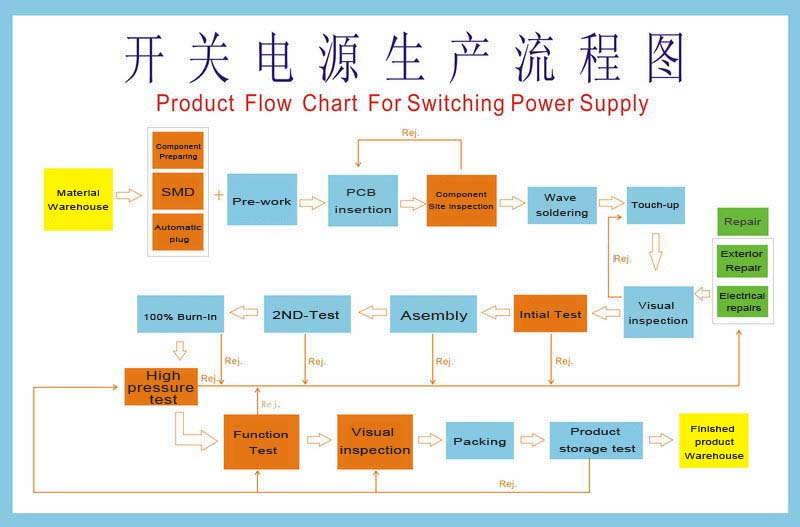

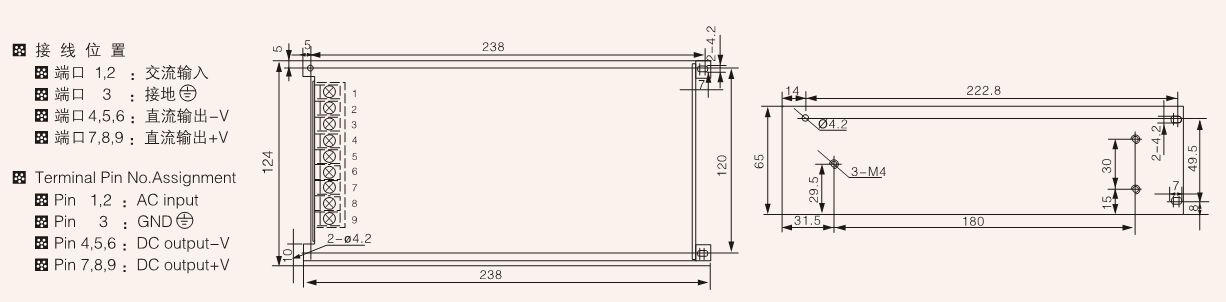

Dimension | 238*124*65mm |
Weight | 1.35kg |
Packing | 44*26*27cm/12pcs/16.2kg |
Dimension | 238*124*65mm |
Weight | 1.35kg |
Packing | 44*26*27cm/12pcs/16.2kg |
