MS-60-5 MS-60-12 MS-60-15 MS-60-24
WINSTON
Specifications
| Model Specification | MS-60-5 | MS-60-12 | MS-60-15 | MS-60-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 12A | 5A | 4A | 2.5A |
| Output current rage | 0-12A | 0-5A | 0-4A | 0-2.5A |
| Wave and noise(Note3) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 60W | 60W | 60W | 60W |
| Efficiency | 80% | 82% | 82% | 84% |
| Adjustable Range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 85~264VAC/ 120~370VDC selected by switch | |||
| AC impulse Current | Cold-start Current 15A/115V 30A/230VAC | |||
| Leakage Current | <0.5mA/240VAC | |||
| Overload Protection | 105%~150% Type,TOLDBACK Reset,Auto Recovery | |||
| Over-voltage Protection | ^^ | |||
| High-temperature Protection | ^^ | |||
| Temperature Coefficient | ±0.03%°C(0~50°C) | |||
| Setup, Rise, Hold up time | 200ms,100ms,30ms | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| Working Temperature &Humidity | -10°C~+60°C,20%~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10%~95RH | |||
| Dimension | 111*78*36mm (L*W*H) | |||
| Packing | 45*35*25cm/80pcs/22kg | |||

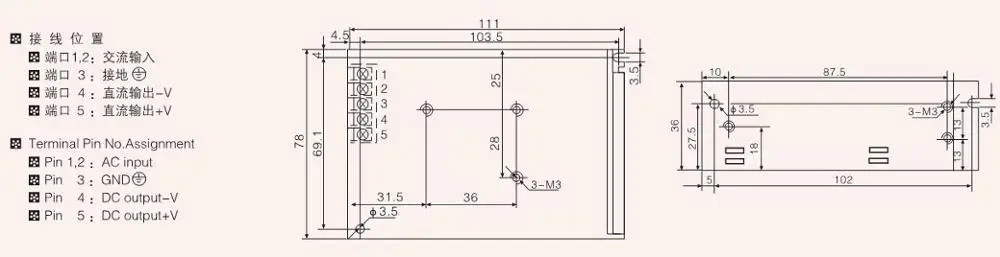

Dimension
Specifications
| Model Specification | MS-60-5 | MS-60-12 | MS-60-15 | MS-60-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 12A | 5A | 4A | 2.5A |
| Output current rage | 0-12A | 0-5A | 0-4A | 0-2.5A |
| Wave and noise(Note3) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 60W | 60W | 60W | 60W |
| Efficiency | 80% | 82% | 82% | 84% |
| Adjustable Range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 85~264VAC/ 120~370VDC selected by switch | |||
| AC impulse Current | Cold-start Current 15A/115V 30A/230VAC | |||
| Leakage Current | <0.5mA/240VAC | |||
| Overload Protection | 105%~150% Type,TOLDBACK Reset,Auto Recovery | |||
| Over-voltage Protection | ^^ | |||
| High-temperature Protection | ^^ | |||
| Temperature Coefficient | ±0.03%°C(0~50°C) | |||
| Setup, Rise, Hold up time | 200ms,100ms,30ms | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| Working Temperature &Humidity | -10°C~+60°C,20%~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10%~95RH | |||
| Dimension | 111*78*36mm (L*W*H) | |||
| Packing | 45*35*25cm/80pcs/22kg | |||
Dimension
