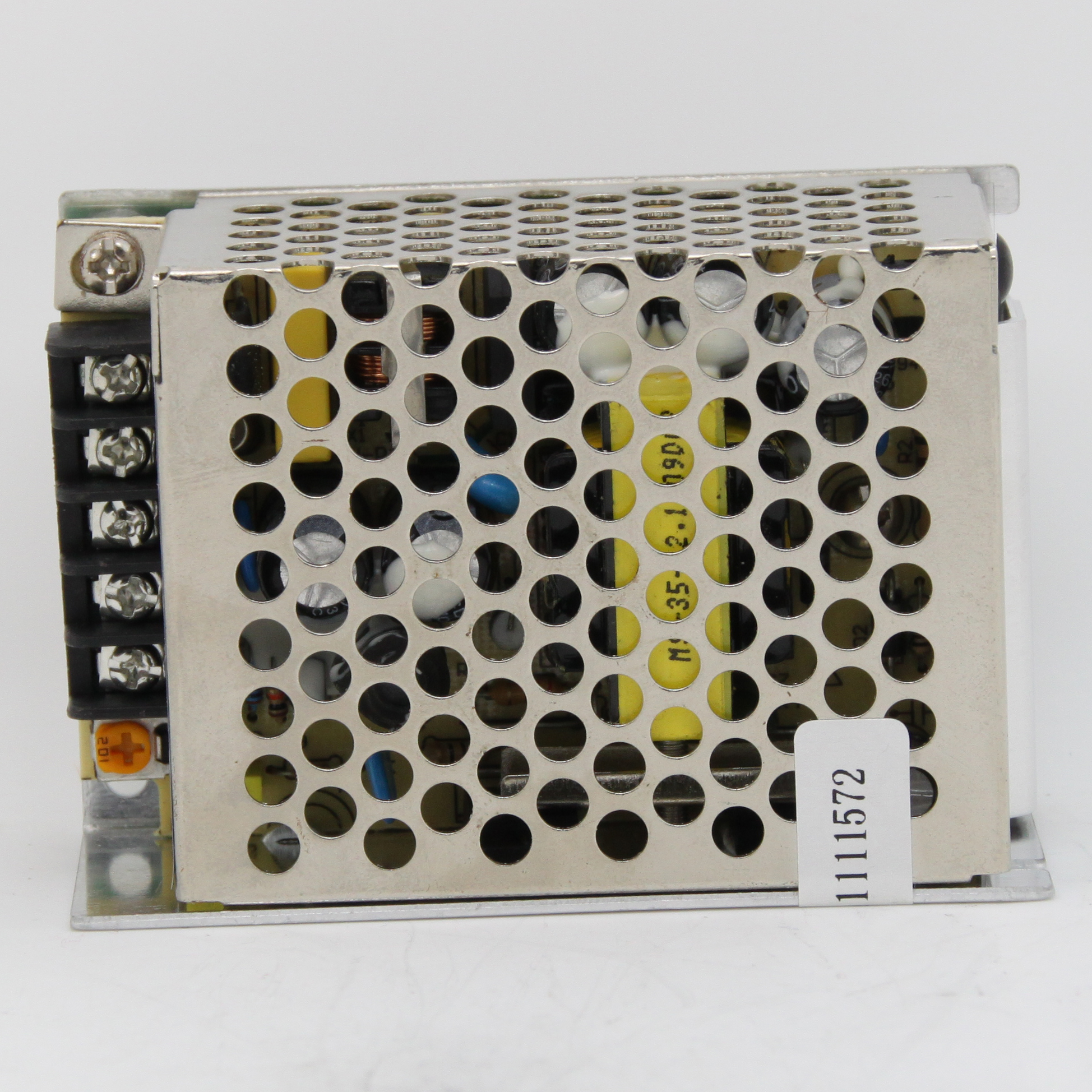

MS-35 electronic switching 35w LED driver

Availability:
Quantity:
  • MS-35

  • Winston

MS-35 electronic switching 35w LED driver

·170~264VAC AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
.2 Year warranty

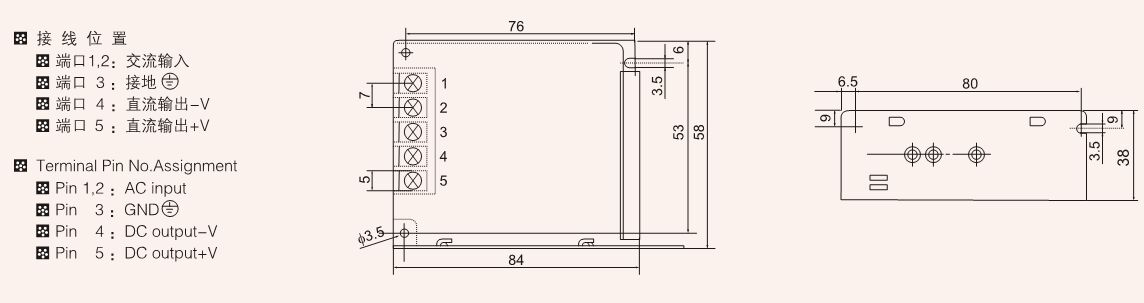

Dimension




       Model       MS-35-5       MS-35-12       MS-35-15       MS-35-24
       output       DC voltage       5V       12V       15V       24V
       Voltage tolerance       ±2%       ±1%       ±1%       ±1%
       Rated current       5A       3A       2.4A       1.5A
       Current range       0~5A       0~3A       0~2.4A       0~1.5A
       Rated power       25W       36W       36W       36W
       Ripple&noise       80mvp-p       120mvp-p       120mvp-p       120mvp-p
       DCvoltage ADJ.range       -9%~+10%       ±10%       ±10%       ±10%
       input       Voltage range       170~264VAC,235~373VDC
       frequency       47~63HZ
       AC current       0.45A/230VAC
       efficiency       76%       78%       78%       80%
       Inrush current       Cold start current 30A/230VAC
       Leakage current       < 1mA/240VAC
       protection       overload       Rated output power115%~135% start over load protection
       protection type:hiccup mode,auto-recovery after fault condition is removed
       over voltage       Rated output power145%~170%
       protection type:hiccup mode,auto-recovery after fault condition is removed
       over temp       When temperature of transistor inner node is over 150℃,Start over temp protection
       protection type:hiccup mode,auto-recovery after temperature become normal
       environment       Working temp,humidity       -10℃~+60℃,20%~90%RH
       Storagetemp,humidity       -20℃~+85℃,10%~95%RH non-condensing
       Withstand vibration       10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
       safety       Withstand voltage       I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
       Isolated resistance       I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
       Fitstandard       Safety standard       Fit UL1012
       EMC standard       EN55022,CLASSA
       others       Dimension       84*58*38mm (L*W*H)
       Weight/packing       0.17kg/80pcs/14.5kg/0.024m³/0.87CUFT
       note       1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
       2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
       3. Tolerance : includes set up tolerance, line regulation and load regulation.
