AC DC 150W MS-150 12V 15V 24V 27V 36V 48V Adjustable Switching Mode Power Supply With 2 years warranty /Power Adapter With CE ROHS

Quantity:
  • MS-150-12 MS-150-15 MS-150-24 MS-150-27 MS-150-36 MS-150-48
  • WINSTON
Technical Data



Universal AC input/Mini-size (AC/DC),
Small volume,low weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage/ automatic recovery
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.

Specifications



Model MS-150-12 MS-150-15 MS-150-24 MS-150-27 MS-150-36 MS-150-48
DC Voltage 12V 15V 24V 27V 36V 48V
Current Range 0~12.5A 0~10A 0~6.5A 0~5.5A 0~4.17A 0~3.13A
Ripple & Noise (max.) 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Efficiency 83% 84% 86% 86% 86% 86%
Voltage Adj. Range ±10% ±10% ±10% ±10% ±10% ±10%
Line wave stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Setup,Rise, Hold up time 200ms, 50ms,20ms/30VAC At Full Load
Input Voltage 90 ~ 132VAC / 180 ~ 264VAC by switch;  254~370VDC 47~63HZ
AC Current 0.5A/115VAC         0.25A/230VAC
Impact Current Cold Start  15A/115VAC         30A/230VAC
OverLoad Protection 105 ~ 150% Cut Off the Output, Recovers Automatically
Working Temperature -10 ~ +60°c (Refer to "Derating Curve" )
Withstand Voltage I/P-O/P:1.5KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH
Dimension 159*99*50mm (L*W*H)
Packing 34*32*24cm/30PCS/16.5Kg

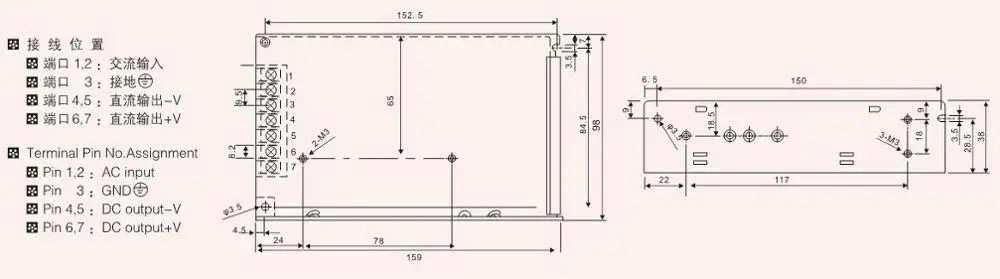

Dimension





Product Description



Packaging & Shipping



FAQ
