MS-50-5 MS-50-12 MS-50-15 MS-50-24
WINSTON
Universal AC input / Full range,Constant DC output
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and overload protection
Compact size,light weight
100% full-load burning test
2 years warranty
| Model | MS-50-5 | MS-50-12 | MS-50-15 | MS-50-24 |
| DC Output Voltage, Current | 5V 0 ~ 10A | 12V 0 ~ 4.2A | 15V 0~3.4A | 24V 0 ~ 2.1A |
| Wave and Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable Range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Inlet Wire Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise, Hold Time | 200ms, 50ms, 20ms/230VAC at full load | |||
| Input Voltage Range | 85 ~ 264VAC 120 ~ 370VDC 47 ~ 63HZ | |||
| Efficiency | 80% | 82% | 82% | 84% |
| AC Current | 0.5A/115VAC 0.25A/230VAC | |||
| Impact Current | Cold Start Current 30A/230VAC | |||
| Overload Protection | 105 ~ 135% Rated Output Power, automatic recovery | |||
| Working Temperture | -10 ~ +50ºC (Refer to output load derating curve) | |||
| Working Humidity | 20 ~ 90% RH non-condensing | |||
| Storage Temperture, Humidity | -20 ~ +85ºC , 10 ~ 95% RH | |||
| Temperture Coeficient | ±0.02%/ºC (0 ~ 50ºC) | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||

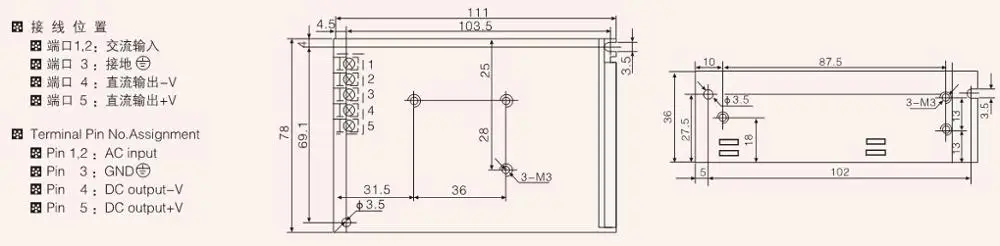

| Dimension | 111*78*36mm (L*W*H) | |||
| Weight | 0.3kg | |||
| Packing | 42*35*25cm/80pcs/22kg | |||
Universal AC input / Full range,Constant DC output
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and overload protection
Compact size,light weight
100% full-load burning test
2 years warranty
| Model | MS-50-5 | MS-50-12 | MS-50-15 | MS-50-24 |
| DC Output Voltage, Current | 5V 0 ~ 10A | 12V 0 ~ 4.2A | 15V 0~3.4A | 24V 0 ~ 2.1A |
| Wave and Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable Range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Inlet Wire Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise, Hold Time | 200ms, 50ms, 20ms/230VAC at full load | |||
| Input Voltage Range | 85 ~ 264VAC 120 ~ 370VDC 47 ~ 63HZ | |||
| Efficiency | 80% | 82% | 82% | 84% |
| AC Current | 0.5A/115VAC 0.25A/230VAC | |||
| Impact Current | Cold Start Current 30A/230VAC | |||
| Overload Protection | 105 ~ 135% Rated Output Power, automatic recovery | |||
| Working Temperture | -10 ~ +50ºC (Refer to output load derating curve) | |||
| Working Humidity | 20 ~ 90% RH non-condensing | |||
| Storage Temperture, Humidity | -20 ~ +85ºC , 10 ~ 95% RH | |||
| Temperture Coeficient | ±0.02%/ºC (0 ~ 50ºC) | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||
| Dimension | 111*78*36mm (L*W*H) | |||
| Weight | 0.3kg | |||
| Packing | 42*35*25cm/80pcs/22kg | |||
