MS-75-5 MS-75-12 MS-75-15 MS-75-24
WINSTON
Feature:
Universal AC input/Mini-size (AC/DC),
Small volume,low weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.
Model Specification | MS-75-5 | MS-75-12 | MS-75-15 | MS-75-24 |
DC output voltage | 5V | 12V | 15V | 24V |
Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% |
Rated output current | 15A | 6.3A | 5A | 3.2A |
Output current rage | 0-12A | 0-5A | 0-4A | 0-2.5A |
Wave and noise(Note3) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
DC Output Power | 75W | 75.6W | 75W | 76.8W |
Efficiency | 78% | 79% | 82% | 83% |
Adjustable Range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
AC Input Voltage Range | 85~264VAC/ 120~370VDC selected by switch | |||
AC impulse Current | Cold-start Current 15A/115V 30A/230VAC | |||
Leakage Current | <0.5mA/240VAC | |||
Overload Protection | 105%~150% Type,TOLDBACK Reset,Auto Recovery | |||
Over-voltage Protection | ^^ | |||
High-temperature Protection | ^^ | |||
Temperature Coefficient | ±0.03%°C(0~50°C) | |||
Setup, Rise, Hold up time | 200ms,100ms,30ms/230VAC | |||
Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
Working Temperature &Humidity | -10°C~+60°C,20%~90%RH | |||
Store temperature and humidity | -20°C~+85°C,10%~95RH | |||
Dimension | 111*78*36mm (L*W*H) | |||
Packing | 45*35*25cm/80pcs/22kg |

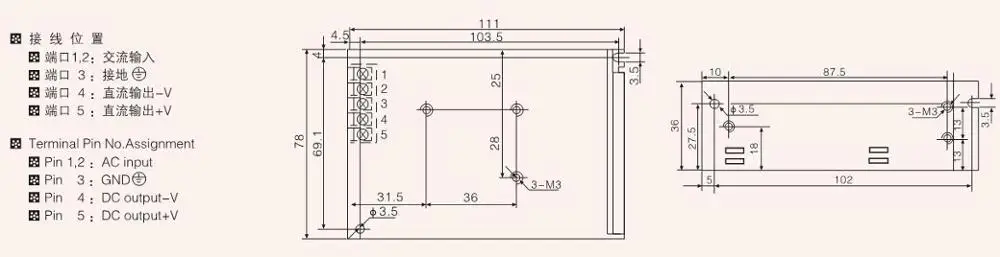

Dimension
